Ohm's law states the relationship between electric current and potential difference. It is one of the most basic and important laws of electric circuits. The law states that the voltage across a conductor is directly proportional to the current flowing through it, provided all physical conditions and temperatures remain constant. Georg Simon Ohm, a German physicist, was the first to verify Ohm's law experimentally. However, Ohm's law fails to explain the behaviour of semiconductors and unilateral devices such as diodes. It can be verified by performing a simple experiment where the current and potential difference are measured for each value of resistance.
| Characteristics | Values |
|---|---|
| Relationship | The relationship between electric current and potential difference. |
| Current | Directly proportional to the voltage applied to it. |
| Voltage | The voltage across a conductor is directly proportional to the current flowing through it. |
| Constant | Only holds true if the provided temperature and other physical factors remain constant. |
| Resistance | The constant of proportionality, R, is called Resistance and has units of ohms, with the symbol Ω. |
| Formula | The formula can be rewritten to calculate the current and resistance respectively. |
| Applicability | Applies to linear materials. |
| Exceptions | Does not apply to semiconductors and unilateral devices such as diodes. |
| Verification | Can be verified experimentally by measuring current and potential difference for each value of resistance. |
Explore related products
What You'll Learn
Ohm's Law and the Drude model
Ohm's law states the relationship between electric current and potential difference. It states that the voltage across a conductor is directly proportional to the current flowing through it, as long as all physical conditions and temperatures remain constant.
Ohm's law can be experimentally verified by performing a simple experiment. In the experiment, the current and potential difference are measured for each value of resistance, while changing the resistance in the circuit with the help of a variable resistance. If the measured potential difference is in accordance with Ohm's law, then the experiment verifies Ohm's law.
The Drude model, also known as Drude theory, is a classical model of electrical conduction that was proposed by Paul Drude in 1900. It provides a scientific explanation for Ohm's law and treats electrons like pinballs bouncing among the ions that make up the structure of the material. In the Drude model, a solid conductor consists of a stationary lattice of atoms (ions) with conduction electrons moving randomly in it. When a voltage is applied across a conductor, it creates an electric field, which accelerates the electrons in the electric field's direction. This causes a drift of electrons, which is the electric current. However, the electrons collide with atoms, causing them to scatter and randomize their motion, thus converting kinetic energy into heat.
The Drude model can be used to compute the typical drift velocity of electrons in a metal. For example, consider a one-meter-long copper wire with a 1V voltage applied to it, resulting in an electric field of 1 V/m. Taking into account the scattering time of electrons in copper at room temperature, we can calculate the drift velocity of electrons using the formula v = μE = eτmE. This calculation demonstrates how the Drude model helps us understand the relationship between voltage, electric field, and drift velocity of electrons, which is fundamental to Ohm's law.
Radar Use by Law Enforcement: Private Driveway Access?
You may want to see also
Explore related products
Ohm's Law and temperature
Ohm's Law, formulated by German physicist Georg Ohm in 1827, states that the electric current through a conductor between two points is directly proportional to the voltage across the two points. Ohm's Law is expressed in a formula that affects key features of electricity, such as current, voltage, and resistance.
Ohm's Law is an empirical relation that accurately describes the conductivity of the vast majority of electrically conductive materials over many orders of magnitude of current. The law is important because it states the relation between the current and the potential difference.
However, Ohm's Law does not apply in cases where there is an inductive load or where the resistance is not constant. For example, when the current flowing isn't directly proportional to the potential difference across the conductor, as in the case of a thermistor, Ohm's Law cannot be applied.
Ohm's Law also fails to explain the behaviour of semiconductors and unilateral devices such as diodes. The law may not give the desired results if physical conditions such as temperature and pressure are not kept constant. The resistivity of materials is usually temperature-dependent, and the conduction of current is related to the Joule heating of the conducting body.
In the 1920s, it was discovered that the current through a practical resistor has statistical fluctuations that depend on temperature, even when voltage and resistance are exactly constant. This fluctuation, known as Johnson-Nyquist noise, implies that measurements of current and voltage taken over short periods will yield ratios of V/I that fluctuate from the value of R implied by the time average.
Ohm's Law can be used to troubleshoot thermal systems. If power and temperature controllers show a fluctuation with the electrical current or heat output, Ohm's Law can be used to validate the static values of circuit components and identify voltage measurements across components.
Common-Law Spouses and Social Security Benefits in Texas
You may want to see also
Explore related products
Ohm's Law and semiconductors
Ohm's law states the relationship between electric current and potential difference. The law states that the voltage across a conductor is directly proportional to the current flowing through it, provided all physical conditions and temperatures remain constant.
Ohm's law can be experimentally verified by performing a simple experiment. The principle of the experiment is that while changing the resistance in the circuit with the help of variable resistance, the current and the potential difference are measured for each value of resistance. If the measured potential difference is in accordance with Ohm's law, then the experiment verifies Ohm's law.
However, it is important to note that Ohm's law fails to explain the behaviour of semiconductors and unilateral devices such as diodes. The law may not yield the desired results if physical conditions such as temperature and pressure are not kept constant. This is because the conduction of current is related to the Joule heating of the conducting body, and the temperature of a conducting body may change when it carries a current.
Semiconductors do not obey Ohm's law due to their specific properties. In a semiconductor, Ohm's law is only obeyed for low electric fields (less than 10^6 V/m). Above this field strength, the current becomes almost independent of the applied field, and hence Ohm's law is not applicable.
The development of quantum mechanics in the 1920s modified the understanding of Ohm's law to some extent. Arnold Sommerfeld applied the quantum Fermi-Dirac distribution of electron energies to the Drude model in 1927, resulting in the free electron model. This model treats electrons like pinballs bouncing among the ions that make up the structure of the material. However, modern theories still show that the average drift velocity of electrons is proportional to the electric field, thus deriving Ohm's law.
How New Tax Laws Affect Medical Expense Deductions
You may want to see also
Explore related products
Verifying Ohm's Law with a simple experiment
Ohm's Law states the relationship between electric current and potential difference. It is one of the most basic and important laws of electric circuits. The law states that the voltage across a conductor is directly proportional to the current flowing through it, provided that all physical conditions and temperatures remain constant.
Ohm's Law can be experimentally verified with a simple experiment. The experiment involves changing the resistance in a circuit with the help of variable resistance, while measuring the current and potential difference for each value of resistance. The principle of the experiment is that if the measured potential difference is in accordance with Ohm's law, then the experiment verifies Ohm's law.

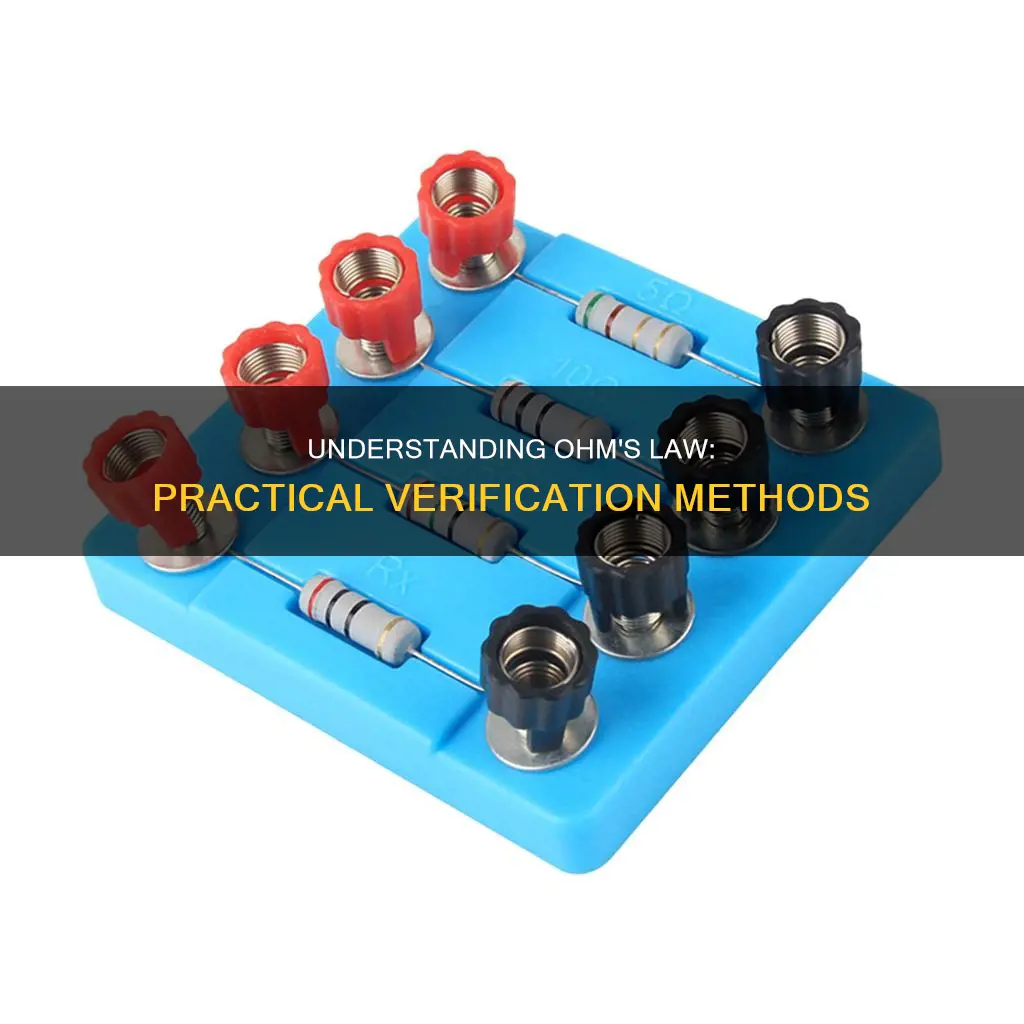

The experimental setup requires the following components:
- A resistor to provide a constant resistance.
- An ammeter to measure the current flowing through the circuit.
- A voltmeter to measure the potential difference across the ends where it is connected.
- A battery to act as a source of electricity.
- A plug key to act as a switch for controlling the flow of the current.
- A rheostat to provide variable resistance.
To begin the experiment, the key is closed to complete the circuit, and the rheostat is adjusted to obtain the minimum reading on the ammeter and voltmeter. The current in the circuit is then gradually increased by moving the sliding terminal of the rheostat. During this process, the current flowing in the circuit and the corresponding value of potential difference across the resistance wire are recorded, obtaining different sets of voltage and current values.
For each set of values, the ratio of voltage to current (V/I) is calculated. It is observed that this ratio remains almost the same for each set of values, indicating that V/I is a constant. Plotting a graph of the current against the potential difference results in a straight line, further verifying that the current is proportional to the potential difference, in accordance with Ohm's Law.
States' Laws: Violating or Protecting the Bill of Rights?
You may want to see also
Explore related products
The hydraulic analogy
In this analogy, electric potential is equivalent to hydraulic head or pressure. Voltage or potential difference is the difference in pressure between two points, usually measured in volts. Electric current is equivalent to the hydraulic volume flow rate, which is the volumetric quantity of flowing water over time, measured in amperes. A unit of electric charge is analogous to a unit volume of water.
The hydraulic ohm analogy is used to calculate flow and pressure variables in fluid flow networks. Hydraulic ohms are the units of hydraulic impedance, which is the ratio of pressure to volume flow rate.
The water-and-pipe analogy can be used to model the three variables of Ohm's Law. A water pump exerts pressure (voltage) to push water around a "circuit" (current) through a restriction (resistance). If the resistance to water flow stays the same and the pump pressure increases, the flow rate must also increase.
