Determining whether data obeys Beer's Law, also known as Beer-Lambert Law, is crucial in analytical chemistry, particularly in spectrophotometry. Beer's Law states that the concentration of a substance in a solution is directly proportional to the absorbance of light at a specific wavelength, provided that the absorbing species does not undergo any chemical changes or interactions. To verify if data adheres to this law, one must plot the absorbance (A) against the concentration (C) of the solution and observe if the resulting graph forms a straight line with a slope that corresponds to the molar absorptivity (ε) and path length (l). Deviations from linearity may indicate factors such as high concentrations, solvent effects, or chemical reactions, which violate the assumptions of Beer's Law. Thus, careful examination of the linear relationship and consideration of experimental conditions are essential to confirm compliance with this fundamental principle.
| Characteristics | Values |
|---|---|
| Linearity | The data should show a linear relationship between absorbance (A) and concentration (C) when plotted on a graph. The plot should yield a straight line passing through the origin (0,0). |
| Proportionality | The absorbance should be directly proportional to the concentration of the substance in solution, as described by Beer's Law equation: A = εbc, where ε is the molar absorptivity, b is the path length, and c is the concentration. |
| Constant Molar Absorptivity (ε) | The molar absorptivity (ε) should remain constant for a given substance at a specific wavelength and solvent. This means that the ratio of absorbance to concentration (A/c) should be constant. |
| Wavelength Dependence | Beer's Law is applicable only at a specific wavelength where the substance absorbs light. The law may not hold at other wavelengths. |
| Concentration Range | The law is valid within a specific concentration range, typically where the absorbance values are between 0.1 and 1.0. Deviations may occur at very high or very low concentrations. |
| Solvent Effect | The solvent used should not absorb significantly at the chosen wavelength, and its effect on the substance's absorption should be minimal. |
| Temperature Stability | The temperature should remain constant during measurements, as changes in temperature can affect the absorption characteristics of the substance. |
| Instrument Linearity | The instrument used for measurement (e.g., spectrophotometer) should be linear in its response over the concentration range of interest. |
| Stray Light | The instrument should be free from stray light, which can cause deviations from Beer's Law at high concentrations. |
| Chemical Stability | The substance in solution should be chemically stable and not undergo any reactions or changes during the measurement period. |
| Path Length (b) | The path length of the cuvette or cell used for measurement should be constant and known, as it directly affects the absorbance values. |
Explore related products
What You'll Learn
- Understanding Beer's Law: Definition, linear relationship between concentration and absorbance, and its assumptions
- Checking Linearity: Plotting absorbance vs. concentration, verifying a straight line with zero intercept
- Assessing Stray Light: Ensuring minimal scatter or instrument noise affects absorbance readings
- Concentration Range: Confirming data falls within the linear dynamic range of the instrument
- Solvent Blank: Subtracting solvent absorbance to ensure accurate sample absorbance measurements
Understanding Beer's Law: Definition, linear relationship between concentration and absorbance, and its assumptions

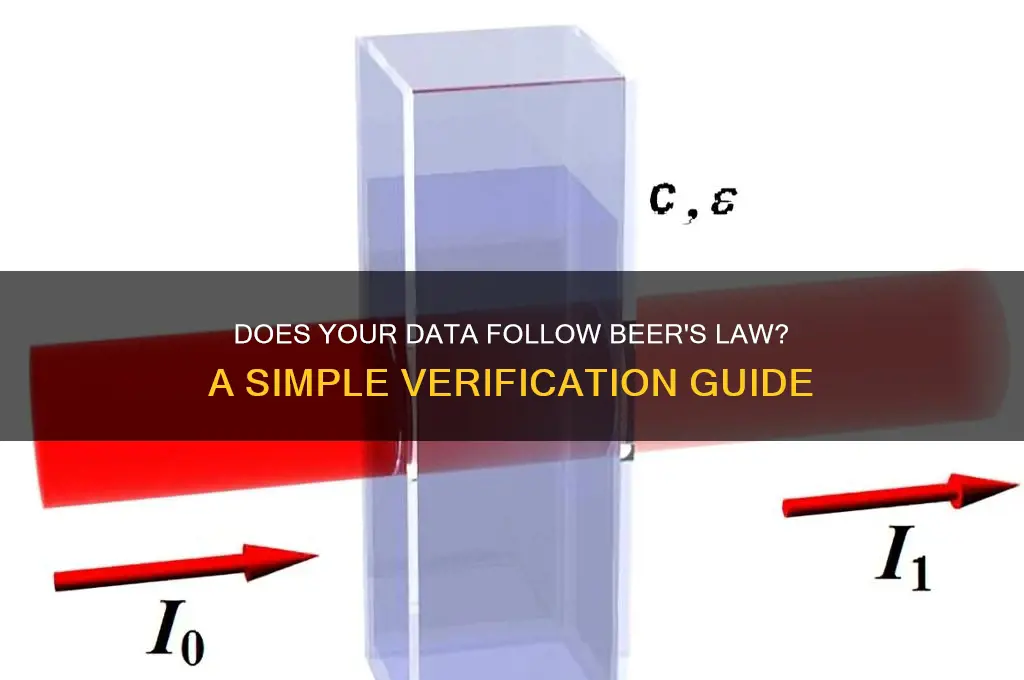

Beer's Law, also known as Beer-Lambert Law, is a fundamental principle in spectroscopy that describes the relationship between the concentration of a substance in a solution and the amount of light it absorbs. This law states that the absorbance (A) of a substance is directly proportional to its concentration (c) and the path length (l) of the light through the solution. Mathematically, it is expressed as A = εcl, where ε (epsilon) is the molar absorptivity, a constant unique to each substance at a specific wavelength. To determine if your data obeys Beer's Law, you must first understand this linear relationship and the assumptions underlying it.
Analyzing the Linear Relationship
The core of Beer's Law is the linearity between absorbance and concentration. When plotting absorbance against concentration for a series of standard solutions, the data should form a straight line with a slope equal to εl. For example, if you prepare solutions of a dye with concentrations ranging from 0.001 M to 0.01 M and measure their absorbance at 500 nm, the resulting graph should show a linear trend. Deviations from linearity, such as curvature or leveling off, indicate that Beer's Law is not obeyed. Practical tips include ensuring consistent path length (e.g., using a 1 cm cuvette) and measuring absorbance at a wavelength where the substance absorbs strongly but does not saturate the detector.
Key Assumptions to Consider
Beer's Law relies on several critical assumptions. First, the absorbing species must not undergo any chemical changes, such as dimerization or dissociation, within the concentration range studied. For instance, high concentrations of certain dyes may cause self-association, violating this assumption. Second, the solvent and other components in the solution must not contribute to absorbance at the chosen wavelength. Third, the incident light must be monochromatic, as polychromatic light can lead to inaccurate measurements. Lastly, the law assumes that the molecules do not interact with each other or with the solvent in a way that affects their absorption properties.
Practical Steps to Verify Compliance
To confirm if your data obeys Beer's Law, follow these steps: Prepare a series of standard solutions with known concentrations, measure their absorbance at a fixed wavelength, and plot the data. If the plot is linear (R² close to 1), the data likely obeys the law. For example, a solution of copper sulfate in water at concentrations from 0.0001 M to 0.001 M should yield a straight line when measured at 635 nm. Cautions include avoiding concentrations that are too high, as they can lead to deviations, and ensuring the instrument is properly calibrated. Additionally, use a blank solution (solvent only) to zero the absorbance readings.
Real-World Implications and Takeaways
Understanding whether your data obeys Beer's Law is crucial for quantitative analysis in fields like chemistry, biology, and environmental science. For instance, in water quality testing, Beer's Law can be used to determine the concentration of pollutants like nitrates by measuring their absorbance. However, real-world samples often contain multiple absorbing species, complicating the analysis. In such cases, additional techniques like high-performance liquid chromatography (HPLC) may be necessary. By recognizing the limitations and assumptions of Beer's Law, you can apply it effectively and interpret your results with confidence.
Red Flag Laws: Unveiling Fatal Outcomes and Public Safety Impacts
You may want to see also
Explore related products
Checking Linearity: Plotting absorbance vs. concentration, verifying a straight line with zero intercept
A fundamental step in verifying Beer's Law compliance is plotting absorbance against concentration. This graphical representation serves as a visual test of linearity, a core requirement for the law's applicability. The ideal scenario is a straight line with a zero y-intercept, indicating a direct proportionality between absorbance and concentration. Deviations from this ideal suggest potential violations of Beer's Law assumptions, necessitating further investigation.
Constructing the Plot:
Prepare a series of standard solutions with known concentrations of the analyte. Measure the absorbance of each solution at a specific wavelength using a spectrophotometer. Record the concentration and corresponding absorbance values for each standard. Plot these data points on a graph with absorbance on the y-axis and concentration on the x-axis.
Analyzing the Plot:
Examine the plotted points for linearity. A straight line indicates adherence to Beer's Law within the concentration range tested. The slope of this line represents the molar absorptivity (ε), a constant unique to the analyte-solvent combination at the chosen wavelength. Crucially, the line should intersect the y-axis at or very close to zero. A non-zero intercept suggests the presence of interfering factors, such as scattering, impurities, or deviations from ideal solution behavior.
Practical Considerations:
For accurate results, ensure the concentration range spans at least two orders of magnitude. This range allows for a more robust assessment of linearity. Use a solvent blank to zero the spectrophotometer before measuring standards. Consider the instrument's limitations and potential sources of error, such as stray light or detector noise, which can affect absorbance readings.
Beyond the Plot:
While a linear plot with a zero intercept is strong evidence for Beer's Law compliance, it's not definitive proof. Other factors, like temperature, solvent effects, and molecular interactions, can influence absorbance. Therefore, additional experiments, such as varying solvent composition or temperature, may be necessary to fully validate Beer's Law applicability for a specific analyte-solvent system.
Do Governors Write Laws? Understanding Their Role in Legislation
You may want to see also
Explore related products
Assessing Stray Light: Ensuring minimal scatter or instrument noise affects absorbance readings
Stray light in spectrophotometric measurements can subtly distort absorbance readings, undermining the linearity expected from Beer's Law. Even low levels of scattered light or instrument noise can introduce deviations, particularly at high concentrations or in samples with strong absorptivity. To assess and mitigate these effects, begin by examining the baseline stability of your instrument. A stable baseline, free from fluctuations, is the first indicator that stray light is not interfering. Use a blank sample (solvent only) to establish this baseline, ensuring the absorbance reads as close to zero as possible across the wavelength range. If the baseline drifts or shows spikes, recalibrate the instrument or inspect the optical components for contamination.
Next, perform a wavelength accuracy check to ensure the instrument is not misreporting wavelengths, which can falsely elevate absorbance readings. Use a certified holmium oxide or didymium glass filter to verify the accuracy of your spectrophotometer’s wavelength scale. Deviations greater than ±1 nm can indicate misalignment or degradation of the diffraction grating, both of which increase stray light. If discrepancies are detected, consult the manufacturer’s guidelines for realignment or component replacement. Regular maintenance, such as cleaning the optical surfaces with lint-free wipes and solvent, can prevent buildup that scatters light.
A practical test for stray light involves measuring the absorbance of a highly concentrated solution and comparing it to the theoretical value predicted by Beer's Law. For example, prepare a 0.1 M solution of potassium dichromate in 0.5 M sulfuric acid, which absorbs strongly at 440 nm. If the measured absorbance exceeds the calculated value by more than 5%, stray light is likely contributing to the discrepancy. To isolate the effect, dilute the solution by a factor of 10 and remeasure. If the absorbance decreases disproportionately, stray light is confirmed. In such cases, consider using a double-beam spectrophotometer, which inherently compensates for stray light by measuring the sample and reference simultaneously.
Finally, adopt procedural safeguards to minimize scatter. Use quartz or high-quality plastic cuvettes with smooth surfaces to reduce internal reflections. Ensure the cuvette is properly aligned in the sample holder, as misalignment can direct scattered light into the detector. For samples prone to scattering, such as colloids or suspensions, centrifuge or filter them before measurement. If working with highly absorbing samples, dilute them to maintain absorbance values below 1.0, where stray light effects are less pronounced. By systematically addressing these sources of error, you can ensure that deviations from Beer's Law are attributable to sample properties, not instrument artifacts.
The Supreme Court's Pivotal Role in Shaping U.S. Law
You may want to see also
Explore related products
Concentration Range: Confirming data falls within the linear dynamic range of the instrument
To confirm that your data obeys Beer's Law, one critical step is ensuring that the analyte concentrations fall within the linear dynamic range of your instrument. This range is where the instrument responds linearly to changes in concentration, producing accurate and reliable absorbance readings. Operating outside this range can lead to deviations from linearity, compromising the validity of your results. For instance, if you’re using a UV-Vis spectrophotometer, the linear dynamic range for many analytes typically spans from 0.1 to 100 µg/mL, though this varies depending on the instrument and the specific compound being measured.
An instructive approach to verifying the concentration range involves preparing a series of standard solutions with known concentrations that span the expected range of your samples. Start with a stock solution and dilute it incrementally, ensuring each concentration differs by a factor of 2 or 3. Measure the absorbance of each standard and plot it against concentration. If the data points form a straight line with a correlation coefficient (R²) close to 1, your concentrations are within the linear dynamic range. For example, if you’re analyzing a dye with a molar absorptivity of 10,000 L/(mol·cm), a 1 cm cuvette, and a desired absorbance range of 0.2 to 0.8, your concentrations should fall between 2 and 8 µM.
A comparative analysis highlights the consequences of ignoring this step. Data collected outside the linear range often exhibit curvature or saturation, leading to inaccurate calculations of concentration. For instance, at very high concentrations, the instrument may reach its maximum absorbance limit, causing the detector to saturate and produce flat or distorted readings. Conversely, at very low concentrations, the signal-to-noise ratio becomes poor, introducing random errors. By comparing the absorbance values of your standards to the instrument’s specifications, you can identify whether your samples are within the optimal range.
A persuasive argument for diligence in this step is the potential for costly errors in real-world applications. In pharmaceutical analysis, for example, failing to confirm the concentration range can lead to incorrect drug formulations, compromising patient safety. Similarly, in environmental monitoring, inaccurate measurements of pollutants could result in regulatory non-compliance or ecological harm. By investing time in verifying the linear dynamic range, you ensure the integrity of your data and the reliability of your conclusions.
Finally, a descriptive approach emphasizes the practical steps to achieve this confirmation. Begin by consulting the instrument’s manual or manufacturer specifications to identify its linear dynamic range for your specific analyte. Next, design your standard curve to cover at least 70% of this range, ensuring both ends are well-represented. Use high-purity solvents and accurate volumetric glassware to prepare standards, minimizing sources of error. After plotting the data, visually inspect the curve for linearity and calculate the R² value. If deviations are observed, adjust your sample concentrations through dilution or concentration to bring them within the linear range before proceeding with your analysis. This meticulous approach ensures your data aligns with Beer's Law, providing a solid foundation for quantitative analysis.
Understanding Lemon Law Repair Attempts: How Many Are Enough?
You may want to see also
Explore related products
Solvent Blank: Subtracting solvent absorbance to ensure accurate sample absorbance measurements
In spectroscopy, the solvent blank is a critical yet often overlooked step in ensuring the accuracy of absorbance measurements. When analyzing a sample dissolved in a solvent, the solvent itself can contribute to the overall absorbance, leading to skewed results. This solvent absorbance must be accounted for to isolate the true absorbance of the analyte. By measuring the absorbance of a solvent blank—a sample containing only the solvent—and subtracting this value from the sample’s absorbance, you correct for the solvent’s interference. This step is particularly vital when working with solvents like acetone or methanol, which exhibit non-negligible absorbance in the UV-Vis region.
Consider a practical example: suppose you’re measuring the absorbance of a 0.001 M solution of a dye in ethanol at 500 nm. Ethanol itself has an absorbance of 0.05 at this wavelength. If you neglect to subtract the solvent blank, your recorded absorbance for the dye solution might be 0.35. However, the true absorbance of the dye is only 0.30 (0.35 – 0.05). This discrepancy can lead to errors in concentration calculations, especially when applying Beer’s Law, which assumes the measured absorbance is solely due to the analyte. Always measure the solvent blank under identical conditions (same cuvette, wavelength, and instrument settings) as the sample to ensure consistency.
Subtracting the solvent blank is not just a technicality—it’s a safeguard against systematic errors. For instance, in pharmaceutical analysis, where precise quantification of active ingredients is critical, failing to account for solvent absorbance can result in inaccurate dosage determinations. A 10% error in absorbance due to uncorrected solvent interference could translate to a 10% error in drug concentration, potentially compromising efficacy or safety. Similarly, in environmental monitoring, where trace contaminants are analyzed in water or organic solvents, solvent blank subtraction ensures that reported pollutant levels are not artificially inflated.
To implement this technique effectively, follow these steps: first, prepare the solvent blank by filling a cuvette with the same solvent used to dissolve your sample. Measure its absorbance at the desired wavelength, ensuring the instrument is properly zeroed. Next, measure the absorbance of your sample solution. Finally, subtract the solvent blank’s absorbance from the sample’s absorbance to obtain the corrected value. For instance, if your sample’s absorbance is 0.60 and the solvent blank’s is 0.10, the corrected absorbance is 0.50. This value can then be used confidently in Beer’s Law calculations (A = εbc), where ε is molar absorptivity, b is path length, and c is concentration.
While solvent blank subtraction is straightforward, it’s not without pitfalls. One common mistake is using a different cuvette or instrument setting for the solvent blank and sample, introducing variability. Another is neglecting to measure the solvent blank altogether, especially when working with seemingly “inert” solvents like water. Even ultrapure water can contribute to absorbance at certain wavelengths, particularly in the far UV region. Always prioritize consistency and thoroughness in your measurements to ensure the data aligns with Beer’s Law expectations. By mastering this technique, you enhance the reliability of your spectroscopic analyses, paving the way for accurate and reproducible results.
