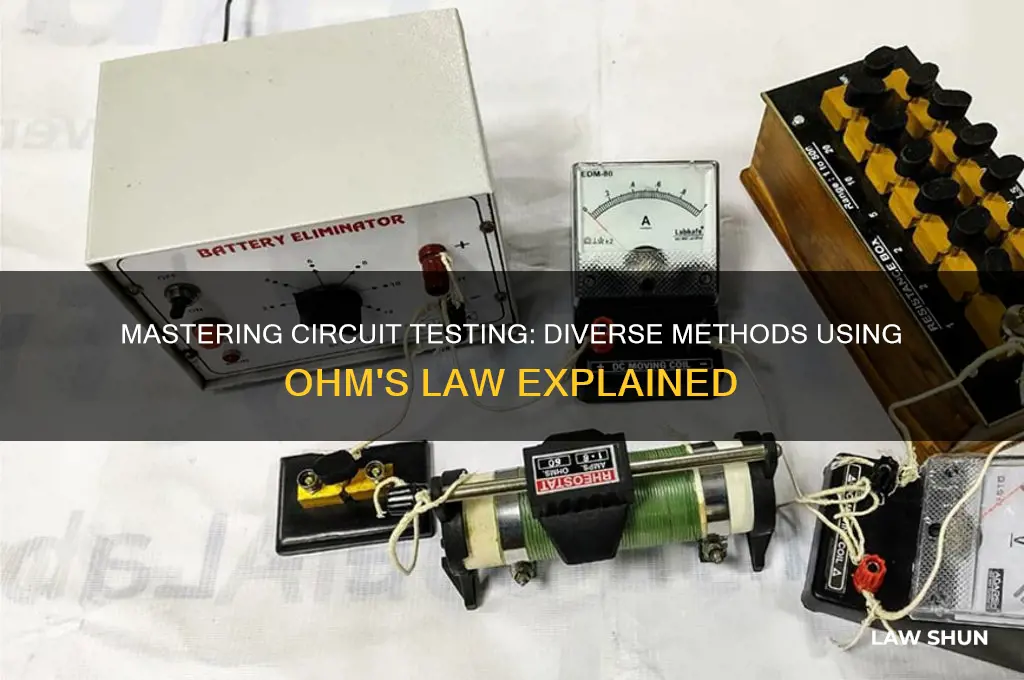

Ohm's Law, a fundamental principle in electrical engineering, provides a powerful tool for analyzing and troubleshooting circuits. By understanding the relationship between voltage (V), current (I), and resistance (R), engineers and technicians can employ various methods to check circuit functionality. This exploration delves into the diverse ways Ohm's Law can be applied to verify circuit operation, highlighting techniques such as voltage and current measurements, resistance calculations, and component testing, ultimately empowering individuals to diagnose and resolve circuit issues effectively.
| Characteristics | Values |
|---|---|
| Voltage (V) Measurement | Measure voltage across components using a voltmeter. |
| Current (I) Measurement | Measure current flowing through the circuit using an ammeter. |
| Resistance (R) Calculation | Calculate resistance using Ohm's Law: ( R = \frac ). |
| Resistance (R) Measurement | Directly measure resistance using a multimeter in ohmmeter mode. |
| Voltage Drop Verification | Check voltage drops across series components to ensure ( V = IR ). |
| Total Resistance in Series | Sum individual resistances: ( R_ = R_1 + R_2 + ... + R_n ). |
| Total Resistance in Parallel | Use ( \frac{1}{R_} = \frac{1} + \frac{1} + ... + \frac{1} ). |
| Power Dissipation Check | Calculate power using ( P = VI ) or ( P = I^2R ). |
| Continuity Testing | Use a multimeter to check for unbroken circuits (low resistance). |
| Open Circuit Detection | Identify infinite resistance or no current flow. |
| Short Circuit Detection | Detect zero resistance or excessive current flow. |
| Component Polarity Check | Verify polarity of components like diodes or capacitors. |
| Temperature Effects | Account for resistance changes with temperature in precision circuits. |
| Kirchhoff's Laws Validation | Verify Kirchhoff's Voltage and Current Laws alongside Ohm's Law. |
| Load Testing | Measure voltage and current under different load conditions. |
| Frequency Response | Analyze circuits with capacitors/inductors using Ohm's Law principles. |
Explore related products
What You'll Learn
- Using Voltage and Current: Measure voltage across and current through the component to calculate resistance
- Using Voltage and Resistance: Apply known voltage and measure current to verify resistance with Ohm’s Law
- Using Current and Resistance: Measure current through and resistance of the component to find voltage
- Series Circuit Check: Calculate total resistance and verify voltage drops across each component
- Parallel Circuit Check: Measure individual branch currents and voltages to confirm Ohm’s Law compliance
Using Voltage and Current: Measure voltage across and current through the component to calculate resistance
One of the most direct applications of Ohm's Law is using voltage and current measurements to determine resistance. This method is particularly useful when you have access to a multimeter and need to verify the resistance of a specific component in a circuit. By measuring the voltage drop across the component and the current flowing through it, you can apply Ohm's Law (R = V/I) to calculate resistance accurately. This approach is especially valuable in troubleshooting, as it allows you to isolate and test individual components without needing to remove them from the circuit.
To implement this method, follow these steps: First, ensure the circuit is powered off to avoid damage or inaccurate readings. Next, set your multimeter to measure voltage and connect it in parallel across the component to determine the voltage drop (V). Then, switch the multimeter to measure current and connect it in series with the component to determine the current (I) flowing through it. Once you have both values, divide the voltage by the current to obtain the resistance (R). For example, if you measure 6 volts across a resistor and 0.3 amperes flowing through it, the resistance is 20 ohms (6 V / 0.3 A = 20 Ω). This straightforward process requires minimal equipment and provides precise results.
While this method is effective, it’s important to be mindful of potential pitfalls. Ensure your multimeter is set to the correct ranges for voltage and current to avoid overloading or damaging the device. Additionally, be cautious when working with high-voltage circuits, as improper handling can pose safety risks. For low-resistance components, such as wires or connectors, small measurement errors in voltage or current can lead to significant inaccuracies in calculated resistance. Always double-check your connections and measurements to ensure reliability.
In comparison to other methods, such as using a dedicated ohmmeter or substituting known components, this approach offers the advantage of in-circuit testing. It allows you to diagnose issues without disrupting the circuit, which is particularly useful in complex systems. However, it may not be as convenient for quick checks as a standalone ohmmeter, which provides resistance readings directly. The choice of method depends on the specific scenario and the tools available, but using voltage and current measurements remains a versatile and widely applicable technique.
In conclusion, measuring voltage and current to calculate resistance is a practical and insightful way to apply Ohm's Law. It combines simplicity with precision, making it an essential skill for anyone working with circuits. By understanding the steps, precautions, and advantages of this method, you can effectively troubleshoot and verify components in a variety of electrical systems. Whether you're a hobbyist or a professional, mastering this technique will enhance your ability to diagnose and resolve circuit issues efficiently.
Understanding Shall Issue Law: Definition, Impact, and Legal Implications
You may want to see also
Explore related products
Using Voltage and Resistance: Apply known voltage and measure current to verify resistance with Ohm’s Law
One of the most straightforward methods to verify resistance in a circuit is by applying a known voltage and measuring the resulting current, then using Ohm's Law to calculate resistance. This approach is particularly useful when you have a stable voltage source and a reliable ammeter. For instance, if you apply a 9V battery to a circuit and measure a current of 0.5 amperes, Ohm's Law (V = I * R) allows you to calculate the resistance as 18 ohms (9V / 0.5A). This method is direct and minimizes variables, making it ideal for quick diagnostics or educational demonstrations.
However, accuracy depends on the precision of your tools. A digital multimeter (DMM) with a resolution of 0.1 ohms or better is recommended for reliable results. Ensure the voltage source is stable; fluctuations can skew measurements. For example, using a regulated power supply instead of a battery reduces variability. Additionally, always connect the ammeter in series with the circuit to measure current accurately. This setup avoids parallel pathways that could distort readings, a common mistake in amateur setups.
A practical tip is to start with low voltages (e.g., 3V or 5V) to avoid overheating components, especially in sensitive circuits. Gradually increase voltage while monitoring current to observe linearity in resistance, which confirms Ohm's Law applicability. If the relationship between voltage and current isn't linear, the component may not be purely resistive, indicating a need for further investigation. This method is particularly effective for testing resistors, LEDs, or simple circuits where resistance is a critical parameter.
Despite its simplicity, this approach has limitations. It assumes the circuit behaves ideally, which isn't always true in real-world scenarios. For instance, transistors or diodes may exhibit non-linear behavior, rendering Ohm's Law insufficient. Always cross-verify results with other methods, such as direct resistance measurement using a multimeter in ohmmeter mode, to ensure accuracy. Combining techniques provides a more comprehensive understanding of circuit behavior.
In conclusion, applying a known voltage and measuring current to verify resistance using Ohm's Law is a powerful yet simple technique. It’s best suited for linear, resistive circuits and educational purposes. By focusing on precision tools, stable voltage sources, and cautious application, you can reliably diagnose circuit issues or validate theoretical concepts. Just remember: this method is one tool in your arsenal, not a standalone solution for complex circuits.
Abraham's Era: Before the Law of Moses Was Given
You may want to see also
Explore related products
Using Current and Resistance: Measure current through and resistance of the component to find voltage
One of the most straightforward applications of Ohm's Law involves measuring current and resistance to determine voltage across a component. This method is particularly useful when you have a multimeter capable of measuring both current and resistance but lack a direct voltage measurement function. By leveraging the relationship \( V = I \times R \), you can calculate the voltage drop across a resistor, LED, or other component with precision. Start by placing your multimeter in series with the component to measure current, then switch to a parallel configuration to measure resistance. This two-step process transforms your multimeter into a versatile tool for circuit diagnostics.
Consider a practical example: suppose you’re troubleshooting a dim LED in a circuit. You measure the current through the LED and find it to be 0.02 amperes (20 milliamperes). Next, you measure the resistance of the LED and obtain a value of 100 ohms. Applying Ohm's Law, you calculate the voltage drop as \( V = 0.02 \, \text{A} \times 100 \, \Omega = 2 \, \text{V} \). If the circuit is supposed to supply 3V, this indicates a potential issue—either the LED is faulty, or there’s an unexpected voltage drop elsewhere in the circuit. This method not only identifies the problem but also quantifies it, guiding your next steps in repair or redesign.
While this approach is effective, it’s crucial to observe safety precautions. Always ensure the circuit is de-energized before measuring resistance, as most multimeters apply a small test voltage that can damage active components or produce inaccurate readings. Additionally, be mindful of the current range on your multimeter; exceeding the maximum rating can blow a fuse or damage the device. For low-resistance components, such as thick wires or traces, this method may yield negligible voltage drops, making it less informative. In such cases, consider alternative methods like direct voltage measurement or using a specialized tool.
The beauty of this technique lies in its simplicity and adaptability. It’s especially valuable in educational settings, where students can directly observe the relationship between current, resistance, and voltage. For instance, a classroom experiment might involve varying the resistance in a series circuit while measuring current and calculating voltage, reinforcing the principles of Ohm's Law. In professional settings, this method serves as a quick diagnostic tool for identifying voltage drops across specific components, helping engineers pinpoint inefficiencies or faults in complex circuits.
In conclusion, using current and resistance measurements to find voltage is a powerful yet often overlooked application of Ohm's Law. It requires minimal equipment, provides actionable data, and fosters a deeper understanding of circuit behavior. By mastering this technique, you gain a versatile tool for troubleshooting, experimentation, and design validation. Whether you’re a hobbyist, student, or professional, this method deserves a place in your circuit analysis toolkit.
The Great Law of Peace: Uniting Nations, Ensuring Stability, and Fostering Harmony
You may want to see also
Explore related products
Series Circuit Check: Calculate total resistance and verify voltage drops across each component
In a series circuit, components are connected end-to-end, forming a single path for current flow. This arrangement simplifies resistance calculations because the total resistance (R_total) is the sum of individual resistances (R_total = R1 + R2 + R3 + ...). Ohm’s Law (V = IR) becomes a powerful tool here, allowing you to verify voltage drops across each component. By measuring the total voltage supplied and the current flowing through the circuit, you can calculate expected voltage drops and compare them to measured values, ensuring your circuit behaves as predicted.
To begin, measure the total voltage (V_total) across the entire circuit and the current (I) flowing through it. Using Ohm’s Law, calculate the total resistance: R_total = V_total / I. Next, sum the individual resistances provided by each component. If the calculated R_total matches the sum of individual resistances, your circuit is consistent. Discrepancies may indicate faulty components, incorrect measurements, or hidden resistances, such as those from wires or connections.
Now, verify voltage drops across each component. For a resistor R1 in a series circuit, the voltage drop (V1) is given by V1 = I * R1. Repeat this calculation for each component, ensuring the sum of all voltage drops equals V_total. For example, if V_total is 12V and the circuit has three resistors with voltage drops of 4V, 5V, and 3V, the total (12V) matches V_total, confirming accuracy. If not, recheck measurements or inspect components for issues.
Practical tips: Use a digital multimeter for precise voltage and current measurements. Ensure the circuit is powered off when measuring resistances to avoid damaging the meter. For components with unknown resistance, measure them individually before connecting them in series. This method not only validates circuit behavior but also helps diagnose problems, making it an essential skill for troubleshooting and design verification. By mastering this technique, you’ll gain confidence in analyzing and optimizing series circuits.
Understanding Law Student Registration Applications: A Comprehensive Guide
You may want to see also
Explore related products
Parallel Circuit Check: Measure individual branch currents and voltages to confirm Ohm’s Law compliance
In parallel circuits, each branch operates independently, yet their collective behavior must still adhere to Ohm’s Law (*V = IR*). To verify compliance, measure the current and voltage across each branch individually. Use a digital multimeter (DMM) set to the appropriate range for accuracy. Start by disconnecting the power source, then connect the DMM in series to measure current in one branch while simultaneously measuring voltage across the same branch in parallel. Record both values and calculate resistance (*R = V/I*) for comparison against the expected value based on component specifications. This method isolates branch-specific performance, ensuring no single component skews overall circuit analysis.
Analyzing these measurements reveals insights into component health and circuit integrity. For instance, if one branch shows significantly higher resistance than calculated, it may indicate a faulty resistor or poor connection. Conversely, lower-than-expected resistance could signal a short circuit. Compare each branch’s resistance to the theoretical value derived from component ratings (e.g., a 100Ω resistor should yield *R ≈ 100Ω* when *V* and *I* are correctly measured). Discrepancies exceeding 5–10% warrant further investigation, as they may compromise circuit efficiency or safety. This granular approach ensures that issues in one branch don’t mask problems in others.
Practical tips enhance the effectiveness of this check. Always ensure the circuit is de-energized before connecting the DMM to avoid damage or injury. Use the DMM’s auto-ranging feature if unsure of the expected values, but manually set ranges for precision when known. For high-current branches (e.g., >1A), employ a clamp meter to measure current without breaking the circuit. When measuring voltage, connect the DMM across the component directly, not across the entire branch, to isolate the component’s contribution. Document measurements for each branch systematically, labeling data with component identifiers for clarity.
A comparative analysis of branch measurements can highlight imbalances in parallel circuits. For example, if one branch draws significantly more current than others, it may indicate an overloaded component or mismatched resistances. Such imbalances can lead to uneven power distribution, reducing circuit efficiency. By systematically checking each branch, you not only confirm Ohm’s Law compliance but also diagnose potential issues before they escalate. This method is particularly valuable in complex circuits with multiple branches, where individual component behavior directly impacts overall performance.
In conclusion, measuring individual branch currents and voltages in a parallel circuit provides a precise way to validate Ohm’s Law compliance while diagnosing component-level issues. This approach combines theoretical principles with practical measurement techniques, offering both accuracy and actionable insights. By isolating each branch’s performance, you ensure the circuit operates as intended, safeguarding functionality and safety. Whether troubleshooting or verifying design, this method is an indispensable tool in any circuit analysis toolkit.
Wisconsin's Environmental Laws: A Shift in Policy and Impact
You may want to see also
Frequently asked questions
Ohm's Law states that the current (I) through a conductor between two points is directly proportional to the voltage (V) across the two points, and inversely proportional to the resistance (R) between them (I = V/R). It can be used to check a circuit by measuring voltage and resistance to verify if the current matches the expected value, ensuring the circuit is functioning correctly.
Ohm's Law can be applied in three primary ways to test a circuit: 1) Measuring voltage and resistance to calculate current (I = V/R), 2) Measuring current and resistance to calculate voltage (V = I * R), and 3) Measuring current and voltage to calculate resistance (R = V/I).
Yes, Ohm's Law can help identify faults in a circuit. For example, if the measured resistance is higher than expected, it may indicate a broken connection or faulty component. If the current is lower than calculated, it could suggest a high-resistance issue. By comparing measured values to expected values using Ohm's Law, you can diagnose and troubleshoot circuit problems.
