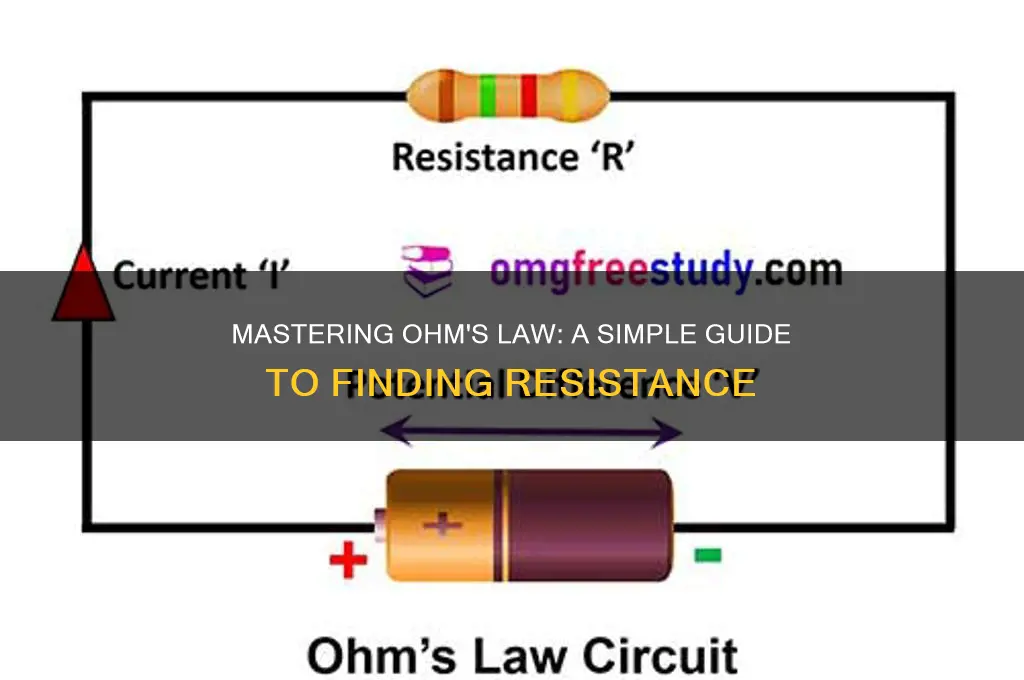

Ohm's Law is a fundamental principle in electrical circuits that relates current (I), voltage (V), and resistance (R) through the equation V = IR. When rearranged to solve for resistance (R), it becomes R = V/I. To find resistance using Ohm's Law, you need to measure the voltage across a component and the current flowing through it. By dividing the voltage by the current, you can calculate the resistance. This method is essential for analyzing and designing circuits, ensuring components operate within safe and efficient parameters. Understanding how to apply Ohm's Law to find resistance is a critical skill for anyone working with electrical systems.
Explore related products
What You'll Learn
Understanding Ohm's Law Basics
Ohm's Law is a fundamental principle in electrical circuits, but understanding its basics requires more than memorizing the formula \( V = IR \). At its core, Ohm's Law describes the relationship between voltage (V), current (I), and resistance (R) in a circuit. To find \( R \) or \( T \) (total resistance), you must first grasp how these variables interact. For instance, if you have a 12-volt battery and a current of 2 amperes flowing through a resistor, the resistance is calculated as \( R = V / I = 12 / 2 = 6 \) ohms. This simple calculation is the foundation for more complex circuit analysis.
Analyzing Ohm's Law reveals its predictive power. Consider a series circuit with multiple resistors. The total resistance (\( R_T \)) is the sum of individual resistances. For example, if three resistors of 4 ohms, 6 ohms, and 2 ohms are connected in series, \( R_T = 4 + 6 + 2 = 12 \) ohms. This principle is critical for designing circuits where precise resistance values are required, such as in LED lighting systems. Overlooking total resistance can lead to overheating or component failure, emphasizing the importance of accurate calculations.
To apply Ohm's Law effectively, follow these steps: First, identify the known values (voltage, current, or resistance). Second, use the formula \( V = IR \) to solve for the unknown. For instance, if a circuit has a voltage of 9 volts and a resistance of 3 ohms, the current is \( I = V / R = 9 / 3 = 3 \) amperes. Third, verify your result by ensuring it aligns with circuit behavior. Practical tip: Always double-check units (volts, amperes, ohms) to avoid errors. This methodical approach ensures clarity and accuracy in circuit analysis.
A comparative perspective highlights Ohm's Law's versatility. While it’s straightforward for simple circuits, it becomes more nuanced in parallel or combination circuits. In parallel circuits, total resistance (\( R_T \)) is calculated using \( \frac{1}{R_T} = \frac{1}{R_1} + \frac{1}{R_2} + \ldots \). For example, two 4-ohm resistors in parallel yield \( R_T = 2 \) ohms. This contrasts with series circuits, where resistances simply add up. Understanding these differences is crucial for troubleshooting or optimizing circuit performance, especially in applications like home wiring or electronic devices.
Finally, a descriptive approach illustrates Ohm's Law in real-world scenarios. Imagine a dimmable lamp controlled by a variable resistor. As resistance increases, current decreases, dimming the light. This dynamic application demonstrates Ohm's Law's role in everyday technology. Similarly, in automotive systems, resistors regulate voltage to sensitive components, preventing damage. By observing such examples, the abstract concept of Ohm's Law becomes tangible, reinforcing its relevance in practical engineering and problem-solving.
Exploring Law's Role and Connection to One Piece's Storyline
You may want to see also
Explore related products
Calculating Resistance (R) Using Ohm's Law
Ohm's Law, a fundamental principle in electrical circuits, establishes a linear relationship between voltage (V), current (I), and resistance (R). The formula V = I * R allows for the calculation of any one of these values if the other two are known. When the goal is to find resistance (R), the equation is rearranged to R = V / I. This simple yet powerful formula is the cornerstone for understanding and manipulating electrical circuits.
Understanding the Components
Before diving into calculations, it's crucial to grasp the units involved. Voltage is measured in volts (V), current in amperes (A), and resistance in ohms (Ω). Imagine voltage as the pressure pushing electrons through a circuit, current as the flow rate of those electrons, and resistance as the obstacle hindering their movement. A higher voltage or a lower resistance will result in a greater current flow.
For instance, a 12V battery connected to a 2Ω resistor will produce a current of 6A (12V / 2Ω = 6A).
Practical Application: Finding Resistance
Let's say you have a circuit with a known voltage of 9V and a measured current of 3A. To find the resistance, simply divide the voltage by the current: R = 9V / 3A = 3Ω. This means the component in the circuit offers 3 ohms of resistance to the flow of electrons. This calculation is essential for designing circuits, ensuring components operate within safe limits, and troubleshooting electrical issues.
Caution: Always ensure the circuit is powered off before making measurements to avoid electrical hazards.
Real-World Considerations
While Ohm's Law provides a theoretical framework, real-world circuits can be more complex. Factors like temperature, component tolerances, and non-linear behavior of certain materials can influence resistance. For precise calculations, consult component datasheets and consider using a multimeter for accurate resistance measurements. Remember, Ohm's Law is a powerful tool, but it's just one piece of the puzzle in understanding the intricate world of electricity.
Ohio's Shield Law: Understanding Protections for Journalists and Sources
You may want to see also
Explore related products
Finding Voltage (V) with Ohm's Law
Ohm's Law, a cornerstone of electrical circuits, establishes a linear relationship between voltage (V), current (I), and resistance (R). The equation V = I * R is a powerful tool for understanding and manipulating these fundamental electrical properties. When tasked with finding voltage (V) using Ohm's Law, the process is straightforward: you need to know the current flowing through the circuit and the resistance it encounters.
This method is particularly useful when designing circuits, troubleshooting electrical issues, or simply understanding how electrical components interact.
Understanding the Components: Before diving into calculations, ensure you grasp the units involved. Voltage is measured in volts (V), current in amperes (A), and resistance in ohms (Ω). Imagine a simple circuit with a 12V battery and a resistor. If you measure the current flowing through the resistor as 2A, you can readily calculate the voltage drop across the resistor using Ohm's Law.
V = 2A * R.
Practical Application: Let's say you're building a LED circuit. LEDs have specific voltage requirements. If your LED needs 3V and your power supply provides 9V, you'll need a resistor to limit the voltage. Using Ohm's Law, you can calculate the required resistance. Rearranging the formula to R = V/I, you can determine the resistor value needed to achieve the desired voltage drop.
Cautions and Considerations: While Ohm's Law is a powerful tool, it assumes a linear relationship, which isn't always the case. Some components, like diodes, exhibit non-linear behavior. Additionally, real-world circuits have complexities like internal resistance in power sources and temperature effects on resistance. Always consider these factors for accurate calculations.
Representing Yourself in California Custody Court: Essential Tips and Strategies
You may want to see also
Explore related products
$9.99
Determining Current (I) Using Ohm's Law
Ohm's Law, a cornerstone of electrical circuits, establishes a linear relationship between voltage (V), current (I), and resistance (R). The equation V = I * R allows us to determine any one of these values if the other two are known. When the goal is to find current (I), the equation is rearranged to I = V / R. This simple yet powerful formula is essential for anyone working with electrical systems, from hobbyists to professional engineers.
Understanding how to apply this formula requires a grasp of the units involved: voltage is measured in volts (V), current in amperes (A), and resistance in ohms (Ω). For instance, if a circuit has a voltage of 12V and a resistance of 4Ω, the current can be calculated as I = 12V / 4Ω = 3A. This straightforward calculation is the foundation for more complex circuit analysis.
Practical Application and Considerations:
In real-world scenarios, determining current using Ohm's Law involves more than just plugging numbers into a formula. It's crucial to ensure that the circuit is in a stable state and that measurements are accurate. For example, when working with batteries, the voltage might drop under load, affecting the current calculation. Additionally, resistors can have tolerances, meaning their actual resistance might deviate slightly from the stated value. Always account for these variables to achieve precise results.
Comparative Analysis:
While Ohm's Law is widely applicable, it’s important to recognize its limitations. It assumes a linear relationship, which holds true for ohmic resistors but not for components like diodes or transistors. In such cases, alternative methods, such as using I-V characteristic curves, are necessary. However, for simple circuits with resistive elements, Ohm's Law remains the most efficient and reliable tool for determining current.
Step-by-Step Guide:
- Identify Known Values: Ensure you have accurate measurements for voltage (V) and resistance (R). Use a multimeter for precise readings.
- Rearrange the Formula: To find current (I), rearrange Ohm's Law to I = V / R.
- Perform the Calculation: Divide the voltage by the resistance. For example, if V = 9V and R = 3Ω, then I = 9V / 3Ω = 3A.
- Verify Results: Double-check your calculations and ensure the units align correctly.
Takeaway:
Determining current using Ohm's Law is a fundamental skill in electrical engineering and electronics. By understanding the relationship between voltage, current, and resistance, and by applying the formula accurately, you can troubleshoot circuits, design systems, and ensure safe operation. Always consider practical factors like component tolerances and circuit conditions to achieve reliable results.
Mastering Citations: Citing U.S. Constitutional Law Reports Effectively
You may want to see also
Explore related products
Practical Applications of Ohm's Law in Circuits
Ohm's Law, a fundamental principle in electrical engineering, states that the current through a conductor between two points is directly proportional to the voltage across the two points, and inversely proportional to the resistance between them. Mathematically, it's expressed as I = V/R, where I is the current, V is the voltage, and R is the resistance. This simple yet powerful relationship forms the backbone of circuit design and analysis, enabling engineers to predict and control the behavior of electrical systems.
Analyzing Circuit Behavior
In practical applications, Ohm's Law is essential for understanding how circuits respond to varying conditions. For instance, consider a simple LED circuit with a 2V LED, a 5V power supply, and a current-limiting resistor. Using Ohm's Law, you can calculate the required resistance to ensure the LED operates within safe limits. If the desired current is 20mA, the resistor value can be calculated as R = (V_supply - V_LED) / I = (5V - 2V) / 0.02A = 150Ω. This calculation ensures the LED receives the correct current, preventing damage and optimizing performance.
Designing Power Distribution Systems
In larger-scale applications, Ohm's Law plays a critical role in designing power distribution systems. For example, when planning a residential electrical system, engineers must calculate the voltage drop across wires to ensure appliances receive the required voltage. The voltage drop (V_drop) can be calculated using Ohm's Law: V_drop = I \* R, where I is the current and R is the wire's resistance. By limiting the voltage drop to a maximum of 3% (as per NEC guidelines), engineers can select appropriate wire gauges to minimize energy losses and ensure safe operation.
Troubleshooting and Diagnostics
Ohm's Law is also invaluable for troubleshooting and diagnosing circuit issues. Suppose a technician encounters a malfunctioning circuit with a suspected faulty resistor. By measuring the voltage across the resistor and the current flowing through it, they can calculate the resistance using Ohm's Law: R = V / I. If the calculated resistance deviates significantly from the expected value, the technician can pinpoint the faulty component and replace it, restoring the circuit's functionality.
Optimizing Energy Efficiency
In energy-conscious applications, Ohm's Law helps optimize efficiency by minimizing power dissipation. For instance, in a high-power LED lighting system, designers can use Ohm's Law to select the most efficient current-limiting resistors. By choosing resistors with lower resistance values, they can reduce power dissipation (P = I^2 \* R) and improve overall system efficiency. This approach is particularly important in battery-powered devices, where energy conservation is critical for extending runtime and reducing environmental impact. By applying Ohm's Law in these practical scenarios, engineers can create more efficient, reliable, and safe electrical systems.
