Ohm's Law is a fundamental principle in electrical circuits that relates voltage (V), current (I), and resistance (R) through the equation V = I * R. To find the voltage in a circuit using Ohm's Law, you first need to identify the values of current and resistance. If you know the current flowing through a component and its resistance, simply multiply these two values to calculate the voltage across the component. Conversely, if you have the resistance and voltage, you can rearrange the formula to solve for current (I = V / R). Understanding how to apply Ohm's Law is essential for analyzing and troubleshooting electrical circuits, as it allows you to determine unknown values and ensure components operate within safe and efficient parameters.
| Characteristics | Values |
|---|---|
| Formula | V = I * R |
| Description | Ohm's Law states that the voltage (V) across a conductor is directly proportional to the current (I) flowing through it, provided the temperature and other conditions remain constant. |
| Units | Voltage (V) is measured in Volts (V), Current (I) in Amperes (A), and Resistance (R) in Ohms (Ω). |
| Application | Used to calculate voltage in electrical circuits when current and resistance are known. |
| Alternative Formula | V = IR (where I is current and R is resistance) |
| Key Variables | Voltage (V), Current (I), Resistance (R) |
| Assumptions | Linear relationship between voltage and current, constant temperature, and ohmic material. |
| Example | If a current of 2 A flows through a resistor with a resistance of 5 Ω, the voltage across the resistor is V = 2 A * 5 Ω = 10 V. |
| Related Concepts | Kirchhoff's Laws, Power (P = VI), Energy (E = Pt) |
| Practical Use | Circuit design, troubleshooting, and analysis in electronics and electrical engineering. |
| Limitations | Not applicable to non-ohmic materials, semiconductors, or circuits with varying temperatures. |
Explore related products
What You'll Learn
- Using Ohm's Law Formula: V = I * R, where V is voltage, I is current, R is resistance
- Measuring Voltage with a Multimeter: Connect multimeter in parallel to measure voltage across components
- Voltage in Series Circuits: Sum of individual voltages equals total voltage (V_total = V1 + V2 + ...)
- Voltage in Parallel Circuits: Voltage across each branch is the same as the source voltage
- Voltage Drop Calculation: Voltage drop across a resistor is I * R, using Ohm's Law

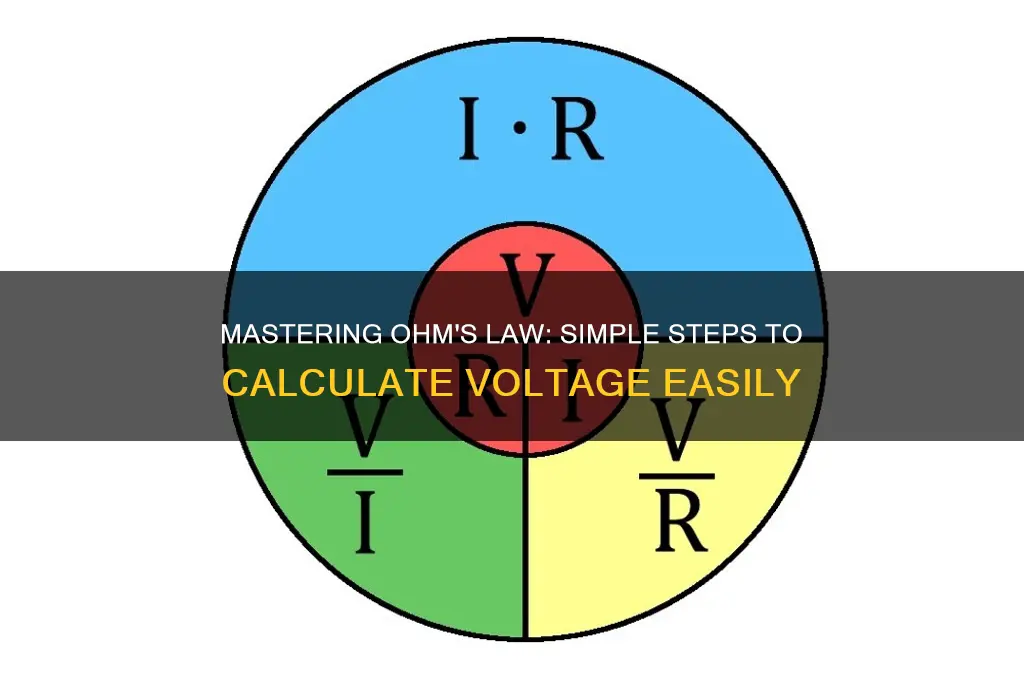

Using Ohm's Law Formula: V = I * R, where V is voltage, I is current, R is resistance
Ohm's Law, represented by the formula V = I * R, is a cornerstone of electrical circuits, offering a straightforward method to calculate voltage. Here, voltage (V) is the electric potential difference, current (I) is the flow of electric charge, and resistance (R) is the opposition to this flow. This formula is particularly useful when you know the current passing through a component and its resistance, allowing you to determine the voltage drop across it. For instance, if a circuit has a current of 2 amperes flowing through a resistor with a resistance of 5 ohms, the voltage drop across the resistor is simply 2 A * 5 Ω = 10 V.
To apply this formula effectively, it’s crucial to ensure units are consistent. Current should be in amperes (A), resistance in ohms (Ω), and the resulting voltage will be in volts (V). Mismatched units can lead to incorrect calculations. For example, if current is given in milliamperes (mA), convert it to amperes by dividing by 1000 before multiplying by resistance. Similarly, if resistance is provided in kilohms (kΩ), convert it to ohms by multiplying by 1000. This attention to detail ensures accuracy in practical applications, such as designing circuits or troubleshooting electrical issues.
One practical scenario where this formula shines is in household electronics. Imagine you’re working on a DIY project involving LED lights. LEDs typically require a specific voltage to operate safely, say 3 volts. If you have a 9-volt battery and a resistor in series with the LED, you can use Ohm’s Law to calculate the necessary resistance to limit the current and protect the LED. Rearranging the formula to R = V / I, if the desired current is 0.2 A, the required resistance is (9 V - 3 V) / 0.2 A = 30 Ω. This ensures the LED operates within safe limits, preventing damage from excessive voltage or current.
While Ohm’s Law is powerful, it’s essential to recognize its limitations. It assumes a linear relationship between voltage and current, which holds true for resistors but not for all components. Diodes, transistors, and other nonlinear devices behave differently, and their voltage-current characteristics cannot be accurately described by V = I * R. In such cases, consult datasheets or use more advanced models. Additionally, real-world circuits may introduce complexities like temperature effects on resistance or voltage drops across connectors, which require further analysis beyond this basic formula.
In summary, the Ohm’s Law formula V = I * R is a versatile tool for finding voltage in electrical circuits, especially when current and resistance are known. By maintaining consistent units, applying it to practical scenarios like LED protection, and acknowledging its limitations, you can leverage this formula effectively in both theoretical and real-world applications. Whether you’re a hobbyist or a professional, mastering this equation is a fundamental step toward understanding and manipulating electrical systems.
