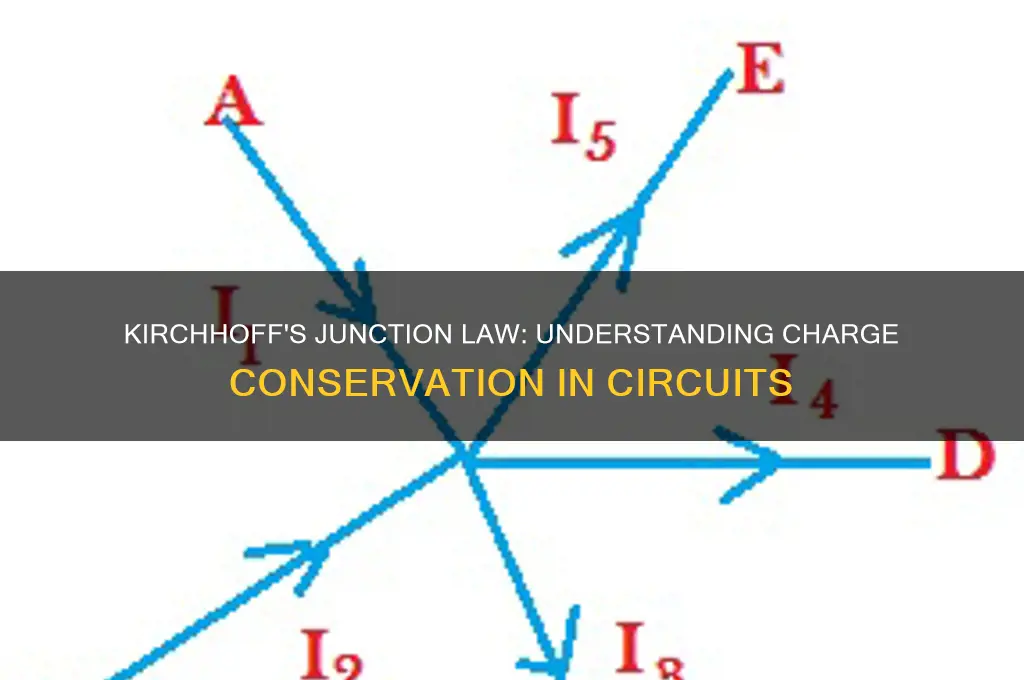

Kirchhoff's Junction Law, also known as Kirchhoff's Current Law (KCL), is a fundamental principle in electrical circuit analysis that states the total current flowing into a junction or node in a circuit is equal to the total current flowing out of it. This law is rooted in the conservation of electric charge, which dictates that charge cannot be created or destroyed, only transferred or redistributed. By ensuring that the sum of currents entering a node equals the sum of currents leaving it, KCL directly reflects the principle that charge is conserved within the circuit. Thus, Kirchhoff's Junction Law can be understood as a practical application of the conservation of charge in electrical systems.
| Characteristics | Values |
|---|---|
| Law Statement | Kirchhoff's Junction Law (or Current Law, KCL) states that the total current flowing into a junction equals the total current flowing out. |
| Conservation Principle | Yes, it is based on the conservation of electric charge. |
| Mathematical Representation | ∑I_in = ∑I_out (Sum of currents entering a node equals sum of currents leaving). |
| Physical Basis | Charge cannot be created or destroyed within a circuit; it is conserved. |
| Applicability | Applies to all lumped-element circuits at steady state or transient conditions. |
| Units | Current (Amperes, A). |
| Assumptions | Negligible electromagnetic effects and lumped circuit elements. |
| Relation to Other Laws | Complements Kirchhoff's Voltage Law (KVL) and Ohm's Law. |
| Practical Use | Essential for circuit analysis, nodal analysis, and network theorems. |
| Limitations | Does not account for non-lumped elements or relativistic effects. |
| Historical Context | Formulated by Gustav Kirchhoff in the mid-19th century. |
Explore related products
What You'll Learn
- Charge Conservation Principle: Kirchhoff's Junction Law reflects the fundamental principle of charge conservation in circuits
- Node Analysis Application: How the law is applied at circuit nodes to ensure charge balance
- Current Summation Rule: Explanation of the law's requirement that total current into a node equals outgoing current
- Physical Basis: Derivation of the law from the physical behavior of electrons in conductors
- Limitations and Assumptions: Conditions under which the law holds true and potential exceptions
Charge Conservation Principle: Kirchhoff's Junction Law reflects the fundamental principle of charge conservation in circuits
The Charge Conservation Principle is a cornerstone of physics, asserting that electric charge cannot be created or destroyed; it can only be transferred or redistributed within a closed system. This principle is elegantly reflected in Kirchhoff's Junction Law, also known as Kirchhoff's Current Law (KCL), which states that the total current flowing into a junction in a circuit must equal the total current flowing out of that junction. This law is a direct application of charge conservation in electrical circuits, ensuring that charge is neither accumulated nor lost at any node. By analyzing the flow of current at a junction, KCL reinforces the idea that the total charge entering a point in a circuit must equal the total charge leaving it, thereby upholding the fundamental principle of charge conservation.
Kirchhoff's Junction Law is derived from the continuity equation in electromagnetism, which describes the conservation of electric charge in both static and dynamic systems. In the context of circuits, this law ensures that the algebraic sum of currents at any junction is zero. For example, if three wires meet at a point and currents *I₁*, *I₂*, and *I₃* flow into the junction, while currents *I₄* and *I₅* flow out, KCL dictates that *I₁ + I₂ + I₃ = I₄ + I₅*. This equation demonstrates that charge is conserved at the junction, as the total incoming charge equals the total outgoing charge. Without this law, the accumulation or depletion of charge at junctions would violate the fundamental principles of physics.
The application of Kirchhoff's Junction Law in circuit analysis highlights its role as a practical tool for enforcing charge conservation. Engineers and physicists use KCL to solve complex circuits by ensuring that charge is conserved at every node. For instance, in a series-parallel circuit, KCL allows the determination of unknown currents by balancing the charge flow at each junction. This systematic approach not only simplifies circuit analysis but also reinforces the underlying principle that charge is neither created nor destroyed, only redistributed. Thus, KCL serves as both a theoretical and practical manifestation of the charge conservation principle.
Furthermore, Kirchhoff's Junction Law is consistent with the broader framework of Maxwell's equations, which govern electromagnetism and include the continuity equation as a key component. The continuity equation, ∇⋅J = -∂ρ/∂t, where J is the current density and ρ is the charge density, ensures that any change in charge density is balanced by the divergence of current. In the steady-state condition of most circuits, ∂ρ/∂t = 0, reducing the equation to ∇⋅J = 0, which implies that the total current flowing into a region equals the total current flowing out. KCL is a simplified, localized version of this equation, applied specifically to circuit junctions, further cementing its role in reflecting charge conservation.
In summary, Kirchhoff's Junction Law is a direct and practical reflection of the Charge Conservation Principle in electrical circuits. By ensuring that the total current entering a junction equals the total current leaving it, KCL upholds the fundamental idea that electric charge cannot be created or destroyed. This law is not only essential for circuit analysis but also serves as a bridge between theoretical electromagnetism and practical engineering, demonstrating the universal applicability of charge conservation across scales. Through its consistent application, KCL reinforces the timeless principle that charge is always conserved, making it a vital tool in the study and design of electrical systems.
Understanding Springfield, Missouri's Open Carry Law: Rights and Regulations Explained
You may want to see also
Explore related products
Node Analysis Application: How the law is applied at circuit nodes to ensure charge balance
Kirchhoff's Junction Law, also known as Kirchhoff's Current Law (KCL), is fundamentally rooted in the principle of conservation of charge. It states that the total current flowing into a node (or junction) in a circuit must equal the total current flowing out of that node. This law is a direct application of the conservation of electric charge, ensuring that charge is neither created nor destroyed within the circuit but only redistributed. In the context of Node Analysis Application, KCL is applied to ensure charge balance at each node, forming the basis for solving complex circuits.
When applying KCL in node analysis, the first step is to identify all nodes in the circuit and select a reference node (often called the ground node). For each non-reference node, the currents entering and leaving the node are summed. According to KCL, the algebraic sum of these currents must be zero. This is expressed mathematically as: ΣIin = ΣIout. For example, if three currents I1, I2, and I3 enter a node, and two currents I4 and I5 leave it, the equation becomes I1 + I2 + I3 = I4 + I5. This equation ensures that charge is conserved at the node.
The application of KCL in node analysis is particularly useful in circuits with multiple branches and nodes. By writing KCL equations for each node, a system of simultaneous equations is formed, which can be solved to determine unknown currents or voltages. For instance, in a circuit with two nodes (excluding the reference node), two KCL equations are written, each representing charge balance at its respective node. These equations, combined with other circuit laws like Ohm's Law, provide a complete solution to the circuit.
One key aspect of applying KCL in node analysis is the proper assignment of current directions. While the assumed direction of currents may not always match the actual flow, KCL ensures that the equations remain valid as long as the directions are consistent. If a current is assumed to flow into a node but actually flows out, it will be treated as a negative value in the equation, automatically correcting for the discrepancy. This flexibility allows for systematic analysis without requiring prior knowledge of current directions.
Finally, node analysis using KCL is a powerful tool for both simple and complex circuits. It simplifies the analysis by reducing the problem to a set of algebraic equations, making it easier to handle circuits with many components. By ensuring charge balance at each node, KCL not only validates the conservation of charge but also provides a structured approach to circuit analysis. This method is widely used in electrical engineering to design, analyze, and troubleshoot circuits, demonstrating the practical significance of Kirchhoff's Junction Law in real-world applications.
Presidential Authority and Racial Violence: Legal Frameworks and Historical Context
You may want to see also
Explore related products
Current Summation Rule: Explanation of the law's requirement that total current into a node equals outgoing current
The Current Summation Rule, also known as Kirchhoff’s Junction Law or Kirchhoff’s Current Law (KCL), is a fundamental principle in electrical circuit analysis. It states that the total current flowing into a node (or junction) in a circuit must equal the total current flowing out of that node. This law is a direct application of the principle of conservation of electric charge, which asserts that electric charge cannot be created or destroyed, only conserved. In a circuit, charge entering a node must exit it in equal measure, ensuring that the net charge at any node remains constant over time. This rule is essential for analyzing complex circuits and solving for unknown currents and voltages.
To understand the Current Summation Rule in detail, consider a node in an electrical circuit where multiple wires or components meet. At this junction, currents from different branches converge. According to KCL, the algebraic sum of all currents entering the node must equal the algebraic sum of all currents leaving the node. Mathematically, this is expressed as:
\[
\sum I_{\text{in}} = \sum I_{\text{out}}
\]
Here, \( I_{\text{in}} \) represents the currents flowing into the node, and \( I_{\text{out}} \) represents the currents flowing out. The direction of current is assigned arbitrarily, but consistency in sign convention (e.g., inward as positive and outward as negative, or vice versa) is crucial for accurate calculations.
The Current Summation Rule is rooted in the conservation of charge, which is a fundamental principle of physics. In any closed system, the total charge remains constant. In the context of a circuit, a node acts as a closed system for a brief instant. If the total incoming charge were greater than the outgoing charge, charge would accumulate at the node, which is impossible. Similarly, if outgoing charge were greater, charge would be lost, violating the principle of conservation. Thus, KCL ensures that charge is neither created nor destroyed at any node, maintaining the integrity of the circuit’s operation.
Applying the Current Summation Rule involves identifying all currents connected to a node and setting up an equation based on their directions. For example, in a node with three incoming currents \( I_1, I_2, \) and \( I_3 \), and two outgoing currents \( I_4 \) and \( I_5 \), the equation would be:
\[
I_1 + I_2 + I_3 = I_4 + I_5
\]
This equation allows engineers and students to solve for unknown currents in a circuit by ensuring that the total charge entering the node equals the total charge leaving it. The rule is particularly useful in conjunction with Kirchhoff’s Voltage Law (KVL) for solving complex circuits using methods like nodal analysis.
In summary, the Current Summation Rule is a critical tool in circuit analysis, directly tied to the conservation of electric charge. By requiring that the total current into a node equals the total current out, it ensures that charge is conserved at every junction in a circuit. This law simplifies the analysis of interconnected circuits and provides a foundational principle for understanding and designing electrical systems. Its application is straightforward yet powerful, making it indispensable in both theoretical and practical electrical engineering.
Understanding Discretionary Power: Legal Flexibility and Its Implications Explained
You may want to see also
Explore related products
Physical Basis: Derivation of the law from the physical behavior of electrons in conductors
Kirchhoff's Junction Law, also known as Kirchhoff's Current Law (KCL), states that the total current flowing into a junction in a circuit is equal to the total current flowing out of that junction. This fundamental principle is deeply rooted in the conservation of electric charge, a cornerstone of electromagnetism. To derive this law from the physical behavior of electrons in conductors, we must examine how charge carriers move and interact within a conductive material.
Electrons in a conductor are in constant, random motion due to thermal energy. When a voltage is applied across the conductor, an electric field is established, which exerts a force on the free electrons, causing them to drift in a direction opposite to the electric field. This directed movement constitutes an electric current. At a junction, where multiple conductors meet, the behavior of these electrons is governed by the principle that charge cannot accumulate over time at any point in the circuit. If charge were to accumulate, it would create an electric field that opposes further accumulation, ensuring that the total charge remains constant.
Mathematically, the conservation of charge is expressed by the continuity equation, which states that the rate of change of charge density (\( \rho \)) within a volume is equal to the negative divergence of the current density (\( \mathbf{J} \)) plus any sources or sinks of charge:
\[
\frac{\partial \rho}{\partial t} + \nabla \cdot \mathbf{J} = 0.
\]
In a steady-state circuit, where charge density does not change with time (\( \frac{\partial \rho}{\partial t} = 0 \)), the equation simplifies to \( \nabla \cdot \mathbf{J} = 0 \). This implies that the total current entering a junction must equal the total current leaving it, as any imbalance would result in a non-zero divergence, violating the conservation of charge.
At the microscopic level, electrons approaching a junction from different branches continue their motion in such a way that the net flow of charge remains balanced. If more electrons were to enter the junction than leave, a negative charge would build up, repelling further incoming electrons and attracting outgoing ones until equilibrium is restored. Conversely, if more electrons were to leave than enter, a positive charge would accumulate, reversing the process. This self-regulating mechanism ensures that the junction does not act as a sink or source of charge, thereby upholding KCL.
The physical basis of Kirchhoff's Junction Law is thus a direct consequence of the conservation of electric charge and the behavior of electrons in response to electric fields. By considering the movement of charge carriers and the constraints imposed by charge conservation, we derive the law as a natural outcome of the fundamental principles governing electromagnetic phenomena. This derivation not only explains the law's validity but also highlights its universal applicability in analyzing electrical circuits.
Understanding Civil Service Laws: Key Principles and Their Impact
You may want to see also
Explore related products
Limitations and Assumptions: Conditions under which the law holds true and potential exceptions
Kirchhoff's Junction Law, also known as Kirchhoff's Current Law (KCL), is fundamentally rooted in the principle of conservation of electric charge. It states that the total current flowing into a junction in a circuit is equal to the total current flowing out of that junction. While this law is a cornerstone in circuit analysis, it operates under specific assumptions and conditions, and there are limitations and potential exceptions to its applicability.
Assumptions and Conditions for Validity:
KCL holds true under the assumption that electric charge is conserved and that the circuit is in a lumped-element model, where the circuit elements are considered to have no spatial extent. This implies that the circuit components are small enough compared to the wavelength of the signals passing through them, ensuring that electromagnetic effects like propagation delays are negligible. Additionally, the law assumes that the junction is ideal, meaning it has no resistance or other properties that could affect charge distribution. The analysis is typically performed in steady-state conditions or under the assumption that transient effects are negligible, as KCL is derived from the continuity equation in electromagnetism, which relies on charge conservation over time.
Limitations in High-Frequency Circuits:
One significant limitation of KCL arises in high-frequency or high-speed circuits, where the wavelength of the signals becomes comparable to the size of the circuit components. In such cases, the lumped-element model breaks down, and distributed effects, such as transmission line behavior, become significant. Charge can accumulate or redistribute along the circuit elements, violating the assumption of instantaneous charge conservation at the junction. This necessitates the use of more advanced models, such as distributed-element circuits, to accurately analyze the behavior.
Non-Ideal Junction Behavior:
KCL assumes that the junction itself does not store or dissipate charge. However, in real-world scenarios, junctions may exhibit non-ideal behavior due to parasitic elements like capacitance or inductance. For instance, a junction with parasitic capacitance can store charge temporarily, causing deviations from the ideal KCL prediction during transient periods. Similarly, if the junction has resistance, it can lead to voltage drops and non-uniform current distribution, which may not strictly adhere to the law.
Exceptions in Non-Linear Circuits:
KCL is derived for linear circuits where the relationship between voltage and current is constant over time. In non-linear circuits, such as those containing diodes, transistors, or other active devices, the current-voltage characteristics can vary dynamically. During switching events or transient states, charge may not be instantaneously conserved at junctions due to the non-linear behavior of these components. For example, in a diode circuit, charge storage effects during reverse recovery can lead to temporary violations of KCL.
Quantum and Microscopic Scale Limitations:
At the quantum or microscopic scale, the classical assumptions of KCL break down due to the probabilistic nature of charge behavior. In such regimes, charge carriers may exhibit tunneling, quantum interference, or other phenomena that defy classical conservation principles at junctions. While these effects are not relevant for macroscopic circuit analysis, they highlight the limitations of KCL in extreme conditions.
In summary, Kirchhoff's Junction Law is a powerful tool for circuit analysis under specific conditions, but its applicability is constrained by assumptions about circuit behavior, frequency, and scale. Understanding these limitations and exceptions is crucial for accurate analysis in complex or non-ideal scenarios.
Copyright Overreach: How US IP Laws Stifle Economic Growth
You may want to see also
Frequently asked questions
Yes, Kirchhoff's Junction Law (or Kirchhoff's Current Law, KCL) is a direct application of the principle of conservation of charge. It states that the total current entering a junction equals the total current leaving it, ensuring charge is conserved.
Kirchhoff's Junction Law demonstrates conservation of charge by requiring that the algebraic sum of currents at a node is zero. This ensures that no charge accumulates or disappears at the junction, adhering to the principle that charge is neither created nor destroyed.
No, Kirchhoff's Junction Law cannot be violated because it is fundamentally based on the conservation of charge. Any apparent violation would indicate an error in analysis or measurement, not a failure of the law itself.
Kirchhoff's Junction Law is considered a consequence of charge conservation because it mathematically enforces the principle that charge must be conserved in a circuit. It ensures that the flow of charge into a junction equals the flow out, maintaining the balance required by conservation laws.
Yes, Kirchhoff's Junction Law applies to all circuits, regardless of complexity, because the conservation of charge is a universal principle. It holds true for simple circuits, complex networks, and even in situations involving time-varying currents.
