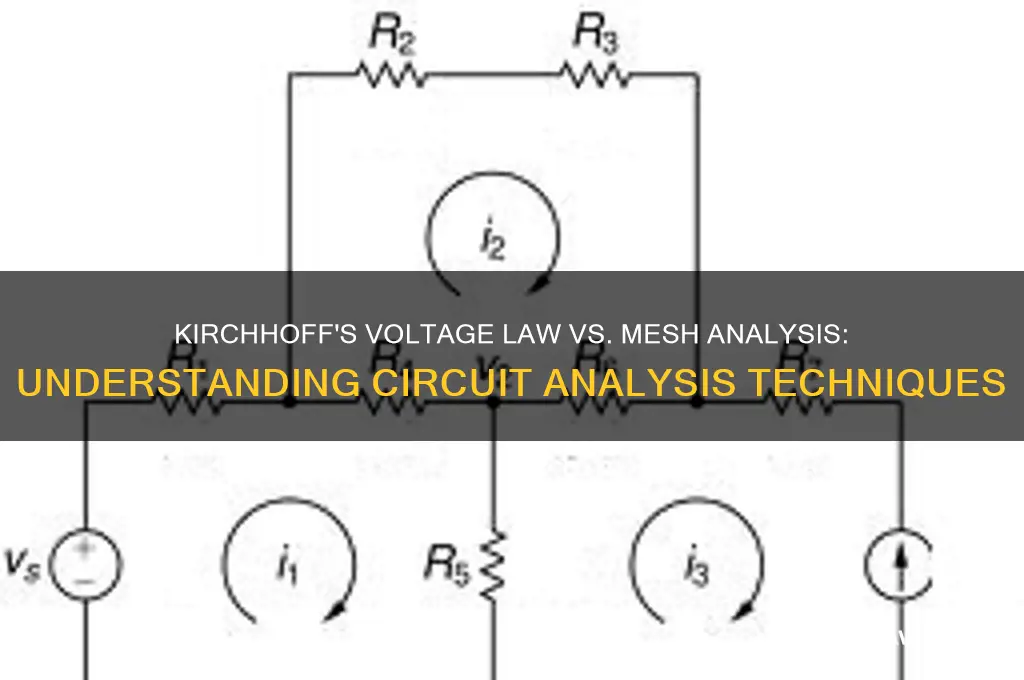

Kirchhoff's Voltage Law (KVL) and mesh analysis are fundamental concepts in electrical circuit analysis, but they are not the same thing. KVL states that the algebraic sum of voltages around any closed loop in a circuit is zero, reflecting the conservation of energy. Mesh analysis, on the other hand, is a specific technique used to apply KVL to planar circuits, where a circuit is divided into loops or meshes, and equations are written for each mesh based on KVL. While mesh analysis relies on KVL as its foundation, it is a methodical approach to solving complex circuits by systematically applying KVL to each loop, making it a practical application of the law rather than a synonym for it.
Explore related products
What You'll Learn
- KVL Basics: Understanding Kirchhoff's Voltage Law (KVL) and its fundamental principles in circuit analysis
- Mesh Analysis Overview: Defining mesh analysis and its role in solving complex circuits
- KVL vs. Mesh: Comparing KVL and mesh analysis: similarities and differences in application
- Mesh Analysis Steps: Step-by-step process of applying mesh analysis to circuits
- Limitations & Scope: Exploring the limitations of KVL and mesh analysis in circuit analysis
KVL Basics: Understanding Kirchhoff's Voltage Law (KVL) and its fundamental principles in circuit analysis
Kirchhoff's Voltage Law (KVL) is a cornerstone of circuit analysis, stating that the sum of voltages around any closed loop in a circuit equals zero. This principle, rooted in the conservation of energy, ensures that the energy supplied by voltage sources is balanced by the energy consumed by circuit elements. While KVL is often associated with mesh analysis—a technique for solving planar circuits—it is not the same thing. Mesh analysis applies KVL specifically to loops within a circuit, but KVL itself is a broader law applicable to any closed path, regardless of the circuit’s complexity or topology.
To apply KVL effectively, follow these steps: first, identify a closed loop in the circuit. Next, assign a direction for traversing the loop, typically clockwise or counterclockwise. Then, sum the voltage drops and rises encountered along the path, ensuring consistent sign conventions (e.g., subtract voltage drops and add voltage rises). Finally, set the total equal to zero and solve for unknowns. For example, in a simple series circuit with a 12V source, a 4Ω resistor, and an 8Ω resistor, KVL confirms that the sum of voltage drops across the resistors equals the source voltage: \(V_{source} = I \cdot R_1 + I \cdot R_2\).
A common misconception is that KVL only applies to DC circuits. In reality, it holds true for AC circuits as well, though phasor analysis is required to account for phase shifts in voltage and current. For instance, in an AC circuit with a resistor and inductor, KVL ensures the sum of the voltage drop across the resistor (\(V_R = I \cdot R\)) and the inductor (\(V_L = I \cdot j\omega L\)) equals the source voltage. This demonstrates KVL’s versatility across circuit types.
While KVL is powerful, it must be used judiciously. One caution is to avoid applying KVL to open loops, as it only applies to closed paths. Additionally, in circuits with dependent sources, ensure the controlling variable (e.g., current or voltage) is known before applying KVL. For practical circuits, tools like SPICE simulators can automate KVL calculations, but understanding its principles remains essential for troubleshooting and design.
In conclusion, KVL is a fundamental tool for circuit analysis, distinct from but often used in conjunction with mesh analysis. Its application requires careful loop selection, consistent sign conventions, and awareness of circuit conditions. By mastering KVL, engineers and students can confidently analyze circuits, ensuring energy conservation and accurate predictions of circuit behavior.
Understanding Child Labor Laws: When Do Protections End for Minors?
You may want to see also
Explore related products
Mesh Analysis Overview: Defining mesh analysis and its role in solving complex circuits
Mesh analysis is a powerful technique in circuit theory that simplifies the process of solving complex circuits by focusing on the currents flowing within closed loops, or meshes. Unlike nodal analysis, which centers on voltage at nodes, mesh analysis applies Kirchhoff’s Voltage Law (KVL) directly to each mesh, ensuring the sum of voltages around any closed loop equals zero. While KVL is a foundational principle, mesh analysis is a structured method that leverages it to systematically solve for unknown currents. This distinction is critical: KVL is the rule, while mesh analysis is the application of that rule in a specific, organized manner.
To perform mesh analysis, follow these steps: first, identify the meshes in the circuit, ensuring no mesh is nested within another. Assign a current variable to each mesh, typically in a clockwise direction for consistency. Next, apply KVL to each mesh by summing the voltages around the loop and setting the equation to zero. This yields a system of linear equations, one for each mesh. Solve this system to find the unknown mesh currents. For circuits with voltage sources between meshes, supermeshes may be required to handle shared currents. This methodical approach transforms a daunting circuit into a solvable set of equations.
A key advantage of mesh analysis is its efficiency in handling planar circuits, where all components lie on a single plane. For example, consider a circuit with three meshes and two current sources. By applying mesh analysis, you reduce the problem to three equations with three unknowns, a straightforward calculation. However, caution is necessary when dealing with non-planar circuits or those with dependent sources, as these may complicate mesh identification or require additional equations. Practical tip: Always double-check mesh orientations to avoid sign errors in voltage calculations.
While mesh analysis is a robust tool, it is not always the best choice. For circuits with many voltage sources or non-planar configurations, nodal analysis or other methods may be more suitable. The takeaway is that mesh analysis is a specialized technique, not a universal solution. Its strength lies in its ability to simplify planar circuits by directly applying KVL in a structured manner, making it an indispensable skill for electrical engineers and students alike. Mastery of this method ensures clarity and precision in solving even the most intricate circuit problems.
Mass Influence on Kepler's 3rd Law: Orbital Period Explained
You may want to see also
Explore related products
KVL vs. Mesh: Comparing KVL and mesh analysis: similarities and differences in application
Kirchhoff's Voltage Law (KVL) and mesh analysis are both fundamental tools in circuit analysis, yet they serve distinct purposes and are applied in different contexts. KVL states that the algebraic sum of voltages around any closed loop in a circuit is zero, providing a foundational principle for understanding voltage distribution. Mesh analysis, on the other hand, is a systematic method for solving planar circuits by applying KVL to each mesh (loop) within the circuit. While both techniques rely on the same underlying principle, their application and scope differ significantly.
Consider a simple series circuit with three resistors connected to a voltage source. Applying KVL to this circuit involves summing the voltage drops across each resistor and equating it to the source voltage, ensuring the loop equation equals zero. Mesh analysis, however, would treat this circuit as a single mesh, yielding the same equation but within a structured framework. This example highlights a key similarity: both methods enforce voltage conservation in closed loops. Yet, mesh analysis is more structured, making it suitable for complex planar circuits with multiple loops, whereas KVL is a versatile principle applicable to any closed path, planar or not.
The differences become more pronounced in non-planar circuits, where mesh analysis is inapplicable due to its reliance on distinct, non-overlapping loops. In such cases, KVL remains a viable tool, allowing engineers to write loop equations manually without the constraints of mesh analysis. For instance, in a circuit with crossing conductors, KVL can still be applied to any closed loop, while mesh analysis would fail due to its inability to define independent meshes. This limitation underscores the flexibility of KVL as a general principle versus the specialized nature of mesh analysis.
Practical application further distinguishes the two. Mesh analysis is particularly useful in solving circuits with multiple loops, as it reduces the problem to a system of linear equations, simplifying calculations. For example, a circuit with three meshes would yield three simultaneous equations, one for each mesh. KVL, while equally valid, requires the engineer to manually identify and write loop equations, which can be more error-prone in complex circuits. Thus, mesh analysis is a procedural extension of KVL, optimized for planar circuits, while KVL stands as a broader, more adaptable law.
In summary, KVL and mesh analysis share a common foundation but diverge in application and scope. KVL is a universal principle applicable to any closed loop, offering flexibility in circuit analysis. Mesh analysis, however, is a structured method tailored for planar circuits, providing a systematic approach to solving complex networks. Understanding their similarities and differences allows engineers to choose the appropriate tool for the task, ensuring efficient and accurate circuit analysis.
Historic Residents of Calkins Law Office Building: Unveiling Its Past
You may want to see also
Explore related products
Mesh Analysis Steps: Step-by-step process of applying mesh analysis to circuits
Mesh analysis is a powerful technique in circuit analysis, leveraging Kirchhoff's Voltage Law (KVL) to simplify complex circuits into manageable equations. While KVL states that the sum of voltages around any closed loop is zero, mesh analysis applies this principle specifically to planar circuits, breaking them into smaller loops called meshes. Each mesh represents a distinct current path, and by writing KVL equations for each, we can solve for unknown currents and voltages.
Step 1: Identify Meshes and Assign Currents
Begin by identifying all independent meshes in the circuit. A mesh is a loop that does not contain any other loops within it. Assign a current variable (e.g., \( I_1, I_2 \)) to each mesh, assuming a clockwise direction for consistency. This direction is arbitrary but must be adhered to throughout the analysis to avoid sign errors. For example, in a circuit with three meshes, label them as \( I_1 \), \( I_2 \), and \( I_3 \), ensuring each current flows in the same assumed direction.
Step 2: Write KVL Equations for Each Mesh
For each mesh, apply KVL by summing the voltages around the loop and setting them equal to zero. Include voltage sources and voltage drops across resistors, using Ohm's Law (\( V = IR \)) where necessary. For shared components between meshes, such as resistors, account for the difference in currents. For instance, if a resistor lies between mesh 1 and mesh 2, the voltage drop would be \( I_1 \times R - I_2 \times R \). Ensure each equation reflects the chosen current directions.
Step 3: Solve the System of Equations
Once all KVL equations are written, solve the resulting system of linear equations to find the mesh currents. Methods like substitution, elimination, or matrix algebra can be used. For example, a circuit with two meshes yields two equations with two unknowns, which can be solved simultaneously. Tools like calculators or software (e.g., MATLAB) can streamline this step for larger circuits.
Cautions and Practical Tips
Avoid common pitfalls like neglecting shared components or misapplying current directions. Always double-check the signs in your equations, as errors here propagate through the entire solution. For circuits with dependent sources, include their controlling variables in the equations. For instance, a voltage-controlled current source would add a term like \( K \times V_x \) to the equation, where \( V_x \) is a voltage across a specific component.
Mesh analysis transforms complex circuits into solvable systems by systematically applying KVL to each mesh. While it is not the same as KVL—which is a broader law applicable to any closed loop—mesh analysis is a specialized application of KVL tailored for planar circuits. By following these steps meticulously, engineers and students can efficiently analyze circuits, ensuring accurate results and deeper insights into circuit behavior.
Navigating Strained Relationships: When Your Daughter-in-Law Pulls Away
You may want to see also
Explore related products
Limitations & Scope: Exploring the limitations of KVL and mesh analysis in circuit analysis
Kirchhoff's Voltage Law (KVL) and mesh analysis are fundamental tools in circuit analysis, but they are not the same. KVL states that the algebraic sum of voltages around any closed loop in a circuit is zero, while mesh analysis applies this principle specifically to planar circuits by analyzing currents in each mesh (loop). Despite their utility, both methods have limitations that circuit designers and analysts must navigate. Understanding these constraints ensures accurate application and interpretation of results.
One significant limitation of KVL and mesh analysis is their reliance on lumped circuit theory, which assumes circuit elements are concentrated at single points and interconnected by wires with no resistance or inductance. In reality, high-frequency circuits or those with distributed elements (e.g., transmission lines) violate these assumptions. For instance, at frequencies above 100 MHz, a 1-inch wire can introduce measurable impedance, rendering KVL-based calculations inaccurate. Mesh analysis, being an extension of KVL, inherits this limitation, making it unsuitable for analyzing circuits with significant parasitic effects.
Another constraint arises in non-planar circuits, where loops overlap in three-dimensional space. Mesh analysis is strictly applicable to planar circuits, where all meshes lie in a single plane. For non-planar circuits, such as those found in multilayer PCBs or 3D-integrated systems, mesh analysis becomes impractical. Analysts must resort to nodal analysis or other methods, even though KVL itself remains valid. This highlights a key distinction: KVL is a universal law, while mesh analysis is a specialized technique with narrower applicability.
A practical limitation emerges when circuits contain dependent sources, such as voltage-controlled voltage sources (VCVS) or current-controlled current sources (CCCS). While KVL still holds, mesh analysis becomes algebraically complex due to the interdependence of mesh currents. For example, a circuit with two meshes and a VCVS requires solving simultaneous equations involving both mesh currents and the controlling variable. This complexity increases with the number of dependent sources, often necessitating computational tools like MATLAB or SPICE for accurate analysis.
Finally, both KVL and mesh analysis assume steady-state conditions, ignoring transient behavior. In circuits with energy storage elements like capacitors or inductors, transient analysis is essential to understand initial conditions or switching events. For instance, during the first few milliseconds after a circuit is powered on, KVL-based calculations may yield misleading results because the circuit has not yet reached steady state. Analysts must complement KVL and mesh analysis with techniques like time-domain analysis to capture transient effects.
In summary, while KVL and mesh analysis are powerful tools, their limitations must be acknowledged. They are best suited for planar, lumped-element circuits under steady-state conditions, with caution applied to high-frequency or non-planar designs. By understanding these constraints, engineers can leverage these methods effectively while avoiding pitfalls that compromise accuracy.
Understanding Georgia's Purple Paint Law: Boundaries and Trespassing Rules Explained
You may want to see also
Frequently asked questions
No, Kirchhoff's Voltage Law (KVL) is a fundamental principle stating that the sum of voltages around a closed loop is zero. Mesh analysis is a technique that applies KVL to analyze circuits with multiple loops, specifically focusing on planar circuits.
No, mesh analysis inherently relies on Kirchhoff's Voltage Law to set up equations for each loop in the circuit. Without KVL, mesh analysis would not be possible.
No, Kirchhoff's Voltage Law is a general principle applicable to any closed loop in a circuit, regardless of whether mesh analysis is being used. It is a foundational concept in circuit analysis.
Yes, since mesh analysis is based on KVL, the results obtained from mesh analysis are always consistent with Kirchhoff's Voltage Law, provided the analysis is performed correctly.
