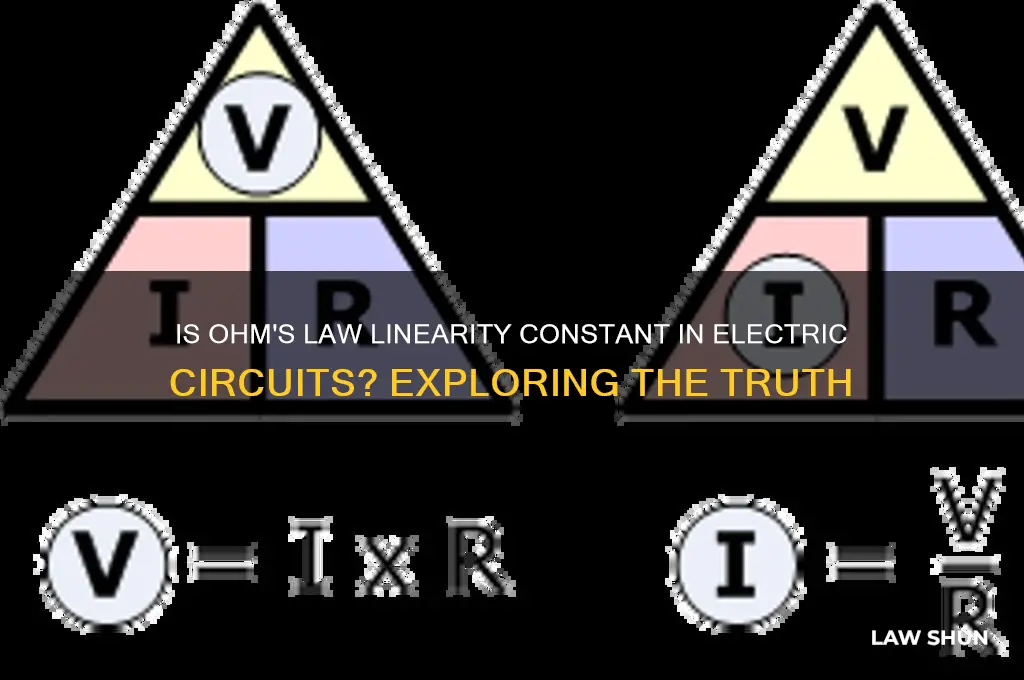

Ohm's Law, a fundamental principle in electrical circuits, states that the current through a conductor is directly proportional to the voltage applied across it, provided the temperature and other conditions remain constant. However, the question arises whether this linear relationship holds true under all circumstances or if there are factors that could disrupt its constancy. Investigating the linearity of Ohm's Law is crucial for understanding the behavior of electric circuits, as deviations from linearity can significantly impact circuit performance and predictability. This exploration involves examining the conditions under which the law remains linear and identifying any variables, such as material properties, temperature changes, or extreme voltages, that might cause nonlinear behavior. By addressing these aspects, we can gain deeper insights into the reliability and limitations of Ohm's Law in practical circuit applications.
| Characteristics | Values |
|---|---|
| Linearity of Ohm's Law | Generally linear for ohmic materials (e.g., metals) under constant temperature and within a specific voltage/current range. |
| Non-linearity Conditions | Occurs in non-ohmic materials (e.g., semiconductors, diodes, LEDs) or when temperature changes significantly. |
| Temperature Dependence | Resistance typically increases with temperature in metals, causing non-linearity if temperature varies. |
| Voltage/Current Range | Linear within a limited range; non-linearity appears at high voltages/currents due to material limitations. |
| Material Behavior | Ohmic materials follow Ohm's Law linearly; non-ohmic materials exhibit non-linear I-V characteristics. |
| Applications | Linear behavior is assumed in most circuit analysis; non-linearity is considered in specialized applications. |
| Mathematical Representation | Linear: ( V = IR ); Non-linear: ( V ) and ( I ) relationship varies with material properties. |
Explore related products
What You'll Learn
Temperature effects on resistance
Resistance in most conductors increases with temperature, a phenomenon rooted in the thermal excitation of atoms. As temperature rises, atoms vibrate more vigorously, impeding the flow of electrons and raising the material's resistivity. This effect is particularly pronounced in metals, where the relationship between resistance and temperature is often described by the equation \( R = R_0 [1 + \alpha (T - T_0)] \), where \( R \) is the resistance at temperature \( T \), \( R_0 \) is the resistance at a reference temperature \( T_0 \), and \( \alpha \) is the temperature coefficient of resistance. For example, copper has an \( \alpha \) of approximately \( 0.00393 \, ^{\circ}\text{C}^{-1} \), meaning its resistance increases by 0.393% for every degree Celsius rise in temperature.
This temperature-resistance relationship complicates the linearity of Ohm's Law, which assumes a constant resistance for a given material. In circuits operating under varying thermal conditions, the resistance of components like resistors or wires can fluctuate, causing deviations from the expected linear \( I = V/R \) relationship. For instance, a circuit designed to operate at 25°C may exhibit a 10% increase in resistance at 55°C, assuming a typical \( \alpha \) value for metals. Such variations can lead to unpredictable current or voltage drops, particularly in precision applications like analog sensors or temperature-sensitive instrumentation.
To mitigate temperature-induced resistance changes, engineers employ strategies such as selecting materials with low \( \alpha \) values, like manganin or constantan, for critical components. Alternatively, active compensation techniques, such as incorporating thermistors with negative temperature coefficients, can counteract the positive temperature effects of other resistive elements. For example, a circuit with a 100Ω resistor experiencing a 10% resistance increase at higher temperatures might pair it with a thermistor that decreases its resistance by 10% over the same temperature range, maintaining overall circuit stability.
Practical considerations extend to environmental control and component placement. In high-power applications, heat dissipation becomes critical; improper thermal management can exacerbate resistance fluctuations. For instance, a resistor rated for 1W dissipation, operating at 70% of its power rating, may experience a temperature rise of 40°C above ambient, significantly altering its resistance. Designers must account for such effects by ensuring adequate ventilation, using heat sinks, or selecting components with higher power ratings to minimize temperature-related drift.
In summary, temperature effects on resistance challenge the constancy of Ohm's Law linearity, particularly in dynamic thermal environments. Understanding the material-specific temperature coefficient of resistance, employing compensatory techniques, and implementing robust thermal management are essential steps to maintain circuit predictability. For those designing temperature-sensitive circuits, a proactive approach to these factors ensures reliability and performance across varying conditions.
