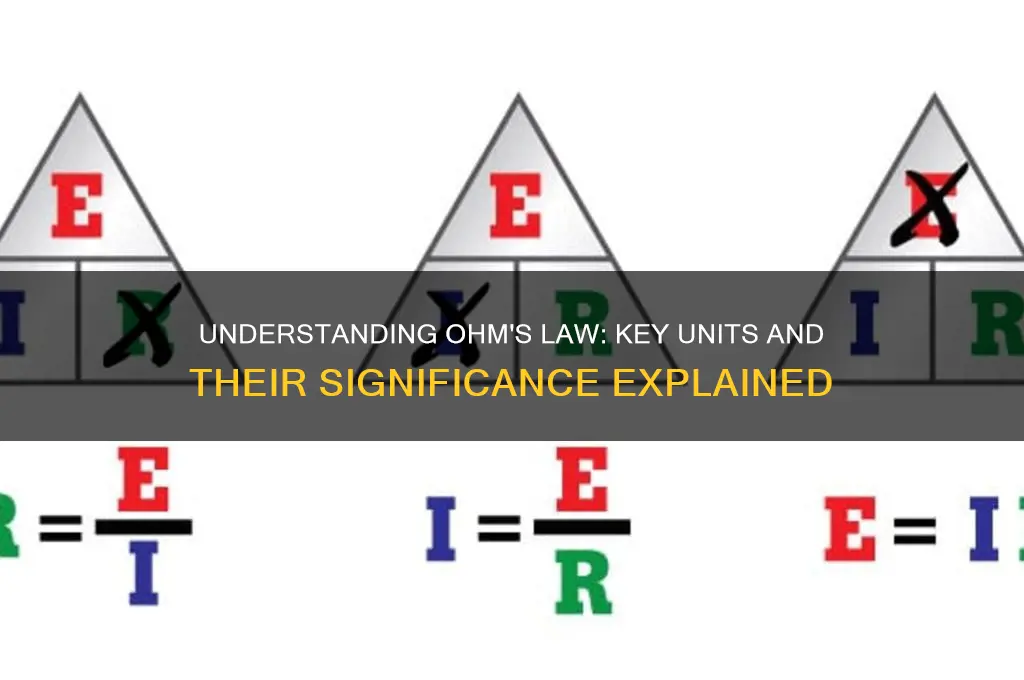

Ohm's Law, a fundamental principle in electrical circuits, establishes the relationship between voltage (V), current (I), and resistance (R). The law states that the current through a conductor is directly proportional to the voltage applied across it and inversely proportional to its resistance. The units associated with Ohm's Law are essential for understanding and applying this relationship in practical scenarios. Voltage is measured in volts (V), current in amperes (A), and resistance in ohms (Ω). These units are interconnected, as 1 ohm is defined as the resistance that allows 1 ampere of current to flow when a voltage of 1 volt is applied. Understanding these units is crucial for analyzing and designing electrical circuits, ensuring proper functionality, and preventing damage to components.
| Characteristics | Values |
|---|---|
| Voltage (V) | Volt (V) |
| Current (I) | Ampere (A) |
| Resistance (R) | Ohm (Ω) |
| Power (P) | Watt (W) |
| Conductance (G) | Siemens (S) |
| Charge (Q) | Coulomb (C) |
| Time (t) | Second (s) |
| Energy (E) | Joule (J) |
Explore related products
What You'll Learn
- Voltage (V): Measured in volts, represents electrical potential difference, a key factor in Ohm's Law
- Current (I): Amperes (A) measure flow rate of charge, directly linked to Ohm's Law
- Resistance (R): Ohms (Ω) quantify opposition to current, central to Ohm's Law calculations
- Power (P): Watts (W) indicate energy transfer rate, derived from Ohm's Law principles
- Conductance (G): Siemens (S) measure ease of current flow, reciprocal of resistance in Ohm's Law
Voltage (V): Measured in volts, represents electrical potential difference, a key factor in Ohm's Law
Voltage, measured in volts (V), is the cornerstone of Ohm's Law, representing the electrical potential difference that drives current through a conductor. Think of it as the "pressure" in an electrical circuit, pushing electrons from a higher potential to a lower one. Without voltage, there would be no flow of charge, and thus, no current. In the equation V = I * R (where I is current and R is resistance), voltage takes center stage as the independent variable, dictating the relationship between current and resistance. This fundamental unit is essential for understanding how electrical systems operate, from household wiring to complex industrial machinery.
To illustrate, consider a simple circuit with a 12-volt battery and a resistor. The voltage supplied by the battery creates an electric field that propels electrons through the resistor. If the resistor has a resistance of 4 ohms, Ohm's Law tells us the current (I) will be 3 amperes (I = V / R = 12V / 4Ω). Here, voltage acts as the driving force, determining how much current flows. Practical applications abound: in a smartphone charger, the voltage output (typically 5V) ensures the device charges efficiently without overheating. In medical devices like defibrillators, precise voltage control is critical for delivering safe and effective shocks.
Analyzing voltage’s role reveals its dual nature as both a cause and a consequence. While it drives current, it is also influenced by the circuit’s design. For instance, in series circuits, the total voltage is divided among components, whereas in parallel circuits, each component experiences the full voltage. This highlights the importance of voltage regulation in maintaining circuit integrity. Engineers and technicians often use multimeters to measure voltage, ensuring it remains within safe and operational limits. A voltage drop across a component, if too high, can indicate a fault, such as a short circuit or damaged wiring.
Persuasively, understanding voltage is not just for professionals—it’s a skill every homeowner should possess. Knowing how to check voltage can prevent electrical hazards, such as overloading circuits or using incompatible devices. For example, plugging a 220V appliance into a 110V outlet can cause immediate damage. Similarly, in renewable energy systems like solar panels, monitoring voltage ensures optimal performance and battery longevity. Practical tips include using voltage testers to verify outlet safety and investing in surge protectors to safeguard electronics from voltage spikes.
In conclusion, voltage is the linchpin of Ohm's Law, governing the behavior of electrical circuits. Its measurement in volts provides a clear, quantifiable way to assess and control electrical systems. Whether in high-tech applications or everyday scenarios, mastering voltage ensures efficiency, safety, and reliability. By recognizing its central role, one gains not just theoretical knowledge but a practical tool for navigating the electrified world around us.
