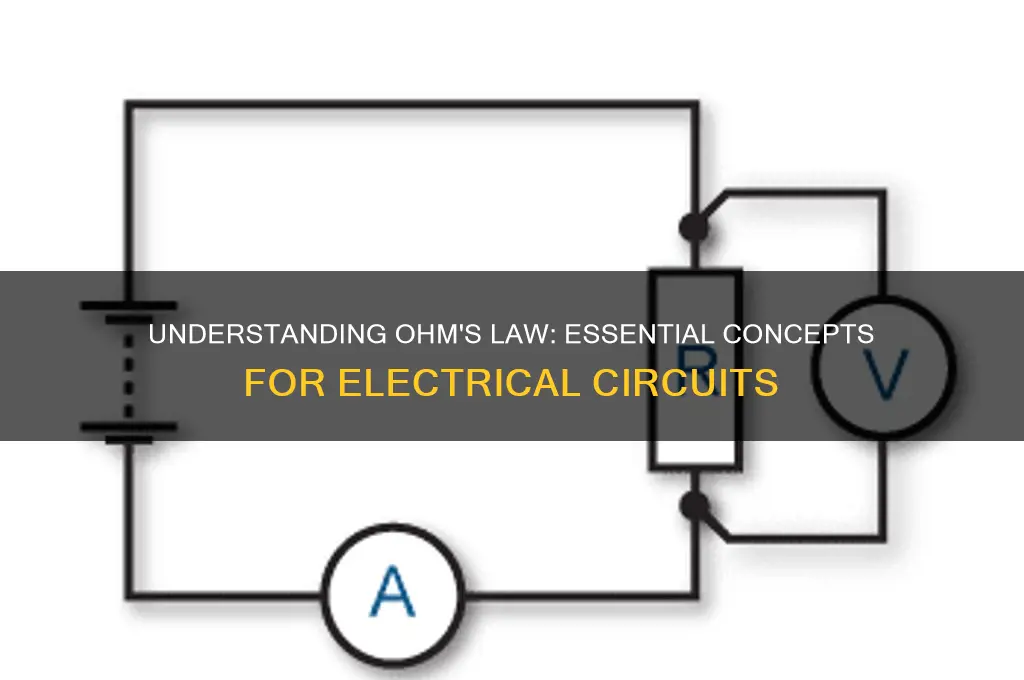

Understanding Ohm's Law is essential for anyone working with electrical circuits, as it provides a fundamental relationship between voltage (V), current (I), and resistance (R). Ohm's Law states that the current through a conductor between two points is directly proportional to the voltage across the two points, and inversely proportional to the resistance between them, mathematically expressed as V = I * R. This principle is crucial for designing, analyzing, and troubleshooting circuits, as it allows you to predict how changes in voltage or resistance will affect current flow. Whether you're a hobbyist, student, or professional, grasping Ohm's Law is the cornerstone for mastering electrical systems and ensuring safe and efficient operation.
| Characteristics | Values |
|---|---|
| Definition | Ohm's Law states that the current (I) flowing through a conductor between two points is directly proportional to the voltage (V) across the two points, and inversely proportional to the resistance (R) between them. |
| Mathematical Representation | V = I * R |
| Units | Voltage (V) is measured in Volts (V), Current (I) in Amperes (A), and Resistance (R) in Ohms (Ω) |
| Applications | Electrical circuits, electronics, power distribution, and circuit analysis |
| Limitations | Applies only to linear, bilateral, and ohmic conductors (e.g., metals) at constant temperature |
| Temperature Dependence | Resistance (R) can change with temperature, affecting the accuracy of Ohm's Law in some cases |
| Non-Ohmic Materials | Semiconductors, diodes, and electrolytes do not follow Ohm's Law due to their non-linear current-voltage characteristics |
| Power Dissipation | Can be calculated using P = V * I or P = I^2 * R, derived from Ohm's Law |
| Series Circuits | In series circuits, the total resistance (R_total) is the sum of individual resistances: R_total = R1 + R2 + ... + Rn |
| Parallel Circuits | In parallel circuits, the total resistance (R_total) is calculated as: 1/R_total = 1/R1 + 1/R2 + ... + 1/Rn |
| Kirchhoff's Laws | Ohm's Law is often used in conjunction with Kirchhoff's Voltage Law (KVL) and Kirchhoff's Current Law (KCL) for circuit analysis |
| Practical Uses | Designing circuits, calculating voltage drops, determining component ratings, and troubleshooting electrical issues |
| Historical Context | Named after German physicist Georg Simon Ohm, who published his findings in 1827 |
Explore related products
What You'll Learn
- Voltage, Current, Resistance Relationship: Understand how voltage, current, and resistance are interconnected in Ohm's Law
- Power Calculation: Learn to calculate electrical power using Ohm's Law and related formulas
- Series vs. Parallel Circuits: Differentiate how Ohm's Law applies to series and parallel circuit configurations
- Practical Applications: Explore real-world uses of Ohm's Law in electronics and electrical engineering
- Limitations of Ohm's Law: Identify scenarios where Ohm's Law does not apply, such as nonlinear devices
Voltage, Current, Resistance Relationship: Understand how voltage, current, and resistance are interconnected in Ohm's Law
Voltage, current, and resistance are the cornerstone trio of Ohm's Law, a fundamental principle in electrical circuits. Imagine water flowing through a pipe: voltage is the pressure driving the flow, current is the rate of water movement, and resistance is the pipe's narrowness that restricts the flow. This analogy illustrates the direct relationship between these elements. Ohm's Law mathematically expresses this relationship as V = I * R, where V is voltage (in volts), I is current (in amperes), and R is resistance (in ohms). This equation reveals that voltage is directly proportional to current when resistance is constant, and directly proportional to resistance when current is constant.
Understanding this interplay is crucial for designing and troubleshooting circuits. For instance, if you increase the voltage across a resistor while keeping resistance constant, the current will increase proportionally. Conversely, increasing resistance with a fixed voltage will decrease the current. This predictable behavior allows engineers to control and manipulate electrical flow in countless applications, from simple household appliances to complex industrial machinery.
Let's consider a practical example. Suppose you have a 12-volt battery connected to a 4-ohm resistor. Using Ohm's Law, you can calculate the current flowing through the circuit: I = V / R = 12V / 4Ω = 3A. This means 3 amperes of current will flow through the resistor. Now, if you replace the 4-ohm resistor with an 8-ohm resistor, the current will decrease to 1.5A (I = 12V / 8Ω). This demonstrates how changes in resistance directly impact current flow, given a constant voltage.
It's essential to recognize that Ohm's Law applies to ideal resistors in DC circuits. In real-world scenarios, factors like temperature, material properties, and frequency can influence resistance, particularly in AC circuits. Additionally, non-linear components like diodes and transistors don't follow Ohm's Law. However, for basic circuit analysis and many practical applications, Ohm's Law remains an invaluable tool.
Mastering the voltage-current-resistance relationship empowers you to predict and control electrical behavior. Whether you're a hobbyist building a simple LED circuit or a professional engineer designing complex systems, understanding this fundamental principle is key to success in the world of electronics.
Understanding Steven's Power Law: Key Facts and Common Misconceptions
You may want to see also
Explore related products
Power Calculation: Learn to calculate electrical power using Ohm's Law and related formulas
Electrical power, measured in watts (W), is the rate at which energy is transferred in an electrical circuit. Understanding how to calculate it is crucial for designing, troubleshooting, and optimizing electrical systems. Ohm’s Law, which relates voltage (V), current (I), and resistance (R), forms the foundation for power calculations. The core formula for power is \( P = VI \), but variations like \( P = I^2R \) and \( P = \frac{V^2}{R} \) are equally important, depending on the known variables. Mastering these formulas allows you to predict energy consumption, prevent overheating, and ensure components operate within safe limits.
To calculate power using Ohm’s Law, start by identifying the known values in your circuit. For instance, if you have a 12V supply and a 4Ω resistor, you can find the current using \( I = \frac{V}{R} \), which yields 3A. Then, apply \( P = VI \) to get 36W. Alternatively, if you know current and resistance, use \( P = I^2R \). For a 2A current through a 5Ω resistor, the power is \( 2^2 \times 5 = 20W \). These methods are particularly useful in practical scenarios, such as sizing fuses or determining the wattage of a heating element.
One common pitfall in power calculations is overlooking the relationship between power dissipation and component ratings. For example, a resistor rated for 0.5W will fail if subjected to higher power levels. To avoid this, always calculate power before connecting components. Additionally, when working with AC circuits, remember that power factor (the ratio of real power to apparent power) affects calculations. Use \( P = VI \cos(\theta) \) for accurate results in such cases. Practical tip: Always measure voltage and current directly across the component to ensure precision.
Comparing power calculation methods highlights their versatility. While \( P = VI \) is straightforward, \( P = I^2R \) is ideal when measuring current and resistance is easier than voltage. Conversely, \( P = \frac{V^2}{R} \) shines when voltage and resistance are known. For instance, in a 24V circuit with a 6Ω load, \( P = \frac{24^2}{6} = 96W \). Each formula has its niche, and choosing the right one saves time and reduces errors. Always cross-check results using multiple formulas when possible to ensure accuracy.
In real-world applications, power calculations are indispensable. For example, a homeowner installing LED lights needs to ensure the total wattage doesn’t exceed the circuit breaker’s rating. A 15A breaker on a 120V circuit can handle up to 1800W. If the LEDs consume 10W each, 180 lights are the maximum. Similarly, in industrial settings, calculating power helps size transformers and motors. Practical tip: Use a multimeter to measure voltage and current, then apply the formulas to verify theoretical calculations against actual values. This ensures both safety and efficiency.
Ending Civil Forfeiture: Strategies to Protect Property Rights and Justice
You may want to see also
Explore related products
Series vs. Parallel Circuits: Differentiate how Ohm's Law applies to series and parallel circuit configurations
In series circuits, Ohm's Law simplifies to a linear relationship where the total resistance is the sum of individual resistances. If you have three resistors of 10Ω, 20Ω, and 30Ω connected in series, the total resistance is 60Ω. This is because the same current flows through each component, and voltage drops add up across them. For instance, with a 12V battery, the current (I = V/R) would be 12V / 60Ω = 0.2A. This straightforward calculation highlights how Ohm's Law (V = IR) directly applies to series configurations, making it easy to predict behavior.
Parallel circuits, however, require a different approach. Here, components share the same voltage, but current divides among them. Total resistance in a parallel circuit is always less than any individual resistor’s value. For example, if those same 10Ω, 20Ω, and 30Ω resistors are connected in parallel, the total resistance (1/R_total = 1/10 + 1/20 + 1/30) calculates to approximately 5.45Ω. Applying Ohm's Law, a 12V battery would now deliver a total current of 12V / 5.45Ω ≈ 2.2A. This demonstrates how Ohm's Law in parallel circuits involves reciprocal relationships and current division, complicating but not defeating its utility.
A practical tip for troubleshooting: In series circuits, if one component fails open (infinite resistance), the entire circuit stops functioning because current cannot flow. In parallel circuits, a single open component only affects its branch, leaving others operational. Understanding this difference helps diagnose issues efficiently. For instance, in a string of series-connected LED lights, one burnt-out bulb will shut down the entire string, whereas parallel-connected lights allow the rest to stay lit if one fails.
When designing circuits, consider the load requirements. Series circuits are ideal for applications needing consistent current, like LED strings with resistors to limit current. Parallel circuits suit devices requiring stable voltage, such as household outlets powering multiple appliances. Ohm's Law remains the foundation for both, but its application shifts based on configuration. For beginners, start with series circuits to grasp basic voltage, current, and resistance relationships before tackling the more complex current divisions in parallel setups.
Mastering Citations: A Guide to Referencing the Uniform Law Commission
You may want to see also
Explore related products
Practical Applications: Explore real-world uses of Ohm's Law in electronics and electrical engineering
Ohms Law, the fundamental principle that relates current, voltage, and resistance in an electrical circuit, is not just a theoretical concept—it’s the backbone of practical electronics and electrical engineering. By understanding how voltage (V) equals current (I) multiplied by resistance (V = I * R), engineers and hobbyists alike can predict, control, and optimize circuit behavior. This relationship is critical in designing everything from household appliances to complex industrial systems.
Consider the design of LED lighting systems, a ubiquitous application of Ohms Law. LEDs require specific current levels to operate efficiently and safely. Using Ohms Law, engineers calculate the exact resistance needed in a current-limiting resistor to prevent the LED from burning out. For example, if an LED has a forward voltage of 2V and operates at 20mA, and the power supply is 5V, the resistor value is calculated as (5V - 2V) / 0.020A = 150Ω. This precise calculation ensures longevity and performance, demonstrating how Ohms Law translates directly into practical design decisions.
In the realm of power distribution, Ohms Law is essential for minimizing energy loss. High-voltage transmission lines use this principle to reduce resistive losses over long distances. By increasing voltage (as in V = I * R), the current decreases proportionally, reducing heat dissipation in the wires. For instance, a 1000W load at 100V requires 10A, but at 1000V, it only needs 1A, significantly cutting losses. This application highlights how Ohms Law underpins efficiency in large-scale electrical systems.
For DIY enthusiasts and students, Ohms Law is a diagnostic tool for troubleshooting circuits. If a device isn’t working, measuring voltage and current across components can reveal whether the issue is due to excessive resistance or a short circuit. For example, if a 12V circuit with a 10Ω resistor should draw 1.2A but only draws 0.6A, the resistance has effectively doubled, indicating a potential fault. This hands-on application of Ohms Law fosters problem-solving skills and a deeper understanding of circuit behavior.
Finally, in renewable energy systems like solar panels, Ohms Law ensures optimal power extraction. Maximum Power Point Tracking (MPPT) algorithms use voltage and current measurements to adjust the load resistance, maximizing energy harvest. For a solar panel producing 18V open-circuit and 5A short-circuit, the MPPT system dynamically adjusts to find the voltage and current combination that delivers peak power, typically around 15V and 4.5A. This real-time application of Ohms Law is critical for efficient energy conversion in sustainable technologies.
From LED lighting to power grids and renewable energy, Ohms Law is not just a theoretical cornerstone—it’s a practical tool that shapes the functionality and efficiency of modern electrical systems. Mastery of this principle empowers engineers and enthusiasts to design, troubleshoot, and optimize circuits with precision and confidence.
American Indian Law: Understanding Tribal Sovereignty
You may want to see also
Explore related products
Limitations of Ohm's Law: Identify scenarios where Ohm's Law does not apply, such as nonlinear devices
Ohm's Law, a cornerstone of electrical circuits, states that current (I) through a conductor is directly proportional to voltage (V) and inversely proportional to resistance (R), expressed as I = V/R. However, this elegant relationship assumes a linear relationship between voltage and current, which doesn't hold true for all components.
Nonlinear Devices: Breaking the Linear Mold
Imagine a diode, a device that allows current to flow easily in one direction but resists it in the opposite direction. Its current-voltage characteristic is sharply curved, not a straight line. Applying Ohm's Law here would lead to inaccurate predictions. Similarly, transistors, essential in amplifiers and switches, exhibit complex current-voltage relationships that defy simple proportionality.
Even seemingly simple components like incandescent light bulbs deviate from Ohm's Law as they heat up. Their resistance increases with temperature, causing the current to be lower than predicted by a constant resistance value.
Beyond Resistors: Where Ohm's Law Fails
Ohm's Law applies strictly to resistors, which are designed to have a constant resistance over a wide range of voltages and currents. However, many real-world components exhibit behaviors that fall outside this linear realm. Capacitors and inductors, for example, store and release energy, leading to phase shifts between voltage and current that Ohm's Law cannot account for.
Even materials themselves can be nonlinear. Some semiconductors, like those used in LEDs, have resistance that changes dramatically with applied voltage, making Ohm's Law inapplicable.
Practical Implications: When to Be Wary
Understanding the limitations of Ohm's Law is crucial for accurate circuit analysis and design. When dealing with nonlinear devices, rely on their specific current-voltage characteristics, often provided in datasheets. Circuit simulation software can also model these complex behaviors. Remember, Ohm's Law is a powerful tool, but it's not a universal truth. Recognizing its boundaries ensures accurate predictions and prevents costly mistakes in electrical engineering.
Ohio Property Management Agreements: Essential Legal Clauses and Requirements
You may want to see also
Frequently asked questions
Ohm's Law is a fundamental principle in electrical circuits that describes the relationship between voltage (V), current (I), and resistance (R). It states that the current through a conductor between two points is directly proportional to the voltage across the two points and inversely proportional to the resistance between them. Mathematically, it is expressed as V = I * R.
Ohm's Law is widely used in electrical engineering and electronics to calculate voltage, current, or resistance in a circuit. For example, it helps determine the appropriate resistor value for LED circuits, ensures safe current levels in wiring, and aids in troubleshooting electrical issues by identifying voltage drops or faulty components.
Ohm's Law applies primarily to ohmic materials (like metals) that exhibit a linear relationship between voltage and current. It does not hold for non-ohmic devices such as diodes, transistors, or electrolytes, where the relationship is nonlinear. Additionally, it assumes constant temperature and does not account for factors like frequency in AC circuits.
