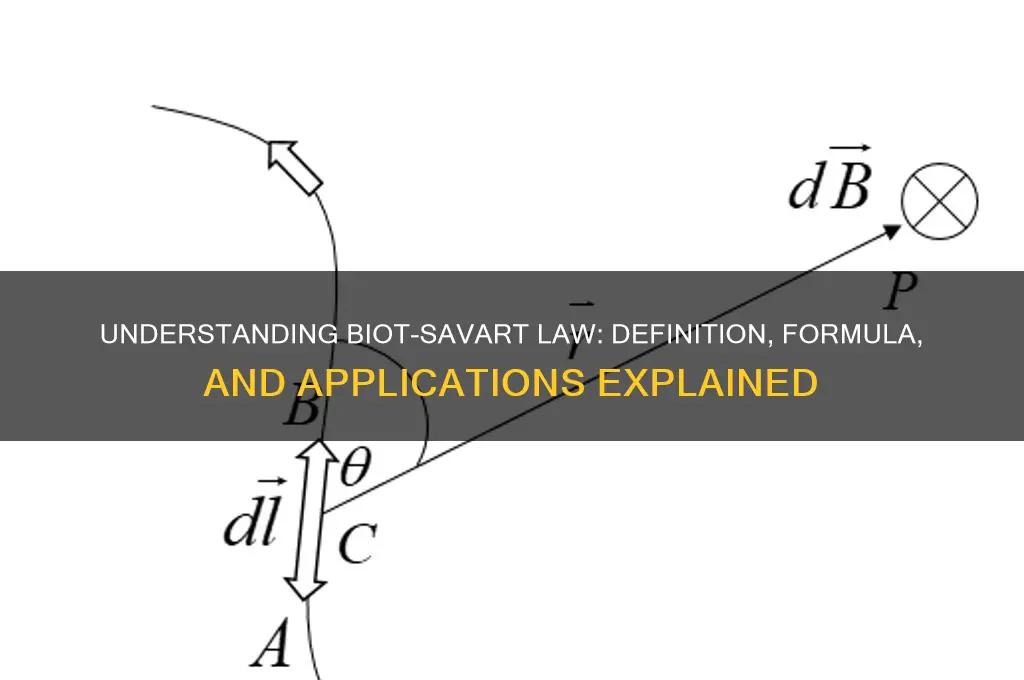

The Biot-Savart Law is a fundamental principle in electromagnetism that describes the magnetic field generated by a steady current. Named after French physicists Jean-Baptiste Biot and Félix Savart, this law provides a mathematical framework to calculate the magnetic field at any point in space due to a current-carrying conductor. It states that the magnetic field \( d\mathbf{B} \) produced by a small current element \( d\mathbf{l} \) carrying current \( I \) is directly proportional to the current, the length of the element, and the sine of the angle between the element and the vector from the element to the point where the field is being calculated, and inversely proportional to the square of the distance from the element to that point. Mathematically, it is expressed as \( d\mathbf{B} = \frac{\mu_0}{4\pi} \frac{I \, d\mathbf{l} \times \mathbf{\hat{r}}}{r^2} \), where \( \mu_0 \) is the permeability of free space, \( \mathbf{r} \) is the position vector from the current element to the point of interest, and \( \mathbf{\hat{r}} \) is the unit vector in the direction of \( \mathbf{r} \). This law is essential for understanding and predicting magnetic fields in various applications, from simple wires to complex electromagnetic systems.
| Characteristics | Values |
|---|---|
| Definition | A fundamental law in electromagnetism that describes the magnetic field generated by a steady current. |
| Mathematical Expression | B = (μ₀ / 4π) * ∫ (I * dl × r̂) / r² |
| Key Variables | B: Magnetic field, μ₀: Permeability of free space, I: Current, dl: Infinitesimal length element of the current, r: Distance from the current element to the point where the field is calculated, r̂: Unit vector in the direction of r |
| Direction of Magnetic Field | Determined by the right-hand rule: If you curl the fingers of your right hand in the direction of the current, your thumb points in the direction of the magnetic field. |
| Applications | Calculating magnetic fields due to current-carrying wires, loops, and other configurations. Designing electromagnets, solenoids, and other electromagnetic devices. |
| Limitations | Assumes steady current (no time-varying fields). Does not account for relativistic effects. |
| Historical Context | Formulated by Jean-Baptiste Biot and Félix Savart in 1820. |
| Relationship to Ampere's Law | Biot-Savart law is a more general form of Ampere's law, which is applicable to symmetric current distributions. |
| Units | Magnetic field (B) is measured in Tesla (T), current (I) in Amperes (A), length (dl) in meters (m), and distance (r) in meters (m). |
| Permeability of Free Space (μ₀) | Approximately 4π x 10^(-7) T·m/A (Tesla meter per Ampere) |
Explore related products
What You'll Learn
- Law Statement: Defines magnetic field generated by steady current, using current element and distance
- Mathematical Formulation: Integral equation relating magnetic field to current and position
- Applications: Used in designing electromagnets, solenoids, and current-carrying wire analysis
- Comparison with Ampere's Law: Biot-Savart for specific points, Ampere for closed loops
- Limitations: Assumes steady current and ignores relativistic effects
Law Statement: Defines magnetic field generated by steady current, using current element and distance
The Biot-Savart Law is a cornerstone in electromagnetism, offering a precise formula to calculate the magnetic field produced by a steady current. At its core, the law states that the magnetic field \( \mathbf{B} \) at a point in space is directly proportional to the current element \( I \, d\mathbf{l} \) and inversely proportional to the square of the distance \( r \) from the current element. Mathematically, it is expressed as \( d\mathbf{B} = \frac{\mu_0}{4\pi} \frac{I \, d\mathbf{l} \times \mathbf{\hat{r}}}{r^2} \), where \( \mu_0 \) is the permeability of free space, \( d\mathbf{l} \) is the infinitesimal current element, and \( \mathbf{\hat{r}} \) is the unit vector pointing from the current element to the observation point. This relationship highlights the fundamental interplay between current, distance, and magnetic field strength.
To apply the Biot-Savart Law effectively, consider the geometry of the current distribution. For a straight wire carrying current \( I \), the magnetic field at a perpendicular distance \( R \) from the wire can be derived by integrating the contributions of all current elements along the wire. The result simplifies to \( B = \frac{\mu_0 I}{2\pi R} \), a formula widely used in practical calculations. For more complex geometries, such as loops or solenoids, the integration becomes more intricate but follows the same principle: summing the contributions of infinitesimal current elements. This methodical approach ensures accuracy in predicting magnetic fields in diverse configurations.
One practical example of the Biot-Savart Law in action is the design of electromagnets. By understanding how current elements contribute to the magnetic field, engineers can optimize the coil geometry and current distribution to achieve a desired field strength. For instance, in a solenoid, the magnetic field inside is directly proportional to the current and the number of turns per unit length, as derived from the Biot-Savart Law. This insight allows for precise control over magnetic fields in applications like MRI machines or particle accelerators, where field uniformity and strength are critical.
A key takeaway from the Biot-Savart Law is its emphasis on the vector nature of magnetic fields. The cross product \( d\mathbf{l} \times \mathbf{\hat{r}} \) in the formula dictates the direction of the magnetic field, following the right-hand rule. This vectorial relationship is essential for solving problems involving non-symmetric current distributions or determining the field orientation in three-dimensional space. Mastering this aspect of the law enables a deeper understanding of electromagnetic phenomena and their practical implications.
In summary, the Biot-Savart Law provides a rigorous framework for calculating magnetic fields generated by steady currents, relying on the principles of current elements and distance. Its application ranges from simple wire configurations to complex electromagnetic devices, making it an indispensable tool in physics and engineering. By focusing on the law's mathematical structure and practical examples, one can harness its power to analyze and design systems where magnetic fields play a pivotal role.
Tennessee's Open Container Law: What You Need to Know
You may want to see also
Explore related products
Mathematical Formulation: Integral equation relating magnetic field to current and position
The Biot-Savart Law provides a precise mathematical framework for calculating the magnetic field generated by a steady current. At its core lies an integral equation that relates the magnetic field at a specific point in space to the current distribution and the position of that point relative to the current. This equation is expressed as:
∇ × B = μ₀J
However, for practical calculations, the differential form is often transformed into an integral representation:
B(r) = (μ₀/4π) ∫ (J(r') × (r - r') / |r - r'|³) dτ'
Here,
- B(r) represents the magnetic field vector at position r,
- Μ₀ is the permeability of free space (a fundamental constant approximately equal to 4π × 10⁻⁷ T·m/A),
- J(r') is the current density vector at position r',
- R - r' is the vector pointing from the current element at r' to the point r where the field is being calculated,
- |r - r'| is the magnitude of this distance vector, and
- Dτ' represents an infinitesimal volume element at r'.
This integral equation embodies the fundamental principle that the magnetic field at a point is the vector sum of contributions from all current elements, each weighted by the inverse cube of their distance and the sine of the angle between the current element and the position vector.
Key Steps for Application:
- Define the Current Distribution: Determine the spatial distribution of current, whether it's a straight wire, a loop, or a more complex geometry. This defines J(r').
- Choose a Point of Interest: Select the point r in space where you want to calculate the magnetic field.
- Set Up the Integral: Substitute the known values of J(r'), r, and r' into the integral equation.
- Evaluate the Integral: This often involves techniques from vector calculus, such as changing variables or using symmetry arguments to simplify the integration.
Cautions and Considerations:
- Symmetry is Your Friend: Exploiting symmetry in the current distribution can significantly simplify calculations. For example, the magnetic field at the center of a circular loop is directed along the loop's axis due to symmetry.
- Numerical Methods: For complex geometries, analytical integration may be intractable. Numerical methods like the finite element method can be employed to approximate the solution.
Practical Example:
Consider a long straight wire carrying a current I. By applying the Biot-Savart Law, we can derive the well-known formula for the magnetic field at a distance R from the wire: B = (μ₀I)/(2πR). This demonstrates how the integral equation can be used to obtain specific, quantifiable results.
Takeaway:
The integral equation of the Biot-Savart Law serves as a powerful tool for predicting magnetic fields generated by current distributions. While its application can be mathematically demanding, understanding its structure and leveraging symmetry allows for both analytical and numerical solutions, making it an indispensable tool in electromagnetism.
Understanding Japan's Legal Framework for Minors: Rights, Responsibilities, and Protections
You may want to see also
Explore related products
Applications: Used in designing electromagnets, solenoids, and current-carrying wire analysis
The Biot-Savart Law, a cornerstone in electromagnetism, provides a mathematical framework to calculate the magnetic field generated by a steady current. Its application in designing electromagnets is both precise and transformative. By quantifying the magnetic field at any point due to a current-carrying conductor, engineers can optimize the coil geometry, wire thickness, and current density to achieve desired magnetic strengths. For instance, in MRI machines, the law ensures uniform magnetic fields by guiding the arrangement of solenoid coils, critical for accurate imaging. This analytical approach eliminates trial-and-error, saving time and resources in development.
Designing solenoids, which are coils of wire wound in a helix, heavily relies on the Biot-Savart Law to predict magnetic field uniformity and strength. The law’s integration along the length of the solenoid simplifies to a formula for the magnetic field inside, *B = μ₀nI*, where *μ₀* is the permeability of free space, *n* is the number of turns per unit length, and *I* is the current. This formula is indispensable in applications like electromagnets for particle accelerators or inductors in electronics. However, practical solenoid design must account for edge effects and non-uniform current distribution, where the Biot-Savart Law provides detailed field maps for refinement.
Current-carrying wire analysis benefits from the Biot-Savart Law’s ability to model complex geometries. For example, in high-current power transmission lines, the law helps calculate the magnetic fields around the wires, ensuring compliance with safety standards and minimizing electromagnetic interference. A practical tip: for circular loops, the magnetic field at the center is *B = (μ₀I)/(2R)*, where *R* is the radius. This simplicity contrasts with the law’s full integral form, highlighting its adaptability to both basic and intricate scenarios.
Persuasively, the Biot-Savart Law’s utility extends beyond theoretical calculations to real-world problem-solving. In designing electromagnets for industrial lifting or magnetic levitation systems, the law enables engineers to balance field strength and energy efficiency. For instance, increasing the number of coil turns enhances the magnetic field but also raises resistance and heat dissipation. The law’s insights guide these trade-offs, ensuring optimal performance. Similarly, in solenoid valves used in fluid control systems, precise magnetic field calculations prevent leakage and improve reliability.
Comparatively, while Ampere’s Law offers a simpler approach for symmetric systems, the Biot-Savart Law excels in asymmetric or localized scenarios. For example, analyzing the magnetic field near a sharp bend in a wire requires the Biot-Savart Law’s point-by-point integration. This versatility makes it a preferred tool for detailed current-carrying wire analysis, such as in microelectronics where field uniformity is critical. In conclusion, the Biot-Savart Law is not just a theoretical construct but a practical guide for designing electromagnets, solenoids, and analyzing current-carrying wires with precision and efficiency.
Fire Hydrant Colors: Legal Standards and Their Practical Significance
You may want to see also
Explore related products
$15.26 $16.11
Comparison with Ampere's Law: Biot-Savart for specific points, Ampere for closed loops
The Biot-Savart Law and Ampère's Law are two fundamental tools in electromagnetism, each tailored to solve specific problems. While both describe magnetic fields generated by currents, their applications diverge sharply. Biot-Savart excels at calculating the magnetic field at a precise point in space due to a current-carrying wire or distribution. Ampère's Law, on the other hand, is designed for determining the integrated magnetic field around a closed loop, offering a more global perspective.
Understanding this distinction is crucial for efficiently tackling magnetic field problems.
Consider a scenario where you need to determine the magnetic field at the center of a circular loop carrying current. Biot-Savart Law would require you to integrate the contributions from infinitesimal segments of the wire, a potentially tedious process. Ampère's Law, however, provides a direct relationship between the current enclosed by the loop and the magnetic field, yielding the answer with significantly less effort. This example highlights Ampère's Law's strength in handling symmetric geometries and closed paths.
Conversely, imagine calculating the magnetic field at a point near a long, straight wire. Biot-Savart Law shines here, allowing for a straightforward calculation based on the distance from the wire and the current. Ampère's Law, while applicable in principle, would necessitate constructing an appropriate Amperian loop, potentially introducing unnecessary complexity.
The key takeaway is that the choice between Biot-Savart and Ampère's Law hinges on the nature of the problem. For localized field calculations, Biot-Savart's point-by-point approach is often more direct. When dealing with closed loops and symmetric systems, Ampère's Law offers a powerful shortcut, leveraging the symmetry to simplify the calculation.
It's important to note that these laws are not mutually exclusive. In some cases, a combination of both approaches might be necessary for a complete solution. A deep understanding of their strengths and limitations empowers physicists and engineers to navigate the complexities of magnetic fields with precision and efficiency.
India's Assault Laws: What Needs to Change?
You may want to see also
Explore related products
Limitations: Assumes steady current and ignores relativistic effects
The Biot-Savart Law, a cornerstone in magnetostatics, elegantly describes the magnetic field generated by a steady current. However, its elegance comes with a caveat: it assumes the current is constant in time. This assumption simplifies calculations but limits the law's applicability to scenarios where current fluctuations are negligible. For instance, in electronic circuits operating at frequencies below 1 kHz, the current can often be approximated as steady, making Biot-Savart a reliable tool. Yet, as frequencies rise—say, in high-speed digital circuits or radiofrequency applications—this assumption breaks down. The law fails to account for the time-varying nature of the current, leading to inaccuracies in predicting magnetic fields.
Consider a practical example: a 50 Hz alternating current (AC) in a household circuit. At this frequency, the current changes direction 100 times per second. Biot-Savart’s steady-current assumption cannot capture the dynamic magnetic field produced, which instead requires Maxwell’s equations, specifically Ampere’s Law with Maxwell’s addition. This limitation underscores the importance of matching the tool to the problem: Biot-Savart is ideal for static or low-frequency scenarios but inadequate for higher frequencies where time-varying effects dominate.
Another critical limitation of the Biot-Savart Law is its disregard for relativistic effects. At everyday speeds, these effects are imperceptible, but they become significant in high-velocity scenarios. For example, in particle accelerators, where electrons travel at speeds approaching the speed of light (e.g., 0.99c), the magnetic field calculated using Biot-Savart would differ substantially from reality. Relativistic corrections, such as those provided by the Liénard-Wiechert potentials, are necessary to accurately describe the field. This limitation highlights the law’s classical roots and its inapplicability to extreme conditions.
To illustrate, imagine a current-carrying wire in a laboratory versus one in a relativistic spacecraft. In the lab, Biot-Savart yields precise results, but in the spacecraft, where velocities are a significant fraction of *c*, the law’s predictions diverge from experimental observations. This discrepancy is not merely academic; it has practical implications in fields like astrophysics and high-energy physics, where relativistic effects are non-negligible.
In conclusion, while the Biot-Savart Law is a powerful tool for calculating magnetic fields in steady-current scenarios, its limitations must be acknowledged. It falters in the face of time-varying currents and relativistic speeds, necessitating the use of more advanced frameworks like Maxwell’s equations or relativistic electrodynamics. Understanding these constraints ensures the law is applied judiciously, maximizing its utility while avoiding pitfalls. For engineers and physicists, this means recognizing the boundaries of classical approximations and embracing more comprehensive theories when needed.
Exploring Law Office Technology: Tools and Trends for Modern Practices
You may want to see also
Frequently asked questions
The Biot-Savart Law is a fundamental equation in electromagnetism that describes the magnetic field generated by a steady current. It relates the magnetic field to the current element, the distance from the current element, and the permeability of free space.
The Biot-Savart Law is mathematically expressed as: d B = (μ₀ / 4π) * (I * d l × r) / r³, where dB is the magnetic field increment, μ₀ is the permeability of free space, I is the current, dl is the current element, r is the distance from the current element, and × represents the cross product.
The Biot-Savart Law is used to calculate magnetic fields produced by various current distributions, such as straight wires, loops, and solenoids. It is also applied in the design of electromagnets, motors, and other electrical devices.
The Biot-Savart Law is used to calculate magnetic fields for specific current distributions, whereas Ampere's Law relates the integrated magnetic field around a closed loop to the total current passing through the loop. Ampere's Law is more suitable for highly symmetric systems, while the Biot-Savart Law is more general.
The Biot-Savart Law assumes a steady current and neglects the effects of magnetic materials. It also requires knowledge of the current distribution and can be computationally intensive for complex geometries. Additionally, it does not account for relativistic effects or time-varying fields.
