Crystallography is a scientific field that studies the arrangement of atoms in crystalline solids, providing insights into their structure, properties, and behavior. It plays a crucial role in materials science, chemistry, biology, and geology by revealing the atomic and molecular organization within crystals. The foundation of crystallography lies in its fundamental laws, which describe the geometric patterns and symmetries observed in crystalline structures. These laws include the Law of Constancy of Interfacial Angles, stating that the angles between corresponding faces of a crystal are constant for a given substance, and the Law of Rational Indices, which asserts that the intercepts of a crystal face with the crystallographic axes are inversely proportional to integers. Understanding these laws is essential for interpreting diffraction patterns, solving crystal structures, and advancing applications in fields such as drug discovery, semiconductor technology, and mineralogy.
| Characteristics | Values |
|---|---|
| Definition | Crystallography is the scientific study of the arrangement of atoms in crystalline solids, their structure, and properties. |
| Laws of Crystallography | 1. Law of Constancy of Intercepts: The intercepts of a crystal face with the crystallographic axes are constant for a given crystal form. |
| 2. Law of Rational Indices: The intercepts of a crystal face with the axes are inversely proportional to the Miller indices (h, k, l), which are always integers. | |
| 3. Law of Symmetry: Crystal structures exhibit symmetry elements such as rotation axes, mirror planes, and inversion centers. | |
| Techniques | X-ray diffraction, neutron diffraction, electron diffraction, and single-crystal X-ray crystallography. |
| Applications | Material science, mineralogy, chemistry, biology (e.g., protein structure determination), and pharmaceuticals. |

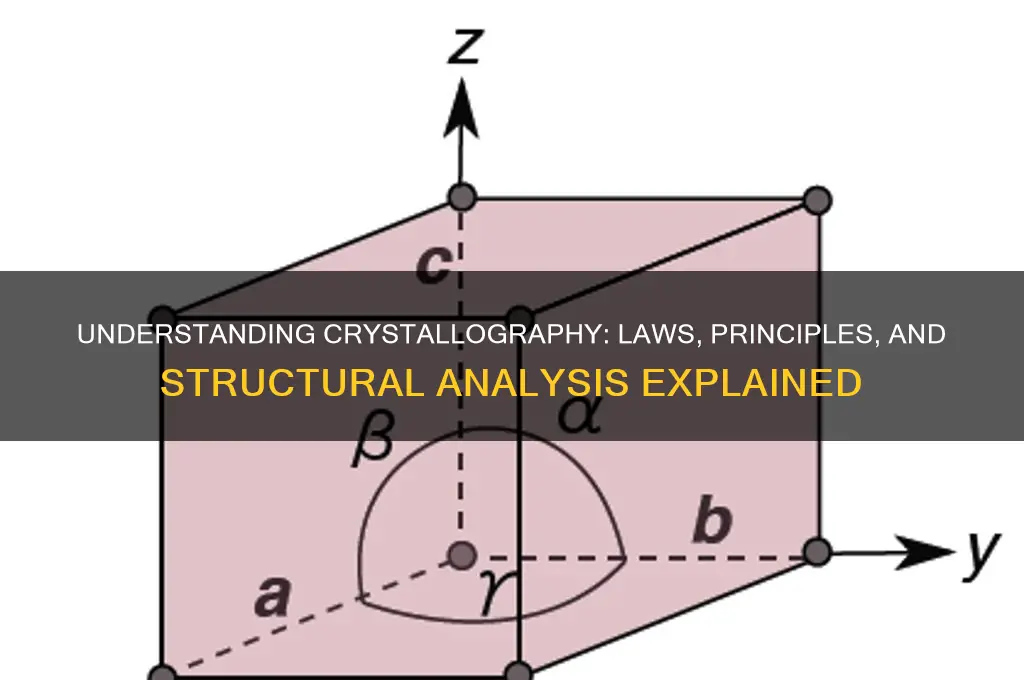

| Unit Cell | The smallest repeating unit of a crystal lattice, defined by lattice parameters (a, b, c, α, β, γ). |
| Crystal Systems | 1. Cubic, 2. Tetragonal, 3. Orthorhombic, 4. Monoclinic, 5. Triclinic, 6. Trigonal (Rhombohedral), 7. Hexagonal. |
| Bravais Lattices | 14 distinct lattices derived from the 7 crystal systems, considering lattice centering (primitive, body-centered, face-centered). |
| Diffraction Patterns | Used to determine atomic positions and interatomic distances in crystals. |
| Space Groups | 230 unique space groups describe the symmetry of crystal structures in three dimensions. |
Explore related products
What You'll Learn
- X-ray Crystallography Basics: Uses X-rays to determine atomic structures of crystals via diffraction patterns
- Bragg’s Law: Relates wavelength, angle, and crystal lattice spacing for diffraction: nλ = 2d sinθ
- Laue’s Law: Describes diffraction conditions in crystals using wave vectors and reciprocal lattice
- Friedel’s Law: States intensities of hkl and -h-k-l reflections are equal in non-chiral crystals
- Systematic Absences: Certain reflections are absent due to lattice symmetry and glide/screw axes
X-ray Crystallography Basics: Uses X-rays to determine atomic structures of crystals via diffraction patterns
X-ray crystallography is a powerful technique that reveals the atomic and molecular structure of crystals by analyzing how they scatter X-rays. When an X-ray beam strikes a crystal, it interacts with the electrons of the atoms, producing a distinctive diffraction pattern. This pattern, captured on a detector, contains the information needed to reconstruct the crystal’s three-dimensional structure. The method relies on the principle that the arrangement of atoms in a crystal causes constructive and destructive interference of X-rays, creating a unique pattern of spots or rings. By measuring the angles and intensities of these diffracted beams, scientists can deduce the positions of atoms within the crystal lattice.
The process begins with obtaining a high-quality crystal, which is critical for success. Crystals must be pure, well-ordered, and large enough to produce clear diffraction patterns. Once a suitable crystal is prepared, it is exposed to a monochromatic X-ray beam. The resulting diffraction pattern is governed by three fundamental laws of crystallography: Bragg’s Law, Laue’s Conditions, and the Principle of Reciprocity. Bragg’s Law, in particular, states that constructive interference occurs when the path difference between X-rays scattered by adjacent planes of atoms equals an integer multiple of the wavelength. Mathematically, this is expressed as *nλ = 2d sinθ*, where *n* is an integer, *λ* is the X-ray wavelength, *d* is the interplanar spacing, and *θ* is the angle of incidence.
Practical applications of X-ray crystallography span multiple fields, from chemistry and biology to materials science. For instance, it has been instrumental in determining the structures of complex biomolecules like proteins and DNA, enabling breakthroughs in drug design and disease understanding. In materials science, it helps characterize the atomic arrangements in semiconductors, alloys, and minerals, guiding the development of new materials with specific properties. To perform X-ray crystallography, specialized equipment is required, including an X-ray source (typically a rotating anode or synchrotron), a goniometer to manipulate the crystal, and a detector to capture the diffraction pattern. Modern software then processes the data to generate an electron density map, from which the atomic structure is derived.
Despite its power, X-ray crystallography has limitations. It requires crystalline samples, which can be challenging to obtain for certain substances, such as membrane proteins or amorphous materials. Additionally, the technique provides a static picture of the structure, which may not capture dynamic processes or conformational changes. To address these challenges, complementary techniques like cryo-electron microscopy or nuclear magnetic resonance are often used. Nonetheless, X-ray crystallography remains a cornerstone of structural science, offering unparalleled precision in resolving atomic arrangements.
For those interested in applying X-ray crystallography, practical tips include optimizing crystal growth conditions (e.g., temperature, pH, and solvent composition) and using cryoprotectants to prevent radiation damage during data collection. Synchrotron facilities, with their high-intensity X-ray beams, are ideal for collecting data quickly and efficiently, reducing exposure times and minimizing damage to the sample. Understanding the underlying principles and laws of crystallography is essential for interpreting results accurately and troubleshooting experimental issues. With careful planning and execution, X-ray crystallography can unlock the atomic secrets of crystalline materials, driving innovation across scientific disciplines.
Understanding Hindu Law of Property: Rights, Inheritance, and Succession Explained
You may want to see also
Explore related products
Bragg’s Law: Relates wavelength, angle, and crystal lattice spacing for diffraction: nλ = 2d sinθ
Crystallography is the scientific study of the arrangement of atoms in crystalline solids, and one of its cornerstone principles is Bragg's Law. This law, formulated by William Lawrence Bragg and his father William Henry Bragg, provides a mathematical framework to understand how X-rays or other waves interact with the periodic structure of crystals. The equation *nλ = 2d sinθ* is the heart of this law, where *n* is the order of diffraction, *λ* is the wavelength of the incident radiation, *d* is the spacing between crystal lattice planes, and *θ* is the angle of incidence. This relationship is crucial for determining the atomic structure of materials, from minerals to proteins.
To apply Bragg's Law in practice, consider the process of X-ray diffraction. When a beam of X-rays with a specific wavelength (e.g., 1.54 Å for copper Kα radiation) strikes a crystal at a particular angle, constructive interference occurs only if the path difference between the waves reflects off adjacent lattice planes equals an integer multiple of the wavelength. For example, if *θ* = 30°, *λ* = 1.54 Å, and *n* = 1, solving for *d* yields *d = λ / (2 sinθ) ≈ 2.72 Å*. This calculation reveals the spacing between the crystal planes, a critical step in structural analysis. Precision in measuring angles and wavelengths is essential, as small errors can lead to significant discrepancies in *d*.
Bragg's Law is not just a theoretical tool but a practical one with wide-ranging applications. In materials science, it helps identify phases in alloys or detect defects in semiconductors. In biology, it underpins X-ray crystallography, enabling the determination of protein structures at atomic resolution. For instance, the discovery of the double-helix structure of DNA relied heavily on diffraction patterns analyzed using Bragg's Law. However, the law has limitations: it assumes a perfect crystal lattice and is less effective for amorphous materials or those with large unit cells. Researchers must also account for factors like radiation damage and sample preparation, which can affect diffraction results.
A comparative analysis highlights the elegance of Bragg's Law in contrast to other diffraction theories. While the Laue method uses a continuous spectrum of wavelengths, Bragg's approach focuses on a single wavelength, simplifying calculations. Similarly, the powder method extends Bragg's Law to polycrystalline samples by integrating diffraction patterns over many crystal orientations. Despite its simplicity, Bragg's Law remains indispensable due to its direct relationship between measurable quantities (angle, wavelength) and the atomic structure (*d*). Its versatility ensures its relevance in both academic research and industrial applications, from drug development to semiconductor manufacturing.
In conclusion, Bragg's Law is a foundational principle in crystallography, bridging the gap between macroscopic measurements and atomic-scale structures. Its equation *nλ = 2d sinθ* is both a guide for experimentation and a key to unlocking the secrets of crystalline materials. By understanding and applying this law, scientists can decipher the intricate arrangements of atoms, paving the way for advancements in technology, medicine, and beyond. Whether in a laboratory or an industrial setting, Bragg's Law remains an essential tool for anyone working with crystalline structures.
Ohio Seat Belt Law Fine: Understanding Penalties for Non-Compliance
You may want to see also
Explore related products
Laue’s Law: Describes diffraction conditions in crystals using wave vectors and reciprocal lattice
Crystallography is the scientific study of the arrangement of atoms in crystalline solids, and it relies on fundamental laws to interpret diffraction patterns. Among these, Laue's Law stands out for its elegant description of diffraction conditions in crystals. Formulated by Max von Laue in 1912, this law explains how X-rays or other waves interact with the periodic structure of a crystal lattice. It states that diffraction occurs when the difference between the path lengths of waves scattered by adjacent planes in the crystal is an integer multiple of the wavelength. Mathematically, this is expressed as Δ = nλ, where Δ is the path difference, n is an integer, and λ is the wavelength of the incident wave. This principle laid the foundation for understanding how crystals diffract radiation, enabling scientists to determine their atomic structures.
To apply Laue's Law, one must consider the concept of wave vectors and the reciprocal lattice. The wave vector k represents the direction and magnitude of the wave's propagation, and its change upon scattering is crucial for diffraction. In a crystal, the reciprocal lattice is a mathematical construct where each point corresponds to a set of planes in the real lattice. Diffraction occurs when the scattering vector Δk (the difference between the incident and scattered wave vectors) matches a vector in the reciprocal lattice. This condition is succinctly captured by the equation Δk = G, where G is a reciprocal lattice vector. By analyzing these vectors, researchers can predict and interpret diffraction patterns, revealing the symmetry and spacing of atomic planes within the crystal.
A practical example of Laue's Law in action is the Laue diffraction experiment, where a continuous spectrum of X-rays is directed at a crystal. The resulting diffraction pattern consists of spots or rings, each corresponding to a specific set of lattice planes. For instance, in a cubic crystal, the reciprocal lattice vectors are symmetrically arranged, leading to a characteristic pattern of spots. By measuring the angles and intensities of these spots, scientists can deduce the crystal's unit cell dimensions and atomic positions. This technique is particularly useful in materials science for studying the quality and orientation of crystalline samples, such as semiconductors or minerals.
While Laue's Law is powerful, its application requires careful consideration of experimental conditions. The incident radiation must have a broad wavelength range to ensure that at least one wavelength satisfies the diffraction condition for each set of planes. Additionally, the crystal must be sufficiently large and defect-free to produce clear diffraction patterns. Modern advancements, such as synchrotron X-ray sources and area detectors, have enhanced the precision and efficiency of Laue diffraction experiments. However, interpreting the data still demands a deep understanding of both the law and the crystal's symmetry, making it a specialized yet indispensable tool in crystallography.
In conclusion, Laue's Law bridges the gap between the macroscopic diffraction pattern and the microscopic arrangement of atoms in a crystal. By leveraging wave vectors and the reciprocal lattice, it provides a framework for predicting and analyzing diffraction conditions. Whether used in academic research or industrial applications, this law remains a cornerstone of crystallography, enabling scientists to unravel the complex structures of crystalline materials with remarkable precision. Its enduring relevance underscores the elegance and utility of fundamental principles in understanding the natural world.
Unveiling the Financial Backers of Hunting Conservation Legislation
You may want to see also
Explore related products
![Problems in Contract Law: Cases and Materials [Connected eBook with Study Center] (Aspen Casebook)](https://m.media-amazon.com/images/I/71KVwHbBZ1L._AC_UY218_.jpg)
Friedel’s Law: States intensities of hkl and -h-k-l reflections are equal in non-chiral crystals
In the realm of crystallography, Friedel's Law stands as a fundamental principle that governs the behavior of X-ray diffraction patterns in non-chiral crystals. This law asserts that the intensities of the *hkl* and *-h-k-l* reflections are equal, a phenomenon that arises from the absence of a preferred handedness in the crystal structure. To understand its significance, consider the diffraction experiment: when X-rays interact with a crystal lattice, they produce a pattern of reflections indexed by Miller indices (*hkl*). In non-chiral crystals, where the arrangement of atoms lacks asymmetry, the diffraction pattern exhibits a unique symmetry. Friedel's Law quantifies this symmetry by equating the intensities of reciprocal reflections, providing a critical tool for phase determination in crystallographic studies.
Analytically, Friedel's Law is rooted in the mathematical description of crystal structures. The structure factor, which describes the amplitude and phase of a reflection, is given by the sum of atomic scattering factors weighted by their positions in the unit cell. For non-chiral crystals, the atomic scattering factors are real numbers, and the structure factors for *hkl* and *-h-k-l* reflections become complex conjugates of each other. Since the intensity of a reflection is proportional to the square of the magnitude of the structure factor, the intensities of *hkl* and *-h-k-l* reflections are necessarily equal. This equality simplifies data analysis, as it reduces the number of independent reflections that need to be measured, thereby enhancing the efficiency of structure determination.
From a practical standpoint, Friedel's Law is particularly useful in protein crystallography, where non-chiral crystals are common. Proteins composed of L-amino acids typically form non-chiral crystals, making Friedel's Law applicable. For instance, in a diffraction experiment on a protein crystal, the observed intensities of *hkl* and *-h-k-l* reflections can be averaged to improve the signal-to-noise ratio. This averaging not only enhances data quality but also aids in the phase problem, a critical step in determining the three-dimensional structure of the protein. Researchers often use this approach in conjunction with other methods, such as molecular replacement or anomalous scattering, to obtain a complete structural model.
However, it is essential to recognize the limitations of Friedel's Law. While it holds true for non-chiral crystals, it does not apply to chiral crystals, where the intensities of *hkl* and *-h-k-l* reflections may differ due to the presence of a preferred handedness. Additionally, in cases where the crystal contains heavy atoms or exhibits significant anomalous scattering, the equality of intensities may be violated. Researchers must therefore carefully assess the crystallographic symmetry and experimental conditions before applying Friedel's Law. Failure to do so can lead to incorrect phase determination and, consequently, an inaccurate structural model.
In conclusion, Friedel's Law is a cornerstone of crystallography, offering a powerful tool for simplifying and enhancing the analysis of diffraction data from non-chiral crystals. Its application in fields such as protein crystallography underscores its practical importance, enabling researchers to overcome challenges in structure determination. By understanding the underlying principles and limitations of Friedel's Law, scientists can leverage its benefits while avoiding potential pitfalls, ultimately advancing our knowledge of molecular structures and their functions.
Understanding England's Copyright Laws: Essential Insights for Creators and Users
You may want to see also
Explore related products
Systematic Absences: Certain reflections are absent due to lattice symmetry and glide/screw axes
In the intricate world of crystallography, systematic absences emerge as a fascinating phenomenon where specific reflections vanish from diffraction patterns, not due to experimental errors, but as a direct consequence of the crystal's inherent symmetry. These absences are not random; they follow predictable patterns dictated by the lattice symmetry and the presence of glide or screw axes. Understanding these systematic absences is crucial for accurately determining crystal structures, as they provide insights into the underlying symmetry elements that govern the arrangement of atoms within the lattice.
Consider a crystal with a glide plane. A glide plane combines a reflection with a translation parallel to the plane. When X-rays interact with such a crystal, certain reflections are systematically absent because the glide operation imposes a condition that cannot be satisfied by the diffraction process. For instance, if the translation fraction is ½, reflections where the sum of the h, k, and l indices is odd will be absent. This is because the glide operation introduces a phase shift that cancels out these specific reflections, rendering them invisible in the diffraction pattern.
Screw axes, another symmetry element, also lead to systematic absences. A screw axis combines a rotation with a translation along the axis. The translation fraction determines which reflections will be absent. For example, a 2₁ screw axis (a twofold rotation with a translation of ½ along the axis) will cause reflections where l is odd to disappear. This occurs because the screw operation introduces a phase relationship that results in destructive interference for these reflections. By analyzing these absences, crystallographers can deduce the presence and type of screw axes in the crystal structure.
Practical tips for identifying systematic absences include carefully examining the diffraction pattern for missing reflections and correlating these absences with the crystal's known or suspected symmetry. Software tools like *XDS* or *GSAS-II* can assist in indexing reflections and identifying patterns of absences. Additionally, consulting symmetry tables, such as those provided by the International Tables for Crystallography, can help in interpreting the observed absences. For beginners, starting with simple crystal systems (e.g., cubic or tetragonal) and gradually moving to more complex ones can build intuition about how symmetry elements influence diffraction patterns.
In conclusion, systematic absences are not mere anomalies but powerful diagnostic tools in crystallography. They reveal the hidden symmetry elements within a crystal, guiding the determination of its structure. By mastering the principles behind these absences, crystallographers can transform seemingly missing data into a wealth of information about the crystal's lattice and its atomic arrangement. This knowledge is indispensable for fields ranging from materials science to drug discovery, where understanding crystal structures is paramount.
Is Judge Judy a Real Court? Unraveling the Legal Truth
You may want to see also
Frequently asked questions
Crystallography is the scientific study of the arrangement of atoms in crystalline solids. It involves determining the internal structure of crystals by analyzing their diffraction patterns, typically using X-rays, neutrons, or electrons.
The laws of crystallography are fundamental principles governing crystal structures. They include the Law of Constancy of Interfacial Angles, the Law of Rational Indices, and the Law of Symmetry, which describe the geometric properties and atomic arrangements in crystals.
The Law of Constancy of Interfacial Angles states that the angles between corresponding faces of a crystal are constant for a given mineral, regardless of the size or shape of the crystal.
The Law of Rational Indices states that the intercepts of a crystal face with the crystallographic axes, when expressed in terms of the unit cell dimensions, are always in the ratio of small whole numbers. This law helps in identifying and classifying crystal structures.
