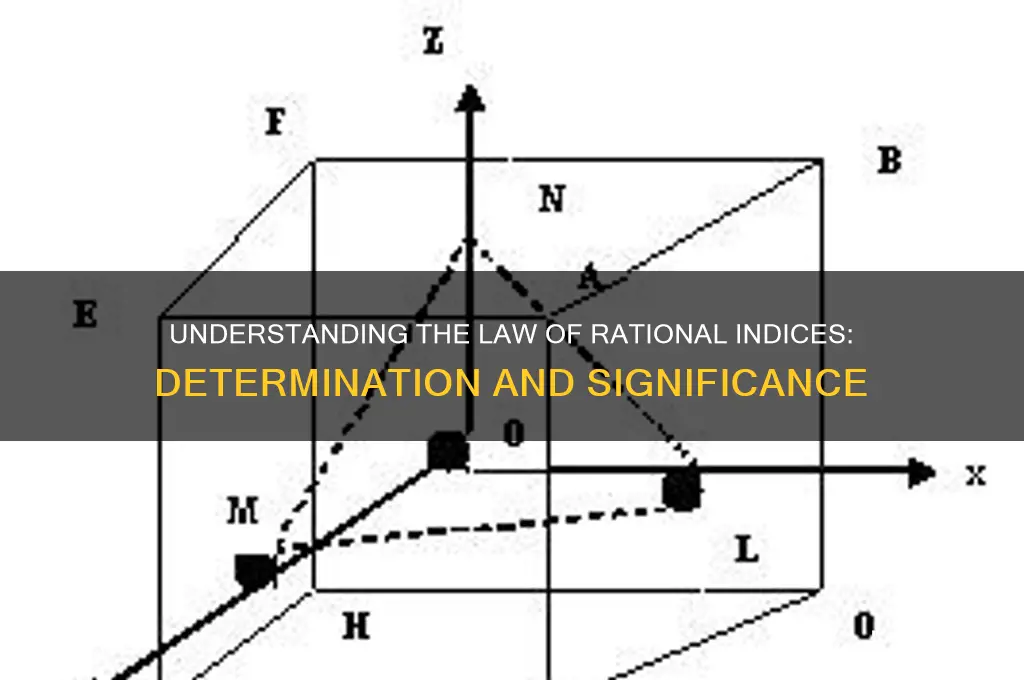

The Law of Rational Indices, a fundamental principle in crystallography, states that the intercepts of a crystal face with the crystallographic axes, when expressed in terms of the unit cell dimensions, are inversely proportional to prime integers. These integers, known as the Miller indices (h, k, l), describe the orientation of the crystal face relative to the lattice. To determine these indices, one measures the intercepts of the crystal face along the a, b, and c axes of the unit cell, takes their reciprocals, and then reduces them to the smallest set of whole numbers while maintaining their ratio. This process ensures that the indices are always rational numbers, reflecting the inherent symmetry and periodicity of the crystal lattice. The Law of Rational Indices, formulated by William Hallowes Miller in 1839, remains a cornerstone in understanding and classifying crystal structures.
| Characteristics | Values |
|---|---|
| Definition | The Law of Rational Indices states that the intercepts of a crystal face with the crystallographic axes (a, b, c) are inversely proportional to the Miller indices (h, k, l) and are always in the simplest integer ratio. |
| Mathematical Representation | Intercepts along a, b, c axes are ( \frac ), ( \frac ), ( \frac ), where h, k, l are smallest integers. |
| Purpose | Determines the Miller indices of crystal planes and directions in a lattice. |
| Applicability | Applies to all crystalline materials with a regular, repeating lattice structure. |
| Determination Method | 1. Measure intercepts of a crystal face with the crystallographic axes. 2. Take reciprocals of the intercepts. 3. Reduce to smallest integers to obtain (h, k, l). |
| Sign Convention | Positive indices indicate intercepts in the positive direction of the axis; negative indices indicate the opposite direction. |
| Significance | Provides a systematic way to describe crystal planes and directions, essential for understanding crystal structure and symmetry. |
| Limitations | Assumes ideal crystal shapes; real crystals may have irregularities or defects. |
| Historical Context | Formulated by William Hallowes Miller in 1839, based on earlier work by Haüy and others. |
| Relation to Crystal Lattice | Directly linked to the unit cell dimensions (a, b, c) and angles (α, β, γ) of the crystal lattice. |
| Practical Applications | Used in X-ray crystallography, materials science, mineralogy, and solid-state physics. |
| Example | For a plane intercepting axes at ( \frac{2} ), ( \frac{3} ), ( \frac{1} ), the Miller indices are (2, 3, 1). |
Explore related products
What You'll Learn
- Definition of Rational Indices: Understanding the concept and purpose of rational indices in crystallography
- Historical Development: Tracing the origins and evolution of the law of rational indices
- Intercepts and Planes: How intercepts on crystal axes define Miller indices for lattice planes
- Determination Methods: Techniques to calculate and verify rational indices in crystal structures
- Significance in Crystallography: Role of rational indices in studying crystal symmetry and properties
Definition of Rational Indices: Understanding the concept and purpose of rational indices in crystallography
The law of rational indices is a cornerstone in crystallography, providing a systematic way to describe the planes within a crystal lattice. Rational indices, denoted as (hkl), are integers that represent the intercepts of a crystal plane with the unit cell axes. These indices are not arbitrary; they are determined by the reciprocal of the fractional intercepts along the crystallographic axes, ensuring they are always in the smallest possible whole numbers. This concept is crucial for understanding the symmetry and structure of crystals, as it allows scientists to predict and analyze diffraction patterns, which are essential in fields like materials science and mineralogy.
To determine rational indices, one must first understand the geometry of the crystal lattice. Imagine a unit cell with axes a, b, and c. A plane within this cell intersects these axes at points that can be expressed as fractions of the unit cell dimensions. For instance, if a plane intersects the a-axis at 1/2, the b-axis at 1/3, and the c-axis at 1/4, the rational indices would be (2, 3, 4). This process involves taking the reciprocal of these fractions and reducing them to the smallest set of integers. The simplicity of these indices is not just mathematical elegance; it reflects the inherent symmetry of the crystal structure, making it easier to identify and classify different crystal forms.
One practical application of rational indices is in X-ray crystallography, where they are used to interpret diffraction patterns. When X-rays interact with a crystal, they produce a pattern of spots or rings that correspond to the planes within the crystal lattice. By assigning rational indices to these planes, scientists can deduce the arrangement of atoms within the crystal. For example, in a cubic crystal system, planes with indices (111) are symmetrically equivalent to (1¯1¯1), (¯11¯1), and (¯1¯11), reflecting the high symmetry of the structure. This systematic approach ensures consistency and precision in structural analysis.
While the concept of rational indices is straightforward, its application requires careful consideration of the crystal system. Different systems (e.g., cubic, hexagonal, tetragonal) have distinct rules for determining indices. For instance, in a hexagonal system, the c-axis is treated differently due to its unique symmetry. Additionally, the law of rational indices assumes idealized conditions, so real-world crystals with defects or impurities may deviate slightly. Researchers must account for these nuances to accurately interpret experimental data.
In summary, rational indices are a fundamental tool in crystallography, offering a concise and systematic way to describe crystal planes. Their determination involves geometric analysis and reduction to the smallest integers, reflecting the crystal’s inherent symmetry. By mastering this concept, scientists can unlock deeper insights into the atomic arrangement of materials, paving the way for advancements in technology and research. Whether analyzing diffraction patterns or classifying crystal structures, rational indices remain indispensable in the study of crystalline materials.
St. Louis Copper Sales Laws: Regulations and Compliance Guide
You may want to see also
Explore related products
Historical Development: Tracing the origins and evolution of the law of rational indices
The law of rational indices, a cornerstone in crystallography, emerged from the intersection of mathematics and mineralogy in the late 18th century. Its origins trace back to the pioneering work of Jean-Baptiste L. Romé de l'Isle, a French mineralogist who, in 1783, observed that the faces of crystals intersect at angles characteristic of their species. However, it was René Just Haüy, often dubbed the "Father of Crystallography," who formalized this idea. Haüy’s experiments with calcite in 1784 revealed that crystals could be divided into integral layers, suggesting that their structures were governed by simple, rational numbers. This insight laid the foundation for the law, which posits that the intercepts of crystal faces with crystallographic axes are inversely proportional to integers.
Haüy’s work was revolutionary, but it was not without controversy. His theory initially faced skepticism, particularly from those who favored more empirical approaches. The law gained broader acceptance in the early 19th century, thanks to the contributions of German mineralogist Christian Samuel Weiss. Weiss introduced the concept of crystallographic axes and developed a systematic notation for describing crystal forms, which helped standardize the application of the law. By the mid-1800s, the law of rational indices had become a fundamental principle in crystallography, enabling scientists to classify and predict crystal structures with unprecedented precision.
The evolution of the law of rational indices accelerated with advancements in technology. The invention of the goniometer in the early 19th century allowed for precise measurement of interfacial angles, validating Haüy’s theoretical framework. Later, the advent of X-ray diffraction in the early 20th century revolutionized the field. William Lawrence Bragg’s work in 1912 demonstrated that X-ray patterns could reveal the atomic arrangement within crystals, providing empirical evidence for the rationality of indices. This integration of experimental data with theoretical principles solidified the law’s place in modern crystallography.
Despite its historical significance, the law of rational indices is not without limitations. It assumes idealized crystal structures, which are rarely observed in nature due to defects and impurities. However, its enduring value lies in its ability to simplify complex structures into manageable mathematical relationships. Today, the law remains a vital tool in fields ranging from materials science to geology, serving as a bridge between the macroscopic and atomic worlds. Its historical development underscores the power of interdisciplinary collaboration and the iterative process of scientific discovery.
Dodd-Frank Law: Analyzing Its Strengths and Weaknesses in Finance
You may want to see also
Explore related products
Intercepts and Planes: How intercepts on crystal axes define Miller indices for lattice planes
The Miller indices, a cornerstone of crystallography, provide a concise and powerful way to describe the orientation of lattice planes within a crystal structure. These indices are determined by the intercepts of the plane with the crystallographic axes, a method rooted in the Law of Rational Indices. This law, formulated by William Hallowes Miller in 1839, asserts that the intercepts of a crystal face with the crystallographic axes are inversely proportional to the primitive translations along those axes and are always expressed as the smallest possible integers.
To understand how intercepts define Miller indices, consider a lattice plane intersecting the crystallographic axes at points (a/m, b/n, c/p), where (a, b, c) are the lengths of the axes and (m, n, p) are the intercepts. The Miller indices (h, k, l) are then given by the reciprocals of these intercepts, multiplied by the smallest common denominator to ensure they are integers. For example, if a plane intercepts the axes at (2a, b, 3c), the Miller indices would be (1/2, 1, 1/3), which simplifies to (3, 6, 2) after multiplying by 6, the least common multiple of the denominators.
This method is not merely theoretical; it has practical applications in materials science, particularly in diffraction studies and crystal growth. For instance, in X-ray crystallography, knowing the Miller indices of a plane allows scientists to predict the angles at which X-rays will diffract, providing insights into the atomic arrangement of the crystal. Similarly, in semiconductor manufacturing, controlling the orientation of lattice planes (often specified by their Miller indices) is crucial for optimizing electronic properties.
However, determining Miller indices from intercepts requires caution. The intercepts must be measured accurately, and the choice of the unit cell can affect the indices. For example, using a non-primitive unit cell may yield non-integer intercepts, violating the Law of Rational Indices. To avoid this, always ensure the unit cell is primitive and that the intercepts are expressed in terms of the smallest possible integers.
In summary, the relationship between intercepts on crystal axes and Miller indices is a fundamental concept in crystallography, bridging the gap between geometric observations and mathematical descriptions. By carefully measuring intercepts and applying the Law of Rational Indices, scientists can precisely define lattice planes, facilitating both theoretical studies and practical applications in materials science. This method underscores the elegance of crystallography, where simple geometric principles reveal the complex symmetry of crystalline structures.
Schumer's Role in Advancing the Diversity Law Explained
You may want to see also
Explore related products
Determination Methods: Techniques to calculate and verify rational indices in crystal structures
The Law of Rational Indices, a cornerstone in crystallography, asserts that the intercepts of a crystal face with the crystallographic axes are inversely proportional to prime integers. These integers, known as Miller indices (h, k, l), are crucial for describing crystal planes and directions. Determining these indices accurately is essential for understanding a crystal's structure and symmetry. Here, we explore the techniques used to calculate and verify rational indices in crystal structures, providing a practical guide for researchers and enthusiasts alike.
Step-by-Step Calculation Methods
To determine Miller indices, begin by identifying the intercepts of a crystal face with the crystallographic axes (a, b, c). These intercepts are measured in units of the lattice parameters. For example, if a face intercepts the a-axis at 2a, the b-axis at 3b, and the c-axis at 4c, the Miller indices are (1/2, 1/3, 1/4), which simplify to (3, 2, 1) after taking the reciprocals and reducing to the smallest integers. This method is straightforward for well-defined crystals but requires precise measurements. For complex structures, software tools like *XDS* or *GSAS-II* can automate the process, using diffraction data to compute indices directly from lattice parameters.
Verification Techniques: Ensuring Accuracy
Verification of rational indices is critical to avoid errors. One common technique is to check the consistency of indices with the crystal system's symmetry. For instance, in a cubic system, indices should reflect the equal lengths of the axes (e.g., (1, 1, 1)). Another method is to use diffraction patterns: the positions of Bragg peaks in X-ray or neutron diffraction data must align with the calculated indices. Discrepancies may indicate measurement errors or structural defects. Additionally, comparing indices with known standards or reference materials can provide a benchmark for accuracy.
Advanced Tools and Technologies
Modern crystallography leverages advanced tools to streamline index determination. Single-crystal X-ray diffraction (SCXRD) is a gold standard, providing high-resolution data that can be analyzed using software like *SHELXT* or *Olex2*. These programs not only calculate indices but also refine atomic positions and lattice parameters. For polycrystalline samples, powder diffraction techniques combined with Rietveld refinement offer a robust alternative. Electron microscopy, particularly high-resolution transmission electron microscopy (HRTEM), can also visualize crystal planes directly, aiding in index verification.
Practical Tips for Success
When determining rational indices, start with high-quality data. Ensure crystals are well-formed and free from defects, as imperfections can skew measurements. For diffraction experiments, use a high signal-to-noise ratio and calibrate instruments regularly. When working with software, double-check input parameters and validate results against multiple methods. For beginners, practice with simple crystal systems like cubic or tetragonal before tackling more complex structures. Finally, maintain a systematic approach: document each step, from data collection to final index assignment, to ensure reproducibility and accuracy.
By combining traditional methods with modern tools, researchers can confidently calculate and verify rational indices, unlocking deeper insights into crystal structures and their properties.
Understanding the Nuremberg Laws: Origins and Implementation in Nazi Germany
You may want to see also
Explore related products
Significance in Crystallography: Role of rational indices in studying crystal symmetry and properties
The Law of Rational Indices, a cornerstone in crystallography, asserts that the intercepts of a crystal face with the crystallographic axes are inversely proportional to prime integers. These integers, known as Miller indices (h, k, l), describe the orientation of lattice planes within the crystal structure. This law is not merely a theoretical construct but a practical tool that bridges the gap between macroscopic crystal morphology and its atomic arrangement. By quantifying the geometric relationship between crystal faces and the underlying lattice, rational indices enable scientists to systematically study crystal symmetry and predict its physical properties.
To determine rational indices, one must follow a precise procedure. Begin by sketching the unit cell of the crystal and identifying the intercepts of the crystal face with the crystallographic axes (a, b, c). Measure the distance from the origin to the point where the face intersects each axis. If an intercept is parallel to an axis, it is considered infinite. Next, take the reciprocals of these intercepts and reduce them to the smallest set of integers. These integers are the Miller indices (h, k, l). For example, if a face intercepts the a-axis at 2 units, the b-axis at 3 units, and is parallel to the c-axis, the indices would be (1/2, 1/3, ∞), which simplifies to (2, 3, 0). This method ensures consistency and universality in describing crystal planes.
The significance of rational indices in crystallography lies in their ability to reveal the inherent symmetry of a crystal. By analyzing the Miller indices of various planes, researchers can identify symmetry elements such as rotation axes, mirror planes, and glide planes. For instance, in a cubic crystal system, planes with indices (h, h, h) are always parallel to the cube diagonals, reflecting the crystal’s high symmetry. This systematic approach allows scientists to classify crystals into one of the 32 point groups or 230 space groups, each with distinct symmetry operations. Understanding these symmetries is crucial for predicting how crystals will interact with external forces, such as light or mechanical stress.
Rational indices also play a pivotal role in studying the physical properties of crystals. For example, the spacing between lattice planes (d-spacing) can be calculated using the Miller indices and the lattice parameters. This is essential in X-ray diffraction experiments, where the angle of diffraction depends on the d-spacing. By knowing the Miller indices of diffracting planes, researchers can interpret diffraction patterns to determine the crystal structure. Additionally, the orientation of crystal planes influences properties like cleavage, hardness, and electrical conductivity. For instance, graphite’s basal plane (001) exhibits high electrical conductivity due to the delocalized electrons in its layered structure, while its perpendicular planes show insulating behavior.
In practical applications, rational indices guide material scientists in optimizing crystal properties for specific uses. For example, in semiconductor manufacturing, the orientation of silicon wafers (e.g., (100) or (111) planes) affects their electronic properties and defect density. Similarly, in pharmaceuticals, understanding the crystal habit and preferred growth directions (determined by rational indices) helps in formulating drugs with desired solubility and bioavailability. By leveraging the Law of Rational Indices, scientists can tailor materials at the atomic level, ensuring they meet the demands of modern technology and medicine. This underscores the enduring relevance of rational indices in both fundamental research and industrial innovation.
Arizona Home Buying Laws: Essential Legal Guide for Purchasers
You may want to see also
Frequently asked questions
The Law of Rational Indices, also known as Haüy's Law, states that the intercepts of a crystal face with the crystallographic axes are inversely proportional to the Miller indices of that face. This law implies that the Miller indices (h, k, l) of any crystal face will always be integers or simple fractions, reflecting the symmetry and periodicity of the crystal lattice.
Miller indices (h, k, l) are determined by taking the reciprocals of the intercepts of a crystal face with the crystallographic axes (a, b, c), and then reducing these reciprocals to the smallest possible integers. If the intercept is at infinity (i.e., the face is parallel to an axis), the corresponding index is 0.
The Law of Rational Indices is fundamental in crystallography because it provides a systematic way to describe and classify crystal faces based on their relationship to the crystal lattice. It helps in understanding the symmetry and structure of crystals, which is essential for studying their physical and chemical properties.
Yes, the Law of Rational Indices applies to all crystal systems (cubic, tetragonal, orthorhombic, hexagonal, trigonal, monoclinic, and triclinic). However, the method of determining Miller indices may vary slightly depending on the crystal system, particularly for hexagonal and rhombohedral systems, which use four axes (a, b, c, and a pseudo-axis).
The Law of Rational Indices reflects the inherent symmetry of the crystal lattice. Since the lattice is composed of repeating unit cells, the intercepts of crystal faces with the axes will always be in simple ratios, leading to rational Miller indices. This law reinforces the idea that crystal faces are related to the underlying lattice structure and its symmetry elements.
