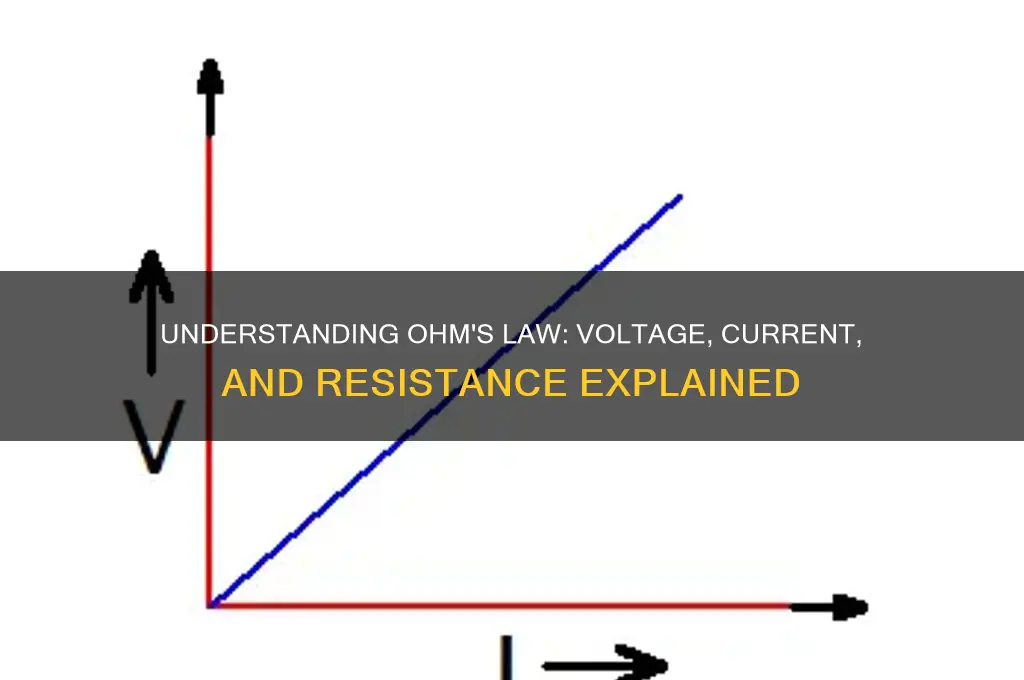

The relationship between voltage, current, and resistance is fundamentally described by Ohm's Law, one of the most basic and essential principles in electrical circuits. Ohm's Law states that the current (I) flowing through a conductor between two points is directly proportional to the voltage (V) across the two points and inversely proportional to the resistance (R) between them, mathematically expressed as V = I * R. This law provides a clear understanding of how electrical quantities interact, enabling engineers, technicians, and students to predict and control the behavior of electrical circuits. By manipulating this equation, one can solve for any of the three variables, making it a versatile tool for circuit analysis and design. Understanding this relationship is crucial for anyone working with electricity, as it forms the basis for more complex electrical theories and practical applications.
| Characteristics | Values |
|---|---|
| Name | Ohm's Law |
| Formula | V = I * R (Voltage = Current * Resistance) |
| Description | Defines the relationship between voltage, current, and resistance in an electrical circuit. |
| Units | Voltage (V) in volts, Current (I) in amperes, Resistance (R) in ohms |
| Applicability | Applies to linear, bilateral, and ohmic conductors (e.g., metals) under constant temperature and other physical conditions. |
| Mathematical Forms | 1. V = I * R (Voltage formula) 2. I = V / R (Current formula) 3. R = V / I (Resistance formula) |
| Key Assumptions | 1. Temperature remains constant. 2. Material properties do not change. 3. No external factors (e.g., magnetic fields) influence the circuit. |
| Limitations | Does not apply to non-ohmic devices (e.g., diodes, transistors) or circuits with varying temperatures or material properties. |
| Historical Context | Formulated by Georg Simon Ohm in 1827. |
| Practical Applications | Widely used in circuit analysis, electronics, and electrical engineering for designing, troubleshooting, and optimizing circuits. |
Explore related products
What You'll Learn
Ohm's Law Fundamentals
Voltage, current, and resistance are the cornerstone concepts in electrical circuits, and their relationship is elegantly described by Ohm's Law. This fundamental principle, named after the German physicist Georg Simon Ohm, provides a clear and concise framework for understanding how these electrical properties interact. At its core, Ohm's Law states that the current through a conductor between two points is directly proportional to the voltage across the two points, and inversely proportional to the resistance between them. Mathematically, this is expressed as \( I = \frac{V}{R} \), where \( I \) is the current in amperes (A), \( V \) is the voltage in volts (V), and \( R \) is the resistance in ohms (Ω).
To illustrate Ohm's Law in action, consider a simple circuit with a 12-volt battery and a resistor. If the resistor has a resistance of 4 ohms, the current flowing through the circuit can be calculated as \( I = \frac{12V}{4Ω} = 3A \). This example demonstrates the law's predictive power: by knowing two of the three variables (voltage, current, or resistance), you can determine the third. This predictability is invaluable in designing and troubleshooting electrical systems, from household appliances to complex industrial machinery.
One of the most practical applications of Ohm's Law is in circuit design. For instance, if you need to limit the current in a circuit to protect sensitive components, you can use the law to calculate the required resistance. Suppose a device operates safely at 0.5A with a 9V power supply. Using Ohm's Law, the necessary resistance is \( R = \frac{9V}{0.5A} = 18Ω \). This approach ensures that the circuit remains within safe operating limits, preventing overheating or damage to components.
While Ohm's Law is straightforward, it's essential to recognize its limitations. It applies primarily to ohmic materials, which exhibit a linear relationship between voltage and current. Non-ohmic materials, such as diodes or transistors, do not follow this linear behavior and require more complex analysis. Additionally, real-world circuits often involve factors like temperature changes or component aging, which can affect resistance and, consequently, the accuracy of Ohm's Law predictions. Despite these caveats, the law remains a vital tool for understanding and manipulating electrical circuits.
In summary, Ohm's Law fundamentals provide a foundational understanding of how voltage, current, and resistance interact in electrical circuits. By mastering this principle, engineers, technicians, and hobbyists can design, analyze, and troubleshoot circuits with confidence. Whether calculating current, selecting resistors, or ensuring safety, Ohm's Law is an indispensable tool in the electrical toolkit. Its simplicity and applicability make it a cornerstone of electrical engineering, bridging theory and practice in countless applications.
