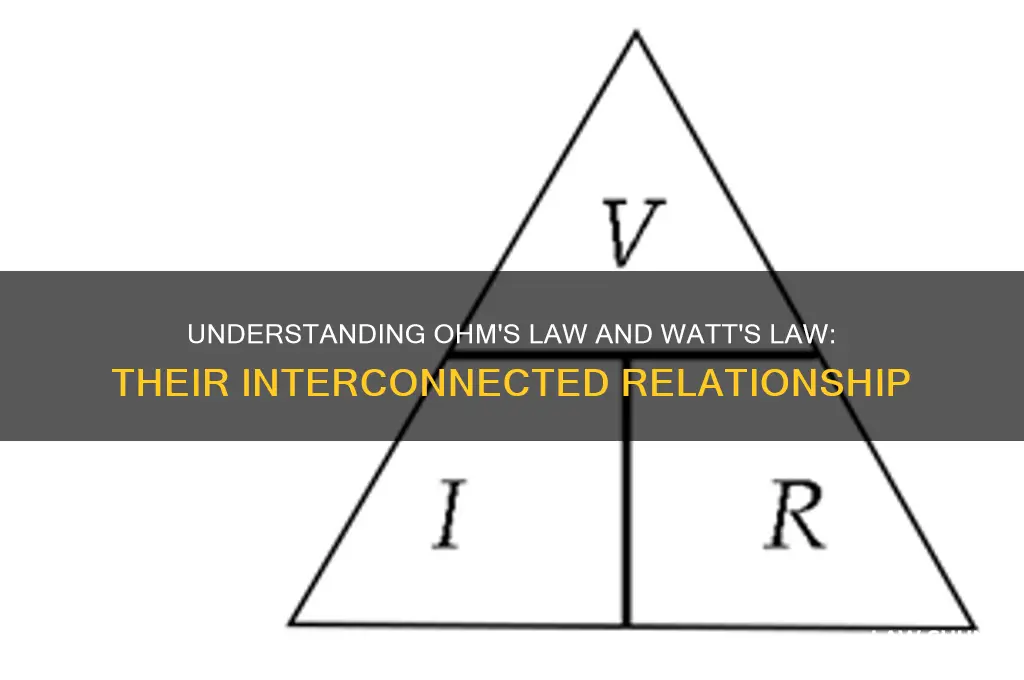

The relationship between Ohm's Law and Watt's Law is fundamental in understanding electrical circuits. Ohm's Law, defined as V = I * R, establishes the relationship between voltage (V), current (I), and resistance (R) in a circuit, stating that the current through a conductor is directly proportional to the voltage and inversely proportional to the resistance. On the other hand, Watt's Law, expressed as P = V * I, relates power (P) to voltage and current, indicating that the power dissipated in a circuit is the product of the voltage across and the current flowing through a component. Together, these laws provide a comprehensive framework for analyzing electrical circuits, as Ohm's Law helps determine the voltage, current, or resistance, while Watt's Law allows for the calculation of power, enabling engineers and technicians to design, troubleshoot, and optimize electrical systems effectively.
| Characteristics | Values |
|---|---|
| Ohm's Law | Relates voltage (V), current (I), and resistance (R): V = I * R |
| Watt's Law (Power Law) | Relates power (P), voltage (V), and current (I): P = V * I |
| Relationship | Both laws are interconnected through the variables V, I, and R. |
| Power Calculation Using Ohm's Law | P = I2 * R or P = V2 / R (derived by substituting V or I from Ohm's Law) |
| Units | Ohm's Law: Volts (V), Amperes (I), Ohms (R); Watt's Law: Watts (P) |
| Application | Ohm's Law is used for circuit analysis; Watt's Law for power calculations. |
| Dependency | Watt's Law relies on Ohm's Law to derive power when R or V/I is known. |
| Mathematical Link | P = V * I = (I * R) * I = I2 * R or P = V * (V / R) = V2 / R |
| Practical Use | Both are essential in electrical engineering for designing and troubleshooting circuits. |
| Historical Context | Ohm's Law (Georg Simon Ohm) and Watt's Law (James Watt) are foundational principles in electricity. |
Explore related products
What You'll Learn
Ohm's Law Basics: Voltage, current, resistance relationship
Ohm's Law is the cornerstone of electrical circuits, establishing a fundamental relationship between voltage, current, and resistance. It states that the current through a conductor between two points is directly proportional to the voltage across the two points, and inversely proportional to the resistance between them. Mathematically, this is expressed as *I = V/R*, where *I* is current in amperes (A), *V* is voltage in volts (V), and *R* is resistance in ohms (Ω). This simple yet powerful equation allows engineers, technicians, and hobbyists to predict and control the behavior of electrical circuits with precision.
Consider a practical example: a 12V battery connected to a 4Ω resistor. Using Ohm's Law, the current flowing through the circuit is *I = 12V / 4Ω = 3A*. This calculation is essential for ensuring components operate within safe limits and for designing circuits that meet specific performance requirements. For instance, if the resistor were rated for only 2A, this setup would exceed its capacity, potentially causing damage. Ohm's Law thus serves as a critical tool for troubleshooting and safety in electrical systems.
While Ohm's Law focuses on the relationship between voltage, current, and resistance, Watt's Law complements it by addressing power. Watt's Law states that power (*P*) in watts (W) is the product of voltage and current: *P = VI*. Combining these two laws reveals a deeper insight: power can also be expressed as *P = I²R* or *P = V²/R*. This interplay highlights how changes in voltage, current, or resistance directly impact the power dissipated in a circuit. For example, increasing the voltage across a fixed resistor will increase both current and power, which is crucial for applications like heating elements or lighting systems.
Understanding Ohm's Law is not just theoretical; it has practical implications for everyday devices. For instance, in a smartphone charger, the relationship between voltage (typically 5V), current (up to 2A for fast charging), and resistance (in the charging cable) determines how quickly the device charges. If the cable's resistance is too high, it can limit current flow, slowing charging or even causing overheating. By applying Ohm's Law, manufacturers optimize these parameters to ensure efficiency and safety.
In summary, Ohm's Law provides a foundational framework for understanding how voltage, current, and resistance interact in electrical circuits. Its simplicity belies its importance, as it underpins everything from household electronics to industrial machinery. By mastering this relationship, individuals can design, analyze, and troubleshoot circuits effectively, ensuring they function as intended while avoiding potential hazards. Whether you're a beginner or a seasoned professional, Ohm's Law remains an indispensable tool in the world of electricity.
North Carolina E-Cigarette Laws: Regulations, Restrictions, and Compliance Explained
You may want to see also
Explore related products
Watt's Law Basics: Power, voltage, current relationship
Power, voltage, and current are the cornerstone trio in electrical circuits, and understanding their interplay is crucial for anyone working with electricity. Watts Law, also known as Joule's Law, defines this relationship succinctly: Power (P) equals voltage (V) multiplied by current (I), or P = VI. This formula reveals that power, measured in watts, is the product of voltage (volts) and current (amperes). For instance, a device operating at 12 volts and drawing 2 amperes consumes 24 watts of power (12V × 2A = 24W). This principle is fundamental in designing circuits, selecting components, and ensuring safety in electrical systems.
While Watts Law focuses on power, Ohm's Law connects voltage, current, and resistance (V = IR). Together, these laws provide a complete framework for analyzing circuits. Consider a simple example: a 10-ohm resistor connected to a 20-volt power source. Using Ohm's Law, the current is 2 amperes (20V ÷ 10Ω = 2A). Applying Watts Law, the power dissipated in the resistor is 40 watts (20V × 2A = 40W). This demonstrates how the two laws complement each other, allowing engineers and technicians to calculate critical parameters in circuit design.
Practical applications of Watts Law are abundant. For instance, when installing LED lighting, knowing the voltage and current requirements ensures the power supply matches the load. A 12V LED strip drawing 1.5A requires a 18-watt power source (12V × 1.5A = 18W). Similarly, in household appliances, Watts Law helps determine energy consumption. A 120V hairdryer drawing 10A consumes 1200 watts (120V × 10A = 1200W), which is essential for sizing circuit breakers and managing energy usage.
A cautionary note: misunderstanding the relationship between power, voltage, and current can lead to inefficiencies or hazards. Overloading circuits by exceeding power ratings can cause overheating or failure. For example, connecting a 60-watt bulb to a circuit supplying 100 watts (e.g., 10V × 10A) will damage the bulb. Always verify compatibility using Watts Law to ensure safe and efficient operation.
In conclusion, Watts Law is a vital tool for understanding how power, voltage, and current interact in electrical systems. By mastering this relationship, individuals can make informed decisions in circuit design, energy management, and safety compliance. Whether troubleshooting a faulty appliance or optimizing energy use, Watts Law provides the clarity needed to navigate the complexities of electricity.
Understanding the Law of Increasing Costs: Definition and Real-World Example
You may want to see also
Explore related products
Combining Ohm's and Watt's Laws for power calculations
Ohm's Law and Watt's Law are fundamental principles in electrical engineering, each describing a critical aspect of electrical circuits. Ohm's Law, expressed as V = I * R, relates voltage (V) to current (I) and resistance (R). Watt's Law, on the other hand, is represented as P = V * I, where P is power. While they describe different relationships, combining these laws allows for comprehensive power calculations in electrical systems. This integration is particularly useful when designing circuits, troubleshooting issues, or optimizing energy efficiency.
To combine Ohm's and Watt's Laws effectively, start by identifying the known variables in your circuit. For instance, if you know the voltage and resistance, use Ohm's Law to find the current (I = V / R). Once you have the current, substitute it into Watt's Law to calculate power (P = V * I). Alternatively, if you have power and voltage, rearrange Watt's Law to solve for current (I = P / V), then use Ohm's Law to find resistance (R = V / I). This step-by-step approach ensures accuracy and avoids common pitfalls like assuming fixed values without verification.
Consider a practical example: a 12-volt circuit with a 4-ohm resistor. Using Ohm's Law, the current is I = 12V / 4Ω = 3A. Applying Watt's Law, the power dissipated is P = 12V * 3A = 36W. This calculation is crucial for selecting components that can handle the power without overheating. Conversely, if you know a device consumes 60W at 120V, Watt's Law gives I = 60W / 120V = 0.5A. Ohm's Law then reveals the resistance: R = 120V / 0.5A = 240Ω. Such scenarios highlight the versatility of combining these laws for diverse applications.
When combining these laws, be cautious of assumptions. For instance, real-world components may not behave ideally due to factors like temperature changes or material properties. Always verify calculations with measured values and account for tolerances in components. Additionally, ensure consistency in units (e.g., volts, amperes, watts) to avoid errors. For complex circuits, break them into simpler parts and apply the laws iteratively. This methodical approach not only simplifies calculations but also deepens understanding of how electrical parameters interact.
In conclusion, combining Ohm's and Watt's Laws is a powerful technique for power calculations in electrical systems. By systematically linking voltage, current, resistance, and power, engineers and enthusiasts can design efficient circuits, diagnose problems, and optimize performance. Mastery of this integration requires practice, attention to detail, and awareness of real-world limitations. Whether for a simple LED circuit or a sophisticated industrial system, this combined approach remains an indispensable tool in the electrical engineer's toolkit.
Qualifications to Sit for the Patent Law Exam: A Comprehensive Guide
You may want to see also
Explore related products
Practical applications in electrical circuits using both laws
Electrical circuits are the backbone of modern technology, and understanding the interplay between Ohm’s Law and Watt’s Law is crucial for designing, troubleshooting, and optimizing these systems. Ohm’s Law (V = I × R) defines the relationship between voltage, current, and resistance, while Watt’s Law (P = V × I) links power, voltage, and current. Together, they provide a comprehensive framework for practical applications in electrical circuits, ensuring efficiency, safety, and functionality.
Consider a simple household appliance like a toaster. When you plug it in, Ohm’s Law helps determine the current flowing through the heating element based on the applied voltage and the element’s resistance. For instance, if a toaster operates at 120V and the heating element has a resistance of 20Ω, the current is 6A (I = V / R). Simultaneously, Watt’s Law calculates the power consumption: 720W (P = V × I). This information is vital for selecting the right fuse or circuit breaker to prevent overheating. Without both laws, engineers would struggle to balance performance and safety in such devices.
In industrial settings, these laws are indispensable for motor control systems. Motors require precise voltage and current regulation to operate efficiently. Ohm’s Law is used to design resistor networks for voltage dividers or current-limiting circuits, ensuring motors receive the correct input. Watt’s Law then calculates the power output, helping engineers determine if the motor is operating within its rated capacity. For example, a 240V motor drawing 5A delivers 1200W of power, which must align with the mechanical load to avoid energy waste or motor burnout.
Renewable energy systems, such as solar panels, also rely on both laws. Solar panels generate voltage and current based on sunlight intensity, and Ohm’s Law helps optimize the panel’s output by matching its resistance to the inverter’s input requirements. Watt’s Law then calculates the power generated, ensuring it meets the system’s energy demands. For instance, a panel producing 36V and 8A generates 288W, which can be scaled up by connecting multiple panels in series or parallel, guided by these laws.
Finally, in electronics, both laws are essential for designing power supplies and voltage regulators. A smartphone charger, for example, must deliver a specific voltage (e.g., 5V) and current (e.g., 2A) to charge efficiently. Ohm’s Law ensures the internal resistors and components handle the current without overheating, while Watt’s Law verifies the power output (10W in this case) matches the device’s requirements. This dual application prevents damage to both the charger and the device, showcasing the laws’ practical synergy.
In summary, Ohm’s Law and Watt’s Law are not isolated principles but interconnected tools that enable precise control and optimization in electrical circuits. From household appliances to industrial motors and renewable energy systems, their combined application ensures efficiency, safety, and reliability, making them indispensable in modern electrical engineering.
Fulfilling the Old Law: Understanding Its Completion and Fullness
You may want to see also
Explore related products
Deriving Watt's Law from Ohm's Law mathematically
Ohm's Law and Watt's Law are fundamental principles in electrical engineering, each describing a different aspect of electrical circuits. While Ohm's Law relates voltage, current, and resistance, Watt's Law connects power, voltage, and current. Deriving Watt's Law from Ohm's Law mathematically not only highlights their relationship but also demonstrates how these laws are interconnected in practical circuit analysis.
Step 1: Start with Ohm's Law
Ohm's Law is expressed as \( V = I \cdot R \), where \( V \) is voltage (in volts), \( I \) is current (in amperes), and \( R \) is resistance (in ohms). This equation shows that voltage is directly proportional to current when resistance is constant. To derive Watt's Law, we need to incorporate power, which is the rate at which energy is transferred in a circuit.
Step 2: Introduce Power Using Ohm's Law
Power (\( P \)) in electrical systems is given by \( P = V \cdot I \). However, we can substitute \( V \) from Ohm's Law into this equation. Replacing \( V \) with \( I \cdot R \), we get \( P = (I \cdot R) \cdot I \), which simplifies to \( P = I^2 \cdot R \). This equation shows power in terms of current and resistance, but we can also express it in terms of voltage and current.
Step 3: Derive Watt's Law Directly
To align with Watt's Law, which states \( P = V \cdot I \), we use the original power equation and substitute \( V \) from Ohm's Law. Since \( V = I \cdot R \), we can rearrange \( P = V \cdot I \) to show its direct relationship with Ohm's Law. Alternatively, if we square \( V = I \cdot R \) and divide by \( R \), we arrive at \( P = \frac{V^2}{R} \), another form of Watt's Law. Both derivations confirm that power is inherently linked to voltage, current, and resistance.
Cautions and Practical Tips
When applying these derivations, ensure units are consistent (volts, amperes, ohms, and watts). For example, if \( V = 12 \) volts and \( I = 2 \) amperes, \( P = 12 \cdot 2 = 24 \) watts. Avoid mixing units or assuming constant values without verification. Additionally, these equations are idealized and assume linear relationships, which may not hold in complex circuits with nonlinear components like diodes or transistors.
Women's Haircutting Rights: Legalities and Policies in Prison Systems
You may want to see also
Frequently asked questions
Ohm's Law (V = I * R) relates voltage (V), current (I), and resistance (R), while Watt's Law (P = V * I) relates power (P), voltage (V), and current (I). Both laws are interconnected, as power in Watt's Law can be derived using Ohm's Law by substituting V or I with expressions involving R.
Yes, Ohm's Law can be used to calculate power indirectly. By rearranging Ohm's Law (V = I * R) and substituting into Watt's Law (P = V * I), you can derive formulas like P = I² * R or P = V² / R, showing how Ohm's Law complements Watt's Law in power calculations.
Both laws are fundamental because they describe the core relationships between voltage, current, resistance, and power in electrical circuits. Ohm's Law explains how voltage and current interact with resistance, while Watt's Law quantifies the energy consumption or production. Together, they provide a complete framework for analyzing and designing circuits.
