Theta (θ) in Bragg's Law is a critical angle that defines the relationship between the wavelength of light (λ), the spacing between the lines on a diffraction grating (d), and the order of diffraction (m). Bragg's Law, expressed as nλ = 2d sin(θ), describes the conditions under which constructive interference occurs in diffraction gratings, leading to the formation of distinct diffraction patterns. Here, θ represents the angle of incidence or diffraction, measured between the incident or diffracted light ray and the normal to the grating surface. Understanding theta is essential for predicting and controlling the angles at which different wavelengths of light are diffracted, making it a fundamental concept in the study of optical diffraction gratings.
| Characteristics | Values |
|---|---|
| Definition | Angle of incidence (or diffraction) in Bragg's law for diffraction gratings |
| Symbol | θ (theta) |
| Unit | Degrees (°) or radians (rad) |
| Role in Bragg's Law | Determines the angle at which constructive interference occurs for a given wavelength and grating spacing |
| Relationship with Order (m) | θ depends on the order of diffraction (m), wavelength (λ), and grating spacing (d): nλ = 2d sin(θ) |
| Range | Typically between 0° and 90°, but depends on the specific grating and experimental setup |
| Dependence on Wavelength (λ) | θ increases as λ increases for a fixed grating spacing and order |
| Dependence on Grating Spacing (d) | θ decreases as d increases for a fixed wavelength and order |
| Application | Used in spectroscopy, diffraction experiments, and optical metrology to analyze and control light diffraction |
| Measurement | Can be measured using a goniometer, spectrometer, or other angle-measuring devices |
| Significance | Critical parameter in designing and optimizing diffraction gratings for specific applications |
Explore related products
![Bartovation Diffraction Grating Sheet 13,500 Lines/in [One 6" x 5ft Roll]](https://m.media-amazon.com/images/I/61QkjjZzO+L._AC_UY218_.jpg)
![Bartovation Diffraction Grating Sheet 1,000 Lines/mm [One 6" x 1ft Sheet]](https://m.media-amazon.com/images/I/71CaxEJnU0L._AC_UY218_.jpg)
![Bartovation Diffraction Grating Sheet 1,000 Lines/mm [One 6" x 5ft Roll]](https://m.media-amazon.com/images/I/61JbNeO3b4L._AC_UY218_.jpg)
![13,500 Lines/inch Diffraction Grating Sheet - Double Axis [1' x 6"]](https://m.media-amazon.com/images/I/61zSJqV+S2L._AC_UY218_.jpg)
What You'll Learn
Theta's Role in Diffraction

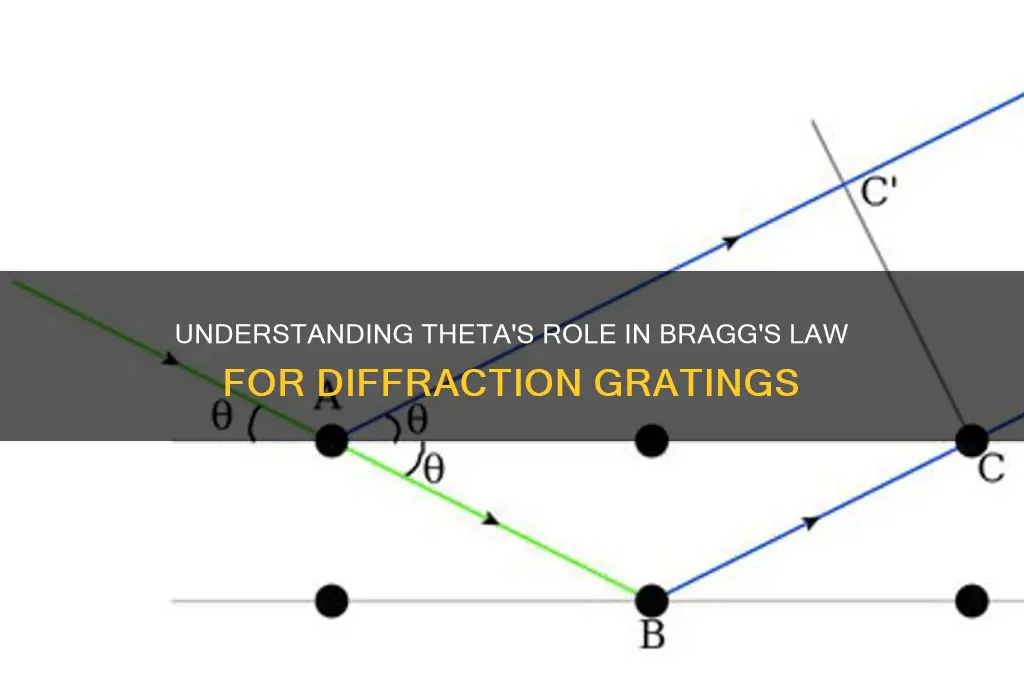

Theta, denoted as θ, is a critical angle in Bragg's law for diffraction gratings, representing the angle of incidence or diffraction of the incoming light relative to the grating's surface. This angle determines the path of light as it interacts with the grating's lines or slits, dictating whether constructive interference occurs and at what angles specific wavelengths will appear in the diffraction pattern. Understanding theta is essential for predicting and controlling the behavior of light in diffraction experiments.
Consider the analytical perspective: Bragg's law states that *nλ = 2d sin(θ)*, where *n* is the order of diffraction, *λ* is the wavelength of light, and *d* is the grating spacing. Here, theta is the linchpin that connects the physical structure of the grating to the observable diffraction pattern. For example, if a grating with *d = 1 μm* is illuminated with green light (*λ = 532 nm*), theta can be calculated to determine the angles at which the first-order (*n = 1*) diffraction maximum will appear. This calculation highlights theta's role in bridging theoretical predictions with experimental results.
From an instructive standpoint, controlling theta allows researchers to manipulate diffraction outcomes. To achieve a desired diffraction angle, adjust theta while keeping *n*, *λ*, and *d* constant. For instance, in a classroom setting, students can use a laser and a diffraction grating to observe how changing theta alters the position of spectral lines. Practical tips include using a rotary stage to precisely measure theta and ensuring the laser is monochromatic to avoid overlapping spectra. This hands-on approach reinforces theta's significance in diffraction experiments.
Comparatively, theta's role in diffraction gratings contrasts with its function in other optical systems, such as X-ray crystallography, where it represents the angle between the incident beam and the crystal lattice plane. While the underlying principle of constructive interference remains, the scale and application differ. In gratings, theta is typically measured in visible light experiments with angles ranging from 0° to 90°, whereas in X-ray diffraction, theta is often smaller due to shorter wavelengths and interatomic spacings. This comparison underscores theta's versatility across diverse optical phenomena.
Finally, from a descriptive perspective, theta's influence on diffraction patterns is visually striking. As theta increases, the diffraction maxima shift, creating a dynamic display of spectral colors. For example, in a CD or DVD, the microscopic grooves act as a grating, and varying theta by tilting the disc produces a rainbow effect. This phenomenon not only illustrates theta's role but also demonstrates its practical application in everyday technology. By mastering theta, scientists and engineers can design gratings for specific purposes, from spectrometers to anti-counterfeiting measures.
