Faraday's law of electromagnetic induction is a fundamental principle in physics that relates several key quantities in the context of changing magnetic fields and induced electromotive forces (EMFs). It states that the magnitude of the EMF induced in a conductor is directly proportional to the rate of change of magnetic flux through the loop formed by the conductor. Mathematically, this is expressed as EMF = -dΦ/dt, where EMF is the induced electromotive force, dΦ/dt represents the rate of change of magnetic flux, and the negative sign indicates the direction of the induced current, following Lenz's law. Thus, Faraday's law connects the quantities of magnetic flux (Φ), time (t), and the resulting EMF, highlighting the relationship between dynamic magnetic fields and the generation of electrical currents.
Explore related products
$169.99 $239.99
What You'll Learn
Magnetic flux change over time
Consider a practical example: a coil of wire rotating in a uniform magnetic field. As the coil turns, the angle θ between the magnetic field and the coil’s area changes continuously, causing the magnetic flux through the coil to fluctuate. Faraday’s law dictates that this flux change induces an EMF, which in turn drives a current if the circuit is closed. The rate of change of flux (dΦ/dt) directly determines the magnitude of the induced EMF. For instance, doubling the rotation speed of the coil doubles dΦ/dt, resulting in a proportionally higher voltage output. This principle is exploited in power plants, where mechanical energy from turbines is converted into electrical energy via rotating coils in magnetic fields.
However, magnetic flux change isn’t limited to rotating systems. It can also occur when the magnetic field strength itself varies over time, such as in the case of alternating current (AC) systems. In a transformer, for example, an alternating current in the primary coil creates a fluctuating magnetic field, which then induces a changing flux in the secondary coil. The rate of this flux change determines the voltage induced in the secondary coil, following the ratio of the number of turns in each coil. This mechanism allows transformers to step up or step down voltage levels efficiently, a critical function in electrical power distribution.
To harness this principle effectively, engineers must account for several factors. First, the area exposed to the magnetic field matters—larger coils or surfaces capture more flux. Second, the orientation of the surface relative to the field is crucial; maximum flux occurs when the surface is perpendicular to the field lines (θ = 0°), while no flux is captured when parallel (θ = 90°). Finally, the speed of flux change is paramount; faster changes yield higher induced voltages. For DIY enthusiasts experimenting with electromagnetism, a simple rule of thumb is to maximize both the magnetic field strength and the rate of change in flux for optimal results.
In conclusion, magnetic flux change over time is not just a theoretical concept but a practical tool with wide-ranging applications. From generating electricity to transforming voltage levels, its role in Faraday’s law is indispensable. By understanding how flux changes—whether through rotation, field variation, or area adjustments—engineers and hobbyists alike can design systems that efficiently convert magnetic energy into electrical power. This dynamic interplay between magnetism and electricity continues to shape technological advancements, proving that Faraday’s insights remain as relevant today as they were nearly two centuries ago.
Is Concealed Carry Legal in Virginia? Understanding VA Gun Laws
You may want to see also
Explore related products
Induced electromotive force (EMF) generation
Faraday's law of electromagnetic induction is a cornerstone of electromagnetism, revealing the intricate relationship between changing magnetic fields and the generation of electromotive force (EMF). This phenomenon, known as induced EMF, is not merely a theoretical concept but a practical principle underpinning numerous technological advancements. At its core, Faraday's law states that the EMF induced in a closed loop is directly proportional to the rate of change of magnetic flux through the loop. This relationship is mathematically expressed as EMF = -dΦ/dt, where Φ represents the magnetic flux and the negative sign signifies the direction of the induced current, adhering to Lenz's law.

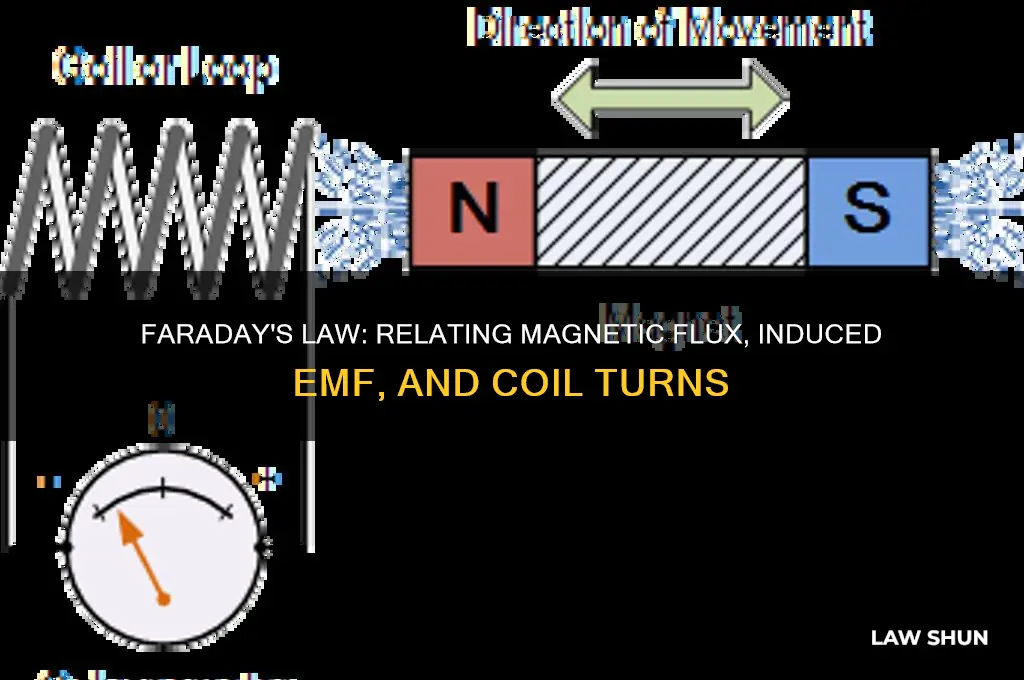

Consider a simple experiment: a magnet is moved in and out of a coil of wire. As the magnet approaches the coil, the magnetic flux through the loop increases, inducing an EMF that drives a current in one direction. When the magnet is withdrawn, the flux decreases, and the induced current reverses direction. This dynamic interplay between motion, magnetic fields, and electrical currents illustrates the essence of induced EMF generation. The key quantities at play here are the magnetic field strength (B), the area (A) of the loop, the angle (θ) between the field and the loop's normal, and the rate of change (d/dt) of these parameters. Practical applications, such as generators and transformers, rely on manipulating these variables to produce usable electrical energy.
To harness induced EMF effectively, engineers and scientists must consider several factors. For instance, increasing the number of turns in a coil amplifies the induced EMF, as it directly multiplies the magnetic flux. Similarly, using materials with higher magnetic permeability enhances the field strength within the coil. However, caution must be exercised to avoid excessive heating due to eddy currents, which can be mitigated by laminating the core. In industrial settings, generators often operate at specific frequencies (e.g., 50 or 60 Hz) to ensure compatibility with power grids, while transformers are designed to handle voltage ratios tailored to transmission needs.
A comparative analysis of induced EMF generation in different systems highlights its versatility. In a bicycle dynamo, mechanical motion drives a magnet past a coil, producing a modest EMF sufficient for powering lights. In contrast, large-scale power plants use turbines to rotate massive coils within strong magnetic fields, generating EMF on a megawatt scale. Despite their differences, both systems adhere to the same underlying principle: the rate of change of magnetic flux dictates the induced EMF. This universality makes Faraday's law a powerful tool for designing systems across diverse scales and applications.
In conclusion, induced EMF generation is a direct consequence of Faraday's law, linking magnetic flux dynamics to electrical potential. By understanding and manipulating the quantities involved—magnetic field strength, area, angle, and rate of change—we can engineer solutions ranging from portable electronics to national power grids. Whether through analytical calculations, practical experiments, or comparative studies, mastering this concept unlocks the ability to transform energy between mechanical and electrical forms efficiently.
Top Scottish Law Schools: Where to Study?
You may want to see also
Explore related products
$189.99 $199.99
Relationship between coil turns and EMF
Faraday's law of electromagnetic induction states that the electromotive force (EMF) induced in a coil is directly proportional to the rate of change of magnetic flux through it. One critical factor influencing this relationship is the number of turns in the coil. Each turn contributes to the total magnetic flux linkage, and thus, the EMF generated. For instance, doubling the number of turns in a coil while keeping other factors constant will double the induced EMF. This linear relationship is fundamental in designing devices like transformers and generators, where maximizing EMF output is often a priority.
To illustrate, consider a practical scenario: a coil with 100 turns rotating in a magnetic field experiences a certain induced EMF. If the coil is rewound to have 200 turns under identical conditions, the EMF will increase proportionally. This principle is leveraged in applications requiring high voltage outputs, such as in power generation. However, increasing coil turns isn’t always feasible due to physical constraints like space and material limitations. Engineers must balance the number of turns with factors like wire thickness and resistance to optimize performance.
From an analytical perspective, the relationship between coil turns and EMF can be expressed mathematically as *EMF = -N(ΔΦ/Δt)*, where *N* is the number of turns, and *ΔΦ/Δt* is the rate of change of magnetic flux. This equation underscores the direct proportionality between turns and EMF. For example, in a transformer, the ratio of turns in the primary and secondary coils determines the voltage transformation ratio. A primary coil with 500 turns and a secondary with 1000 turns will double the voltage, assuming ideal conditions. This highlights the precision required in coil design for specific applications.
A persuasive argument for optimizing coil turns lies in energy efficiency. In devices like electric motors, increasing the number of turns can enhance torque and efficiency, but only up to a point. Beyond a certain threshold, additional turns increase resistance, leading to energy losses as heat. Thus, practical designs often involve trade-offs between maximizing EMF and minimizing losses. For hobbyists or DIY enthusiasts, starting with fewer turns and gradually increasing them while monitoring performance can provide valuable insights into this balance.
In conclusion, the relationship between coil turns and EMF is a cornerstone of electromagnetic device design. Whether for industrial applications or personal projects, understanding this relationship allows for informed decisions about coil configuration. By experimenting with different turn counts and observing the resulting EMF, one can gain hands-on experience with Faraday’s law. Practical tips include using insulated copper wire to minimize short circuits and ensuring uniform winding to maintain consistent magnetic flux linkage. This knowledge not only enhances theoretical understanding but also empowers practical innovation.
Understanding the Equality Act: Bill or Law? Key Insights Explained
You may want to see also
Explore related products
Direction of induced current flow
Faraday's law of electromagnetic induction is a cornerstone of electromagnetism, relating the induced electromotive force (EMF) in a conductor to the rate of change of magnetic flux through the loop. One of the most intriguing aspects of this law is the direction of the induced current flow, which is governed by Lenz's law. This principle states that the induced current will always flow in a direction that opposes the change in magnetic flux that produced it. Understanding this direction is crucial for designing and analyzing electrical devices such as generators, transformers, and induction coils.
To determine the direction of induced current, consider a simple scenario: a magnet moving toward a closed loop of wire. As the magnet approaches, the magnetic flux through the loop increases. According to Lenz's law, the induced current will flow in a direction that creates a magnetic field opposing this increase. Using the right-hand rule, if you point your thumb in the direction of the applied magnetic field (toward the loop), your curled fingers indicate the direction of the induced current. This ensures the generated magnetic field opposes the motion of the magnet, demonstrating the law’s inherent conservation of energy.
In practical applications, such as in a generator, the direction of induced current is vital for efficiency. For instance, in a bicycle dynamo, the rotating magnet induces a current in the coil. The current’s direction is consistently adjusted to counteract the change in magnetic flux caused by the rotation. This principle ensures the dynamo produces a steady flow of electricity to power the bike’s lights. Engineers must account for this directional behavior to optimize device performance and prevent energy losses.
A comparative analysis reveals that the direction of induced current is not arbitrary but a direct consequence of the system’s attempt to maintain equilibrium. For example, in a transformer, the primary and secondary coils’ currents are induced in opposite directions to ensure efficient energy transfer. This contrasts with systems like induction cooktops, where the induced current in the cooking vessel generates heat through resistance, and the direction is less critical than the magnitude. Each application highlights the adaptability of Faraday’s law while underscoring the universal role of Lenz’s law in dictating current direction.
Finally, mastering the direction of induced current flow requires both theoretical understanding and practical experimentation. A useful tip for students is to visualize the system using the right-hand rule and verify predictions through simple setups, such as moving a magnet through a coil connected to a galvanometer. For advanced users, software simulations can model complex scenarios, providing insights into how current direction affects system behavior. By combining these approaches, one can develop a robust intuition for applying Faraday’s law in diverse contexts.
How to Ask a Lawyer About Their Legal Specialization
You may want to see also
Explore related products
Link between conductor motion and EMF production
Faraday's law of electromagnetic induction establishes a fundamental relationship between a changing magnetic field and the electromotive force (EMF) it induces in a conductor. At the heart of this relationship lies the motion of the conductor itself. When a conductor moves through a magnetic field, or when the magnetic field changes around a stationary conductor, the magnetic flux linking the conductor changes. This change in magnetic flux is directly proportional to the EMF induced, as quantified by Faraday's law: EMF = -dΦ/dt, where Φ is the magnetic flux and *t* is time. The negative sign indicates the direction of the induced EMF, following Lenz's law, which ensures the induced current opposes the change causing it.
Consider a practical example: a wire loop rotating in a uniform magnetic field. As the loop spins, different segments of the wire experience varying magnetic flux due to their changing orientation relative to the field lines. This dynamic flux linkage generates an EMF around the loop, driving a current if the circuit is closed. The faster the rotation (higher angular velocity) and the stronger the magnetic field, the greater the induced EMF. This principle underpins the operation of electric generators, where mechanical energy (motion) is converted into electrical energy through the interplay of conductor motion and magnetic fields.
Analyzing the link between conductor motion and EMF production reveals its dependence on three key factors: the speed of the conductor, the strength of the magnetic field, and the angle between the conductor's velocity vector and the magnetic field lines. For instance, if a conductor moves perpendicular to a magnetic field, the induced EMF is maximized. Conversely, if the motion is parallel to the field, no EMF is generated. This relationship is described mathematically by the equation EMF = B·L·v·sin(θ), where *B* is the magnetic field strength, *L* is the length of the conductor, *v* is its velocity, and *θ* is the angle between *v* and *B*. This formula highlights the importance of relative motion and orientation in EMF production.
To harness this phenomenon effectively, engineers and designers must consider practical constraints. For example, in designing a linear generator for wave energy conversion, the conductor's motion must align optimally with the magnetic field to maximize EMF output. Similarly, in automotive alternators, the rotor's speed and magnetic field strength are carefully calibrated to ensure efficient electrical power generation. A key takeaway is that understanding the link between conductor motion and EMF production allows for the optimization of systems where mechanical energy is converted into electricity, from small-scale devices to large industrial applications.
In conclusion, the link between conductor motion and EMF production is a cornerstone of electromagnetic induction, governed by Faraday's law. By manipulating the speed, orientation, and magnetic environment of a conductor, one can control the induced EMF, enabling a wide range of technological applications. Whether in renewable energy systems, electric vehicles, or household appliances, this principle demonstrates the profound connection between mechanical motion and electrical phenomena, underscoring its significance in modern engineering and everyday life.
