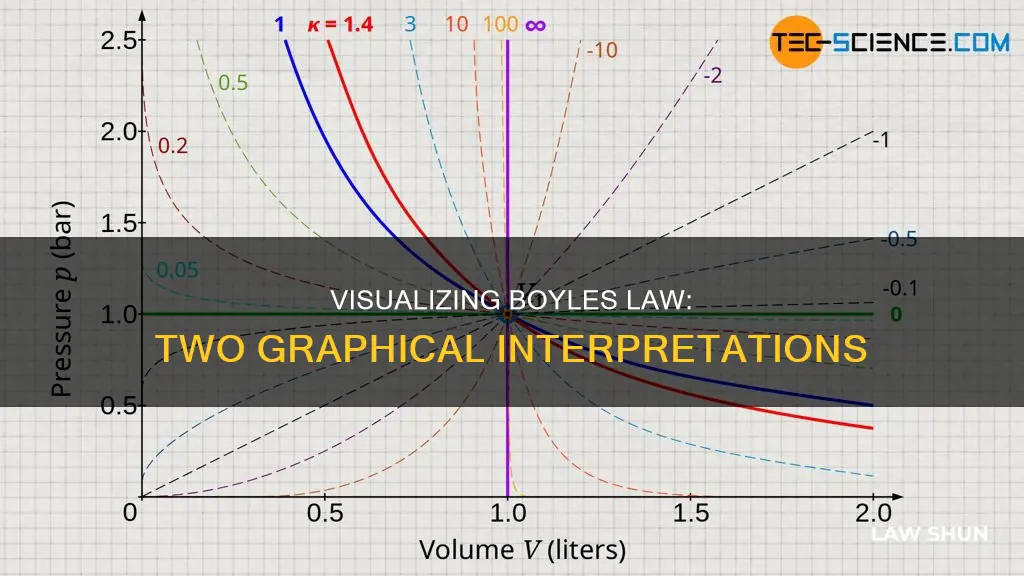

Boyle's Law, discovered by physicist Robert Boyle in 1662, states that pressure and volume are inversely proportional to each other at a constant temperature and a fixed amount of gas. This means that as pressure increases, volume decreases, and vice versa. To illustrate this law graphically, two graphs are commonly used: a pressure-volume (P-V) graph and a hyperbola graph. The P-V graph, with volume on the x-axis and pressure on the y-axis, shows a hyperbolic curve, demonstrating the inverse relationship between pressure and volume. The hyperbola graph, on the other hand, illustrates the same principle of inverse proportionality, but with two asymptotes, horizontal and vertical, showing that pressure and volume approach but never reach zero.
| Characteristics | Values |
|---|---|
| Type of Graph | Pressure-Volume (P-V) Graph |
| X-axis | Volume (V) |
| Y-axis | Pressure (P) |
| Shape of Curve | Hyperbolic |
| Nature of Relationship | Inversely Proportional |
Explore related products
What You'll Learn
The x-axis represents volume, and the y-axis pressure
Boyle's Law, named after Anglo-Irish chemist Robert Boyle, was first published in 1662. It is a gas law that describes the relationship between the pressure and volume of a confined gas. In simple terms, it states that the pressure exerted by a gas is inversely proportional to the volume it occupies, as long as the temperature and quantity of the gas remain constant.
Boyle's Law can be represented mathematically as: PV = constant (where P is pressure and V is volume). This law can be illustrated graphically using a pressure-volume (P-V) graph. On this graph, the x-axis represents volume (V) and the y-axis represents pressure (P). The relationship between pressure and volume is depicted as a hyperbolic curve. As the volume decreases (moving left on the x-axis), the pressure increases proportionally (moving up on the y-axis). Conversely, as the volume increases, the pressure decreases.
The P-V graph is a powerful tool for understanding the inverse relationship between pressure and volume in a confined gas. It provides a visual representation of Boyle's Law, allowing scientists and students to grasp the concept more intuitively. The x-axis, representing volume, illustrates how changes in volume impact the pressure of the gas. Similarly, the y-axis, representing pressure, shows how variations in pressure are directly influenced by changes in volume.
The shape of the hyperbolic curve on the P-V graph is a distinctive feature. It demonstrates that as pressure increases, the volume never reaches zero, and vice versa. This curve illustrates the fundamental principle that as one variable changes, the other responds in a predictable manner, as long as temperature and the amount of gas remain constant.
In summary, the x-axis representing volume and the y-axis representing pressure on the P-V graph provide a clear and concise way to visualise Boyle's Law. This graphical representation allows for a deeper understanding of the relationship between pressure and volume in gases, making it a valuable tool in the fields of physics and chemistry.
