Ampere's Law, a fundamental principle in electromagnetism, relates the magnetic field around a closed loop to the electric current passing through the area bounded by that loop. When applying Ampere's Law, it is crucial to consider all currents that contribute to the magnetic field, including both free currents and bound currents. Free currents are those carried by moving charges in conductors, such as wires, and are typically the focus in practical applications. Bound currents, on the other hand, arise from the motion of charges within atoms or molecules, such as magnetization currents and polarization currents, and are essential in understanding the behavior of magnetic materials. Additionally, in more advanced contexts, displacement currents—which account for time-varying electric fields—must also be included to ensure the law remains consistent with Maxwell's equations. Thus, a comprehensive calculation of Ampere's Law requires careful consideration of all these current components to accurately describe the magnetic field.
| Characteristics | Values |
|---|---|
| Type of Currents Included | All free currents (conduction currents) and bound currents (magnetization currents) |
| Free Currents | Currents due to the flow of free charges (e.g., electrons in a wire) |
| Bound Currents | Currents due to the orbital motion of electrons or intrinsic magnetic moments |
| Enclosed Currents | Only currents passing through the closed loop (Amperian loop) are included |
| Direction of Currents | Currents are considered positive if they pass through the loop in the direction of the chosen normal vector |
| Time Dependence | Applies to both steady and time-varying currents |
| Displacement Currents | Not included in the original Ampere's Law; added in Maxwell's correction |
| Magnetic Field Contribution | Only currents directly enclosed by the loop contribute to the magnetic field |
| Symmetry Consideration | Symmetry of the current distribution can simplify calculations |
| Units of Current | Amperes (A) |
| Mathematical Representation | ∮ B · dl = μ₀ (I_enclosed + ε₀ dΦE/dt), where the last term is Maxwell's addition |
Explore related products
$29.22 $36.99
What You'll Learn
- Conduction Currents: Currents due to flow of charge carriers in conductors, like wires
- Displacement Currents: Time-varying electric fields contributing to current in capacitors
- Surface Currents: Currents confined to the surface of a conductor
- Volume Currents: Currents distributed throughout a material's volume
- Enclosed Currents: Only currents passing through the chosen Amperian loop are included
Conduction Currents: Currents due to flow of charge carriers in conductors, like wires
Conduction currents, arising from the flow of charge carriers in conductors like wires, form a cornerstone of Ampere's Law calculations. These currents are the lifeblood of electrical circuits, powering everything from household appliances to industrial machinery. Understanding their role is crucial for accurately applying Ampere's Law, which quantifies the magnetic field generated by a current-carrying conductor.
At its core, a conduction current results from the movement of free electrons within a material. In metals, for instance, electrons are not tightly bound to their atoms, allowing them to drift under the influence of an electric field. This drift constitutes the current. The density of these free electrons, coupled with their velocity, determines the current's magnitude.
Calculating conduction currents within Ampere's Law involves integrating the current density (J) over the cross-sectional area (A) of the conductor: I = ∫ J · dA. This integral accounts for the distribution of current within the conductor, which may not always be uniform. For example, in a long, straight wire carrying a steady current, the current density is typically constant across the cross-section, simplifying the calculation to I = J · A.
It's essential to distinguish conduction currents from other types, such as displacement currents, which arise from changing electric fields in capacitors. While displacement currents are crucial in time-varying fields, conduction currents dominate in most practical applications involving steady-state circuits. For instance, when calculating the magnetic field around a current-carrying wire using Ampere's Law, only the conduction current within the wire is considered.
In practical scenarios, engineers and physicists often use simplified models to estimate conduction currents. For a circular wire with radius 'r' carrying a current 'I', the current density J = I / (πr²) can be assumed uniform. This assumption, while idealized, provides a good approximation for many real-world applications. However, in cases where the current distribution is non-uniform, such as in high-frequency circuits or irregularly shaped conductors, more sophisticated modeling techniques are required.
In conclusion, conduction currents, driven by the flow of charge carriers in conductors, are a fundamental component of Ampere's Law calculations. Their accurate determination, considering factors like current density and distribution, is vital for predicting magnetic fields in various electrical systems. By mastering the intricacies of conduction currents, practitioners can effectively apply Ampere's Law to design, analyze, and optimize a wide range of electromagnetic devices.
Oklahoma Roofing Laws: Understanding Shingling Regulations for Homeowners
You may want to see also
Explore related products
Displacement Currents: Time-varying electric fields contributing to current in capacitors
Ampere's Law, in its original form, only accounted for conduction currents—those flowing through wires or conductors. However, James Clerk Maxwell's addition of displacement currents revolutionized the equation, addressing inconsistencies in the theory of electromagnetism. Displacement currents arise from time-varying electric fields, particularly in capacitors, where they play a crucial role in maintaining the continuity of current in circuits. This concept bridges the gap between electric and magnetic phenomena, ensuring the consistency of Maxwell's equations.
Consider a charging capacitor: as the electric field between its plates increases, it induces a magnetic field around the wires connecting the capacitor. This magnetic field cannot be explained by conduction currents alone, as no charges are physically moving through the dielectric. Instead, the changing electric field itself acts as a source of current, known as the displacement current. Mathematically, it is defined as ε₀(dΦₑ/dt), where ε₀ is the permittivity of free space and dΦₑ/dt is the rate of change of electric flux. This term complements the conduction current in Ampere's Law, ensuring the law's applicability to all electromagnetic scenarios.
To visualize this, imagine a capacitor connected to a battery through a resistor. As the capacitor charges, the electric field between its plates grows, creating a displacement current that flows even in the absence of charge movement through the dielectric. This current contributes to the total current in the circuit, maintaining the integrity of Ampere's Law. Without accounting for displacement currents, the law would fail to predict the magnetic field around the capacitor, highlighting their essential role in electromagnetic theory.
In practical applications, understanding displacement currents is vital for designing high-frequency circuits, where time-varying fields dominate. For instance, in radio frequency (RF) engineering, capacitors often exhibit significant displacement currents due to rapidly oscillating electric fields. Engineers must account for these currents to ensure accurate circuit behavior and prevent signal distortion. By incorporating displacement currents into calculations, designers can optimize performance and avoid pitfalls in high-speed electronic systems.
In conclusion, displacement currents are not merely a theoretical construct but a fundamental aspect of electromagnetism with tangible implications. They ensure the completeness of Ampere's Law, enabling it to describe magnetic fields generated by both conduction and time-varying electric fields. Whether in the charging of a capacitor or the operation of advanced electronic devices, displacement currents underscore the interconnectedness of electric and magnetic phenomena, cementing their place in the foundation of modern physics.
Essential Pre-Law Courses: Building a Strong Foundation for Law School
You may want to see also
Explore related products
![by Edward Leedskalnin Magnetic Current (text only)Paperback]2010](https://m.media-amazon.com/images/I/81rXsMb350L._AC_UL320_.jpg)
Surface Currents: Currents confined to the surface of a conductor
Surface currents, confined to the surface of a conductor, play a critical role in the application of Ampere's Law, particularly in scenarios involving high-frequency electromagnetic fields or good conductors. When a conductor is exposed to a time-varying magnetic field or carries an alternating current, the current tends to distribute itself predominantly at the surface rather than penetrating the bulk material. This phenomenon, known as the skin effect, becomes more pronounced as the frequency of the current increases. For instance, in a 60 Hz power system, the skin depth—the distance below the surface where the current density drops to 1/e (approximately 37%) of its surface value—is about 8.5 mm for copper. At 1 MHz, this depth reduces to roughly 6.5 micrometers, effectively confining the current to a thin surface layer.
Analyzing the impact of surface currents on Ampere's Law calculations reveals their significance in practical applications. Ampere's Law states that the line integral of the magnetic field around a closed loop is proportional to the total current passing through the loop. When dealing with surface currents, the effective current enclosed by the loop is only the component within the skin depth. For example, in a cylindrical conductor, the surface current density \( J_s \) can be modeled as \( J_s = J_0 e^{-\delta / d} \), where \( J_0 \) is the surface current density, \( \delta \) is the skin depth, and \( d \) is the distance from the surface. This exponential decay ensures that only the outermost layer contributes significantly to the magnetic field, simplifying calculations by treating the conductor as a hollow tube carrying current.
Instructively, engineers and physicists must account for surface currents when designing high-frequency devices such as radiofrequency coils, transformers, or transmission lines. Ignoring the skin effect can lead to overestimating the effective cross-sectional area of the conductor, resulting in inaccurate predictions of inductance, resistance, and power loss. To mitigate this, designers often use stranded or litz wire, which increases the effective surface area and reduces losses by distributing the current across multiple thin strands. For instance, a litz wire with 100 strands can reduce skin effect losses by a factor of 10 compared to a solid conductor of the same cross-sectional area.
Persuasively, understanding surface currents is not merely an academic exercise but a practical necessity for optimizing performance in modern electrical systems. Consider the design of a 10 MHz RF coil for magnetic resonance imaging (MRI). Without accounting for the skin effect, the coil's efficiency would plummet due to excessive resistive heating in the conductor's core. By confining the current to the surface, the coil can operate efficiently, minimizing energy loss and maximizing signal-to-noise ratio. This principle extends to other high-frequency applications, such as wireless power transfer and microwave circuits, where surface currents dominate and dictate design choices.
Comparatively, surface currents highlight the contrast between static and dynamic electromagnetic scenarios. In DC systems, currents are uniformly distributed across the conductor's cross-section, and Ampere's Law calculations are straightforward. However, in AC systems, the skin effect introduces complexity, requiring a nuanced approach to current distribution. For example, a 1 cm diameter copper rod carrying a 1 A DC current has a uniform current density, but at 1 MHz, 98% of the current flows within a 6.5 micrometer surface layer. This disparity underscores the importance of frequency-dependent analysis in electromagnetic modeling and design.
In conclusion, surface currents are a fundamental consideration in applying Ampere's Law to high-frequency or good conductor scenarios. By recognizing their confinement to the surface and quantifying their impact through skin depth calculations, engineers can accurately predict magnetic fields and optimize device performance. Whether designing RF coils, transformers, or transmission lines, accounting for surface currents ensures efficiency, reduces losses, and aligns theoretical models with practical realities. This knowledge bridges the gap between idealized electromagnetic theory and real-world applications, making it an indispensable tool in modern electrical engineering.
Understanding the Legal Barriers to Detaining Undocumented Immigrants at the Border
You may want to see also
Explore related products
Volume Currents: Currents distributed throughout a material's volume
Volume currents represent a fundamental yet often overlooked aspect of Ampere's Law, particularly in materials where charge carriers are not confined to surfaces or wires but are distributed throughout the bulk. Unlike surface or edge currents, which are localized, volume currents arise from the movement of charges within the entire three-dimensional space of a material. This phenomenon is critical in understanding electromagnetic behavior in conductors, semiconductors, and even biological tissues, where charge distribution is inherently volumetric.
Consider a cylindrical conductor carrying a steady current. While the current density near the surface may be higher due to the skin effect, the contribution to Ampere's Law comes from the total current enclosed by the chosen loop. In this case, the current is not just a surface phenomenon but a cumulative effect of charge movement throughout the conductor's volume. Mathematically, the volume current density J is integrated over the entire cross-sectional area to determine the total current enclosed. For instance, in a conductor with uniform current density, the total current I is given by I = J ⋅ A, where A is the cross-sectional area. This highlights the importance of accounting for the entire volume, not just the surface, in calculations.
In practical applications, such as designing magnetic resonance imaging (MRI) systems, understanding volume currents is essential. Biological tissues, composed of electrolytes and charged ions, exhibit volume currents when subjected to external electric fields. These currents contribute to the magnetic fields measured in MRI, influencing image quality and safety. For example, in a 3 Tesla MRI scanner, the induced volume currents in muscle tissue can reach densities of up to 10 A/m², depending on the applied gradient fields. Engineers must account for these currents to ensure patient safety and system accuracy.
To incorporate volume currents into Ampere's Law calculations, follow these steps: first, determine the current density distribution J(r) within the material, which may vary spatially. Second, define the closed loop or surface over which Ampere's Law is applied. Finally, integrate the current density over the volume enclosed by the loop using the formula ∮ B ⋅ dl = μ₀ ∫ J ⋅ dA, where B is the magnetic field, μ₀ is the permeability of free space, and the integral is taken over the entire volume. Caution must be exercised when dealing with non-uniform current distributions, as approximations can lead to significant errors in magnetic field predictions.
In conclusion, volume currents are a critical component of Ampere's Law, particularly in scenarios where charge movement is not confined to surfaces. By accurately accounting for these currents, engineers and physicists can model electromagnetic phenomena more precisely, leading to advancements in technologies ranging from power transmission to medical imaging. Ignoring volume currents in such calculations risks underestimating magnetic fields and compromising system performance or safety.
OSHA Ladder Safety: Understanding Tie-Off Requirements for Workers
You may want to see also
Explore related products
Enclosed Currents: Only currents passing through the chosen Amperian loop are included
Ampere's Law, a cornerstone of electromagnetism, simplifies the calculation of magnetic fields by relating them to the currents producing them. However, not all currents contribute equally. A critical principle governs this selection: only currents passing through the chosen Amperian loop are included. This rule, known as the "enclosed currents" criterion, is both powerful and restrictive, demanding careful consideration when applying the law.
Imagine a wire carrying a current. To apply Ampere's Law, you must first define a closed path, or Amperian loop, through which you integrate the magnetic field. The key lies in understanding that only the current enclosed by this loop—that is, the current passing through the area bounded by the loop—contributes to the calculation. Currents outside the loop, regardless of their magnitude or proximity, are excluded. For instance, if your loop encircles a single wire, only the current in that wire matters. If the loop encloses multiple wires, the sum of their currents is considered, but only if they lie within the loop's boundary.
This principle has practical implications. Consider a scenario where two parallel wires carry currents in opposite directions. If your Amperian loop encloses only one wire, the current in the other wire, despite being nearby, does not factor into the calculation. This selectivity allows Ampere's Law to isolate the contribution of specific currents, simplifying complex systems. However, it also requires precision in defining the loop to ensure it captures the intended currents.

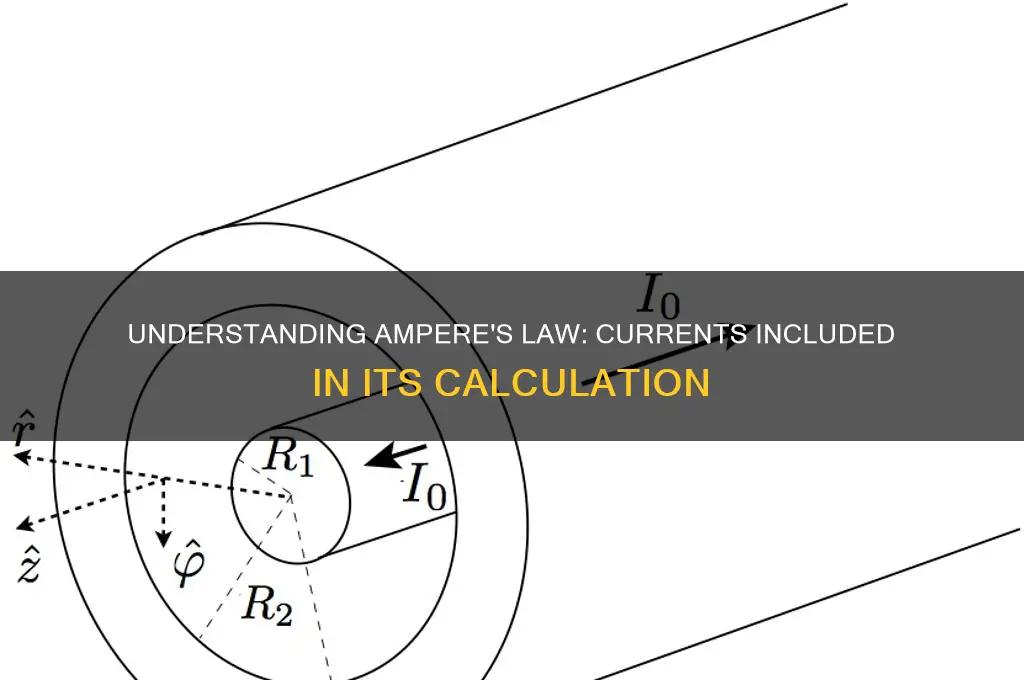

A common mistake is assuming that all currents in a system are relevant. For example, in a coaxial cable with inner and outer conductors, only the current enclosed by the loop—whether in the inner conductor, outer conductor, or both—is included. If the loop encloses only the inner conductor, the outer conductor's current is irrelevant, even if it carries a significant current. This underscores the importance of visualizing the loop and identifying the currents it encloses.
In summary, the "enclosed currents" rule is a fundamental aspect of Ampere's Law, dictating that only currents passing through the chosen Amperian loop contribute to the calculation. This principle enables the law's utility in simplifying magnetic field calculations but demands careful loop selection. By focusing on enclosed currents, practitioners can accurately apply Ampere's Law to a wide range of electromagnetic problems, from simple wires to complex systems.
Michelle Obama's Harvard Law Graduation Year Revealed
You may want to see also
Frequently asked questions
Ampere's Law includes all currents that pass through the closed loop (Amperian loop) you define. This includes both free currents (conduction currents in wires or conductors) and bound currents (currents due to the motion of charges within atoms or molecules in materials).
No, currents outside the Amperian loop are not directly included in the calculation of Ampere's Law. Only currents passing through the loop contribute to the line integral of the magnetic field.
The original form of Ampere's Law does not account for time-varying electric fields. However, the extended form, known as the Ampere-Maxwell Law, includes the displacement current term, which accounts for time-varying electric fields and ensures consistency with Faraday's Law of induction.
