Gavin Howe

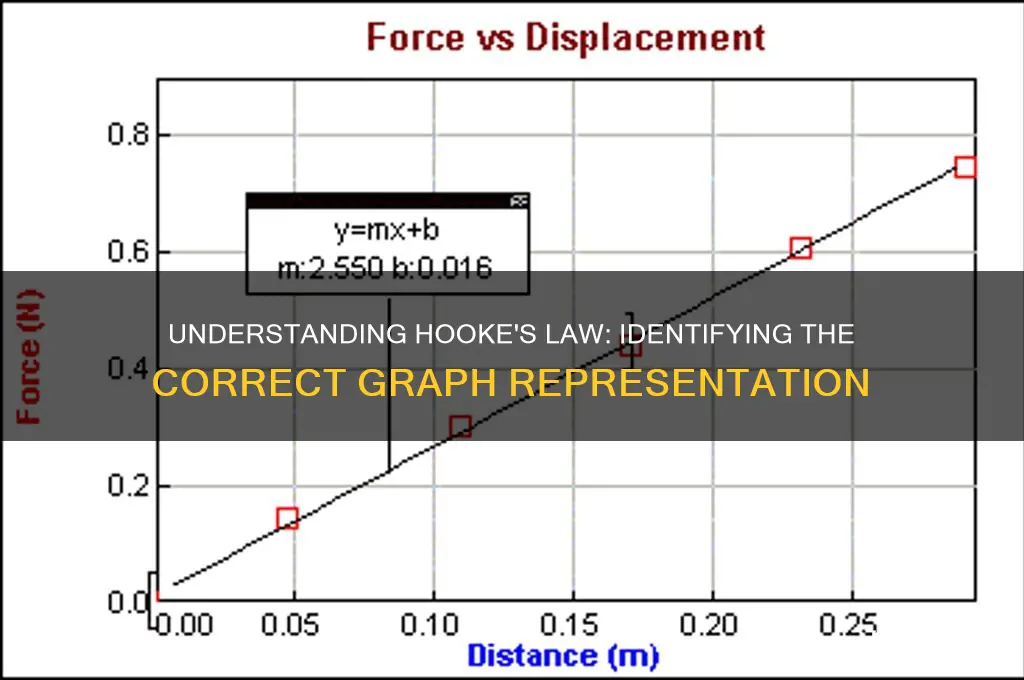

Hooke's Law, a fundamental principle in physics, states that the force exerted by a spring is directly proportional to its displacement from equilibrium, provided the material does not exceed its elastic limit. When analyzing graphs to identify which one illustrates Hooke's Law, we look for a linear relationship between force and displacement. Specifically, the graph should show a straight line passing through the origin, indicating that the force increases uniformly as the spring is stretched or compressed. Among the graphs in the figure, the one that displays this linear relationship is the correct representation of Hooke's Law. Other graphs may show nonlinear behavior, such as curves or discontinuities, which would indicate deviations from Hooke's Law due to factors like material limitations or excessive deformation.
Explore related products
What You'll Learn
Linear Relationship Between Force and Extension
The linear relationship between force and extension is a cornerstone of Hooke's Law, a principle that governs the behavior of springs and elastic materials under stress. When examining graphs that illustrate this law, the key characteristic to look for is a straight line passing through the origin. This line represents a direct proportionality: as the force applied to a spring increases, the extension (or deformation) of the spring increases linearly. For instance, if a spring extends by 2 cm under a force of 4 N, it will extend by 4 cm under 8 N, assuming the material remains within its elastic limit.
To identify the correct graph illustrating Hooke's Law, focus on the slope of the line. The slope represents the spring constant (*k*), a measure of the spring's stiffness. A steeper slope indicates a stiffer spring, while a gentler slope suggests a more flexible one. For example, if a graph shows a spring extending 10 cm under 50 N, the spring constant is 5 N/cm. This linear relationship breaks down beyond the elastic limit, where the graph deviates from a straight line, indicating permanent deformation.
Practical applications of this linear relationship are widespread. Engineers use it to design suspension systems in vehicles, ensuring optimal performance under varying loads. In medical devices, such as tension springs in surgical instruments, understanding this relationship ensures precision and safety. For DIY enthusiasts, knowing Hooke's Law helps in selecting the right spring for projects like door closers or toy mechanisms. Always measure force in newtons (N) and extension in meters (m) for consistency, and avoid exceeding the material's elastic limit to prevent damage.
A comparative analysis of graphs reveals that non-linear relationships, such as those with curved or horizontal segments, do not adhere to Hooke's Law. These deviations often indicate material fatigue, plastic deformation, or non-uniform stress distribution. For instance, a graph showing increasing extension with constant force suggests the material is yielding, while a sudden drop in force at a given extension indicates failure. By contrast, the linear graph is a hallmark of ideal elastic behavior, making it the definitive illustration of Hooke's Law.
In conclusion, the linear relationship between force and extension is not just a theoretical concept but a practical tool for predicting material behavior. By recognizing this relationship in graphs, one can assess the suitability of materials for specific applications, ensure structural integrity, and troubleshoot mechanical issues. Whether in advanced engineering or simple home repairs, mastering this principle empowers individuals to work with elastic materials effectively and safely.
Exploring Jamaica's Law School Age Requirements and Eligibility Criteria
You may want to see also
Explore related products
Elastic Materials Under Stress
Elastic materials, when subjected to stress, exhibit a fascinating relationship between force and deformation, a principle elegantly captured by Hooke's Law. This law states that the force required to extend or compress a spring is directly proportional to the distance it is stretched or compressed, provided the material does not exceed its elastic limit. In graphical terms, this relationship is often depicted as a straight line, where the slope represents the material's stiffness or spring constant (k). For instance, a graph showing stress (force per unit area) on the y-axis and strain (deformation) on the x-axis will illustrate Hooke's Law as a linear segment, provided the material behaves elastically.
To identify which graph illustrates Hooke's Law, look for the one where the stress-strain curve is linear up to a certain point. Beyond this point, the material may begin to yield, and the relationship is no longer linear. For example, in a typical stress-strain graph for a metal like steel, the initial straight-line portion represents elastic deformation, adhering to Hooke's Law. The slope of this line is the Young's modulus, a measure of the material's stiffness. Practical applications of this principle are seen in engineering, where materials like rubber, steel, and certain polymers are chosen based on their elastic properties to ensure they perform predictably under stress.
When analyzing elastic materials under stress, it’s crucial to understand the limitations of Hooke's Law. While it provides a useful approximation for small deformations, it fails when materials are stretched or compressed beyond their elastic limit. For instance, a rubber band can be stretched linearly up to a point, but excessive force will cause it to deform permanently or break. Engineers and designers must account for this by selecting materials with appropriate elastic limits and ensuring that operating stresses remain within the linear region of the stress-strain curve. This ensures longevity and reliability in applications ranging from automotive suspensions to medical devices.
A comparative analysis of materials under stress reveals that not all substances adhere to Hooke's Law equally. For example, metals like copper and aluminum exhibit clear linear behavior in the elastic region, making them ideal for structural applications. In contrast, materials like plastics and rubber may show more complex behavior, with initial linearity followed by nonlinear deformation. Understanding these differences is key to material selection. For instance, a spring in a watch requires a material with a high elastic modulus and linear behavior, whereas a shock absorber might use a material that allows for controlled nonlinear deformation to dissipate energy effectively.
In practical terms, applying Hooke's Law involves calculating the force or deformation in elastic materials using the formula *F = kx*, where *F* is the force, *k* is the spring constant, and *x* is the displacement. For example, if a spring with a spring constant of 200 N/m is stretched by 0.1 meters, the force required is 20 N. This calculation is essential in designing systems like car suspensions, where the spring must provide the right balance of stiffness and flexibility. However, caution must be exercised to ensure that the material does not exceed its elastic limit, as this can lead to permanent deformation or failure. Regular inspection and maintenance are recommended to ensure materials remain within their elastic range, especially in high-stress applications.
Australia Without Laws: Chaos, Freedom, or a New Social Order?
You may want to see also
Explore related products
Proportional Limit Demonstration
The proportional limit is a critical concept in understanding Hooke's Law, which states that the force required to extend or compress a spring is directly proportional to the distance it is stretched or compressed, provided this distance is small. In a stress-strain graph, the proportional limit is the point up to which this linear relationship holds. Beyond this point, the material may begin to deform plastically, and Hooke's Law no longer applies. Identifying this limit is essential for engineers and material scientists to ensure the safe and efficient use of materials in various applications.
To demonstrate the proportional limit, consider a simple experiment using a steel wire or a spring. Attach one end of the wire to a fixed support and the other to a hanger, allowing weights to be added incrementally. Measure the extension of the wire for each added weight and plot the stress (force per unit area) against the strain (fractional deformation). Initially, the graph will show a straight line, indicating that stress is directly proportional to strain—a clear illustration of Hooke's Law. However, as more weight is added, the line may begin to curve, signaling the onset of plastic deformation and the end of the proportional limit.
Analyzing the graph, the proportional limit is marked by the highest stress value where the stress-strain curve remains linear. For example, in a mild steel specimen, this limit might occur at a stress of approximately 250 MPa, depending on the material's properties. Beyond this point, the material yields, and permanent deformation occurs. This demonstration highlights the importance of staying within the proportional limit to avoid structural failure, particularly in load-bearing components like beams, columns, or springs.
Practical tips for conducting this demonstration include using a high-precision extensometer to measure small deformations accurately and ensuring the material is free from defects or pre-existing stresses. For educational purposes, start with a spring before moving to more complex materials like metals, as springs provide a clear and immediate visual representation of Hooke's Law. Always record data systematically and plot it in real-time to observe the transition from elastic to plastic behavior.
In conclusion, the proportional limit demonstration is a powerful way to visualize Hooke's Law and its boundaries. By understanding this limit, engineers can design structures that operate safely within the elastic range of materials, preventing catastrophic failures. This hands-on approach not only reinforces theoretical knowledge but also fosters a deeper appreciation for the practical implications of material behavior under stress.
Veto Power: Which Laws Can Be Overridden by Presidential Authority?
You may want to see also
Explore related products
Slope as Spring Constant
The slope of a force-displacement graph is a critical indicator of a spring's stiffness, directly embodying Hooke's Law. This linear relationship, F = -kx, reveals that the spring constant (k) is numerically equivalent to the slope of the line when force (F) is plotted against displacement (x). A steeper slope signifies a higher spring constant, indicating a stiffer spring that resists deformation more vigorously. Conversely, a gentler slope represents a more compliant spring with a lower spring constant.
Understanding this slope-spring constant relationship allows for practical predictions. For instance, if a graph shows a spring exerting 10 N of force at a displacement of 0.2 meters, the slope (and thus the spring constant) is 50 N/m. This means the spring will exert 25 N of force at 0.5 meters displacement, and 75 N at 0.75 meters, demonstrating the linearity dictated by Hooke's Law.
This principle extends beyond ideal springs. Materials exhibiting elastic behavior within their limit of proportionality will also display linear force-displacement graphs, with the slope representing their effective spring constant. This allows engineers to analyze the stiffness of various materials and structures, ensuring they can withstand anticipated loads without permanent deformation.
Imagine comparing two springs: one with a slope of 200 N/m and another with 50 N/m. The first spring, with its steeper slope, is significantly stiffer, requiring twice the force to achieve the same displacement as the second spring. This comparison highlights the direct correlation between slope and spring constant, providing a quantitative measure of a spring's resistance to deformation.
It's crucial to remember that this linear relationship holds only within the elastic limit. Beyond this point, the graph deviates from linearity, indicating plastic deformation where the material no longer returns to its original shape. Recognizing this limitation is essential for accurate analysis and safe application of springs and elastic materials.
Hawaii's Reef Safe Sunscreen Law: Start Date and Impact
You may want to see also
Explore related products
Deviations from Linearity Explained
Hooke's Law, a fundamental principle in physics, states that the force required to extend or compress a spring is directly proportional to the distance it is stretched or compressed, provided the material does not exceed its elastic limit. When examining graphs that illustrate this law, a perfectly linear relationship between force and displacement is expected. However, in real-world scenarios, deviations from linearity often occur, revealing important insights into material behavior. These deviations can be attributed to factors such as material properties, temperature changes, and the onset of plastic deformation. Understanding these deviations is crucial for engineers and scientists to predict how materials will perform under stress.
One common deviation from linearity occurs when a material is subjected to forces beyond its elastic limit. Initially, the graph follows Hooke's Law, showing a straight line. However, as the force increases, the line begins to curve, indicating that the material is no longer responding elastically. For example, in a stress-strain graph, this deviation is marked by the yield point, where the material starts to deform permanently. In practical terms, this means that a spring stretched beyond this point will not return to its original shape, a critical consideration in designing structures like bridges or automotive components. To avoid such failures, engineers often incorporate safety factors, ensuring that materials operate well within their elastic limits.
Another factor contributing to deviations is temperature. Materials like metals exhibit reduced elasticity at higher temperatures due to increased atomic vibrations. This results in a graph that becomes less linear as temperature rises, with the slope decreasing over time. For instance, a rubber band stretched at room temperature will follow Hooke's Law more closely than one stretched at elevated temperatures. To mitigate this, materials are often tested under controlled temperature conditions, and thermal coefficients are applied to adjust for real-world applications. This is particularly important in industries such as aerospace, where materials are exposed to extreme temperature variations.
Comparatively, deviations can also arise from the inherent properties of the material itself. Polymers, for example, often show nonlinear behavior due to their long-chain molecular structure, which allows for more complex deformation mechanisms. Unlike metals, which typically exhibit linear behavior until the yield point, polymers may display gradual deviations from linearity even at low strains. This makes them suitable for applications requiring flexibility but necessitates careful material selection and testing. For instance, in medical devices like catheters, polymers are chosen for their ability to deform without permanent damage, but their nonlinear behavior must be accounted for in design calculations.
In conclusion, deviations from linearity in graphs illustrating Hooke's Law are not merely anomalies but valuable indicators of material behavior under stress. By analyzing these deviations, engineers can better predict material performance, select appropriate materials, and design safer, more efficient structures. Whether caused by exceeding the elastic limit, temperature changes, or material properties, understanding these deviations is essential for practical applications. For anyone working with materials under load, recognizing and interpreting these nonlinearities is a key skill that bridges theoretical physics with real-world engineering.
NY Bail Reform Law: Crimes Affected and Legal Implications
You may want to see also
Frequently asked questions
Hooke's Law states that the force required to extend or compress a spring by some distance is proportional to that distance, provided the material does not exceed its elastic limit.
A straight-line graph with a positive slope illustrates Hooke's Law, where the force (F) is plotted on the y-axis and the extension or compression (x) is plotted on the x-axis.
The slope of the graph represents the spring constant (k), which is a measure of the stiffness of the spring and is unique to each spring.
If a graph does not show a straight line, it may indicate that the material has exceeded its elastic limit, and the relationship between force and extension is no longer linear, possibly due to plastic deformation.
