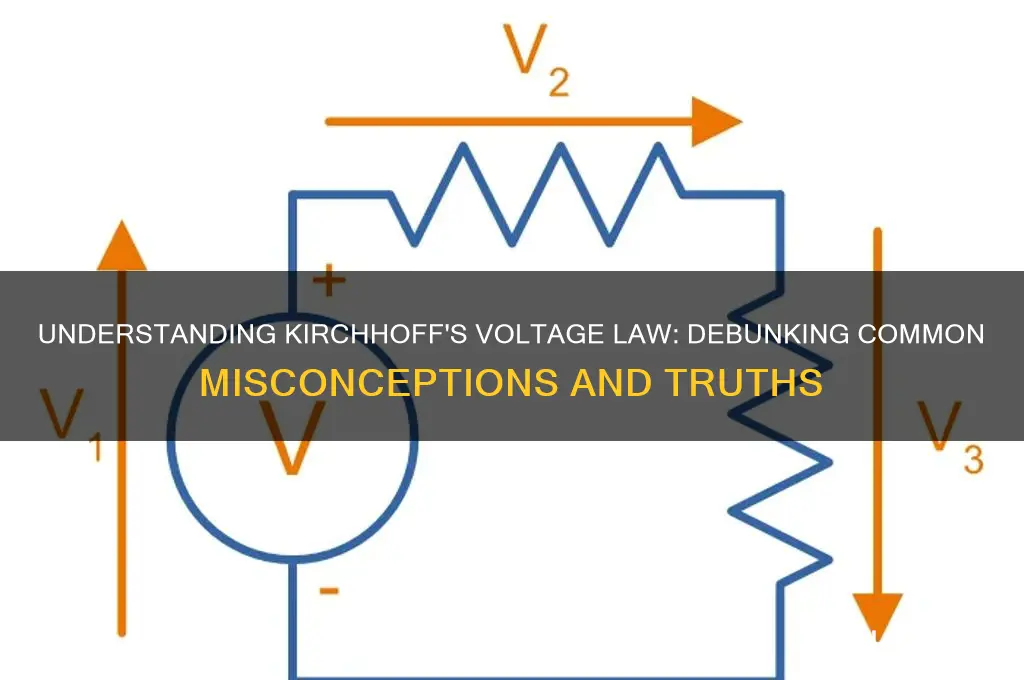

Kirchhoff's Voltage Law (KVL) is a fundamental principle in electrical circuit analysis, stating that the algebraic sum of all voltages around any closed loop in a circuit is equal to zero. This law is based on the conservation of energy, ensuring that the total energy gained by voltage sources in a loop is equal to the total energy dissipated by the components within that loop. When evaluating statements about KVL, it is crucial to consider whether they accurately reflect this principle. For instance, a true statement would affirm that the sum of voltage drops across resistors and rises across sources in a closed loop always equals zero, while a false statement might suggest that this balance does not hold under certain conditions. Understanding KVL is essential for analyzing and solving complex circuits, making it a cornerstone of electrical engineering.
| Characteristics | Values |
|---|---|
| Law Type | Kirchhoff's Voltage Law (KVL) is a fundamental principle in electrical circuits. |
| Statement | The sum of the voltages around any closed loop in a circuit is zero. |
| Application | Applies to any closed loop in a circuit, regardless of complexity. |
| Energy Conservation | Reflects the conservation of energy in a circuit. |
| Sign Convention | Voltages are considered positive when traversing from negative to positive and negative when traversing from positive to negative. |
| Mathematical Representation | ΣV = 0, where ΣV is the sum of all voltages in a closed loop. |
| Independence of Path | The total voltage around any closed path is always zero, independent of the path chosen. |
| Relation to Current | Does not directly involve current; focuses solely on voltage drops and rises. |
| Applicability to Ideal and Real Circuits | Applies to both ideal and real circuits, though real circuits may have minor deviations due to parasitic elements. |
| Use in Circuit Analysis | Essential for solving complex circuits using methods like nodal analysis and mesh analysis. |
| Limitations | Assumes lumped circuit elements and neglects electromagnetic effects in high-frequency circuits. |
Explore related products
What You'll Learn
Series Circuits: Voltage Sum
In a series circuit, the voltage sum across all components is a direct application of Kirchhoff's Voltage Law (KVL), which states that the algebraic sum of voltages around any closed loop is zero. This principle is particularly illuminating when examining how voltage distributes across resistors or other elements in series. For instance, if a 12V battery powers a series circuit with three resistors, the total voltage supplied by the battery must equal the sum of the voltage drops across each resistor. This relationship is not just theoretical; it’s a practical tool for diagnosing circuit issues, such as identifying a faulty component that disrupts the expected voltage distribution.
To apply KVL in series circuits, follow these steps: first, identify the direction of current flow to determine the polarity of voltage drops. Next, measure the voltage across each component using a multimeter, ensuring the probes are connected in parallel to the component. Finally, sum these voltage drops and compare the result to the source voltage. For example, in a circuit with a 9V battery and two resistors, if one resistor drops 3V and the other drops 6V, the sum (9V) matches the source voltage, confirming compliance with KVL. Deviations from this sum indicate a problem, such as a loose connection or a malfunctioning component.
A common misconception is that voltage divides equally in series circuits, but this is only true if the components have equal resistance. In reality, voltage drops are proportional to resistance values, as described by Ohm’s Law (*V = IR*). For instance, in a series circuit with a 12V battery and resistors of 4Ω and 8Ω, the 8Ω resistor will drop twice the voltage of the 4Ω resistor (8V vs. 4V). This proportional distribution is a critical takeaway: voltage in series circuits is not shared equally but is allocated based on component characteristics.
Practical tips for working with series circuits include using a systematic approach to troubleshoot voltage discrepancies. Start by verifying the source voltage, then measure each component sequentially, noting any significant deviations. For educational purposes, demonstrate KVL by constructing a simple series circuit with a battery, resistors, and an LED. Observe how the LED’s brightness changes when resistors of varying values are added, illustrating the direct impact of voltage distribution on component behavior. This hands-on approach reinforces the theoretical principles of KVL in a tangible way.
In summary, the voltage sum in series circuits is a cornerstone of KVL, offering both diagnostic and design utility. By understanding how voltage distributes based on component resistance and applying systematic measurement techniques, engineers and hobbyists alike can ensure circuit integrity and predict behavior accurately. Whether troubleshooting a malfunctioning device or designing a new circuit, mastering this concept is essential for effective electrical work.
Apartheid Laws in South Africa: Three Key Statements Explained
You may want to see also
Explore related products
Parallel Circuits: Equal Voltage
In parallel circuits, components are connected across common nodes, creating multiple paths for current flow. A fundamental principle governing these circuits is Kirchhoff's Voltage Law (KVL), which states that the sum of voltages around any closed loop in a circuit is zero. When applied to parallel circuits, this law reveals a critical characteristic: all components in a parallel configuration experience the same voltage. This equality arises because each component is directly connected across the same two points in the circuit, ensuring that the voltage drop across each is identical to the source voltage.
Consider a practical example: a 12V battery connected to three resistors in parallel. Regardless of the resistors' values—whether 10Ω, 20Ω, or 100Ω—each resistor will have 12V across its terminals. This uniformity is a direct consequence of KVL, as the voltage drop across any single component must equal the source voltage in a parallel arrangement. This principle simplifies circuit analysis, as voltage calculations become straightforward without needing to account for variations across components.
However, it’s essential to distinguish between voltage and current in parallel circuits. While voltage remains constant across all components, current distribution varies based on each component’s resistance, following Ohm’s Law (*I = V/R*). For instance, a lower-resistance component will draw more current than a higher-resistance one, even though both experience the same voltage. This distinction highlights the unique interplay between KVL and Ohm’s Law in parallel circuits.
To apply this knowledge effectively, follow these steps: First, identify all components connected in parallel by tracing the circuit’s topology. Second, assign the source voltage to each parallel component. Third, calculate currents individually using Ohm’s Law, ensuring you account for each component’s resistance. A cautionary note: avoid assuming equal current flow in parallel circuits, as this misconception often leads to errors in circuit analysis.
In conclusion, the principle of equal voltage in parallel circuits is a direct application of Kirchhoff’s Voltage Law. This uniformity simplifies voltage calculations but requires careful consideration of current distribution. By mastering this concept, engineers and hobbyists alike can design and troubleshoot parallel circuits with precision, leveraging KVL’s foundational role in circuit analysis.
Mill's Intervention Principle: When Should Law Limit Individual Freedom?
You may want to see also
Explore related products
Energy Conservation Principle
Kirchhoff's Voltage Law (KVL) states that the sum of voltages around any closed loop in a circuit is zero. This principle is deeply intertwined with the Energy Conservation Principle, a cornerstone of physics. Here’s how they connect: in any closed circuit, energy cannot be created or destroyed—it merely transforms from one form to another. Voltage drops across resistive elements (like resistors) represent energy dissipation as heat, while voltage rises (from sources like batteries) represent energy input. KVL ensures these transformations balance, reflecting the conservation of energy in electrical systems.
Consider a simple series circuit with a 12V battery and three resistors. If the voltage drops across the resistors are 4V, 5V, and 3V, KVL confirms the total drop equals the battery’s voltage (12V), demonstrating energy balance. This isn’t just theoretical—it’s practical. For instance, in LED lighting systems, understanding this balance ensures the correct voltage distribution, preventing overheating or underperformance. Misapplication can lead to energy waste or component failure, underscoring the principle’s real-world importance.
To apply the Energy Conservation Principle effectively, follow these steps: 1) Identify all energy sources and sinks in your circuit. 2) Calculate voltage drops across each component using Ohm’s Law (*V = IR*). 3) Sum these values to verify they equal the source voltage. For example, in a 9V circuit with a 3Ω and 6Ω resistor in series, the current is 1A (using *I = V/R_total*), yielding drops of 3V and 6V—summing to 9V. This method ensures energy conservation is upheld.
A cautionary note: while KVL guarantees energy balance in ideal circuits, real-world factors like parasitic resistance or measurement errors can introduce discrepancies. Always account for these by using high-precision tools and double-checking calculations. For instance, a multimeter with 0.5% accuracy can minimize errors in voltage measurements, ensuring your analysis aligns with the conservation principle.
In conclusion, the Energy Conservation Principle isn’t just a theoretical companion to KVL—it’s a practical tool for designing efficient, safe circuits. By treating energy as a finite, transformable quantity, engineers and hobbyists alike can optimize systems, reduce waste, and extend component lifespans. Whether you’re troubleshooting a home circuit or designing industrial systems, this principle remains your steadfast guide.
Global Fishing Freedom: Countries with the Most Lenient Fishing Laws
You may want to see also
Explore related products
Loop Analysis Application
Kirchhoff's Voltage Law (KVL) states that the sum of voltages around any closed loop in a circuit is zero. This principle is foundational in circuit analysis, but its application in loop analysis—a method used to solve complex circuits—is where its true utility shines. Loop analysis, also known as the mesh current method, leverages KVL to simplify circuits with multiple loops by assigning currents to each loop and writing equations based on voltage drops and rises. This approach transforms a daunting circuit into a solvable system of linear equations, making it an indispensable tool for engineers and students alike.
Consider a circuit with three loops, each with resistors and voltage sources. To apply loop analysis, first identify the loops and assign a current direction for each. Next, apply KVL to each loop by summing the voltages encountered as you traverse the loop. For instance, in Loop 1, if you encounter a 5V battery and a resistor with a voltage drop of 3V, the equation would be \(5V - 3V = 0\). Repeat this process for all loops, ensuring each equation reflects the relationship between voltages and currents. This systematic approach reduces the complexity of the circuit, allowing you to solve for unknown currents and voltages efficiently.
One practical tip for loop analysis is to label components clearly and consistently. Use a consistent direction for loop currents to avoid sign errors, and double-check your equations against the circuit diagram. For example, if a resistor spans two loops, its voltage drop will appear in both loop equations, but with opposite signs depending on the direction of traversal. This attention to detail ensures accuracy and minimizes errors. Additionally, leverage symmetry in circuits where possible; if two loops are identical, their equations may simplify the overall system.
A common caution in loop analysis is overcomplicating the process. While it’s tempting to include every detail, focus on the essential components that affect loop voltages. For instance, if a voltage source is shared between loops, treat it as a single term in both equations rather than breaking it into smaller components. Another pitfall is ignoring dependent sources, such as voltage-controlled voltage sources, which require additional equations to account for their behavior. Always ensure your system of equations is complete and consistent with the circuit’s physical characteristics.
In conclusion, loop analysis is a powerful application of Kirchhoff’s Voltage Law, transforming complex circuits into manageable systems of equations. By systematically applying KVL to each loop, labeling components clearly, and avoiding common pitfalls, you can solve for unknowns with precision. Whether you’re designing a power supply or troubleshooting a circuit, mastering loop analysis will enhance your ability to analyze and optimize electrical systems. Practice with varied circuits to build intuition, and soon, this method will become second nature.
Understanding F.R.O.G. in Law: Meaning, Application, and Legal Significance
You may want to see also
Explore related products
Voltage Drop vs Rise
Kirchhoff's Voltage Law (KVL) states that the sum of voltages around any closed loop in a circuit is zero. This principle hinges on understanding voltage drop and voltage rise, two phenomena that are fundamentally interconnected yet distinct in their roles within a circuit.
Voltage drop occurs when electrical potential energy decreases as current flows through a resistive element, such as a resistor, lamp, or even a wire with resistance. For instance, in a simple series circuit with a 12V battery and three resistors, the voltage across each resistor represents a drop in potential. If the first resistor drops 4V, the second 5V, and the third 3V, the sum of these drops equals the battery’s voltage, illustrating KVL. Practically, excessive voltage drop can lead to underperformance in devices; for example, a 12V LED strip may dim if the wiring drops more than 1V due to high resistance.
Conversely, voltage rise occurs at energy sources, such as batteries or power supplies, where electrical potential increases. In the same series circuit, the 12V battery acts as the voltage rise, counterbalancing the cumulative drops across the resistors. This rise is essential for maintaining current flow, as it replenishes the energy lost in the circuit. Without a voltage rise, no current would circulate, rendering the circuit inactive.
A critical takeaway is that voltage drop and rise are not opposing forces but complementary aspects of KVL. Every rise in one part of the circuit must be matched by an equivalent total drop elsewhere to satisfy the law. For example, in a parallel circuit, each branch may have different voltage drops, but the voltage rise from the source remains constant across all branches, ensuring KVL holds true.
To apply this knowledge, consider these practical tips: When designing circuits, calculate total resistance to minimize unnecessary voltage drops, especially in long wires or high-current paths. Use thicker wires (lower gauge numbers) to reduce resistance and voltage drop. For complex circuits, trace the path of current and tally voltage drops and rises to verify compliance with KVL. This approach ensures efficiency and reliability in electrical systems.
Excluded by In-Laws: Secret Trip Planning and Family Dynamics
You may want to see also
Frequently asked questions
Kirchhoff's Voltage Law states that the algebraic sum of all voltages (or potential differences) around any closed loop in a circuit is equal to zero.
Yes, Kirchhoff's Voltage Law applies to both DC (direct current) and AC (alternating current) circuits, as it is based on the conservation of energy.
Yes, Kirchhoff's Voltage Law remains valid for circuits with time-varying magnetic fields, but it must be applied in conjunction with Faraday's law of induction to account for induced voltages.
Yes, Kirchhoff's Voltage Law can be applied to circuits with dependent sources, as it is a fundamental principle that holds true regardless of the type of voltage sources in the circuit.
Yes, Kirchhoff's Voltage Law is a direct consequence of the conservation of energy. It ensures that the total energy supplied by voltage sources in a closed loop equals the total energy dissipated or stored in the circuit.
