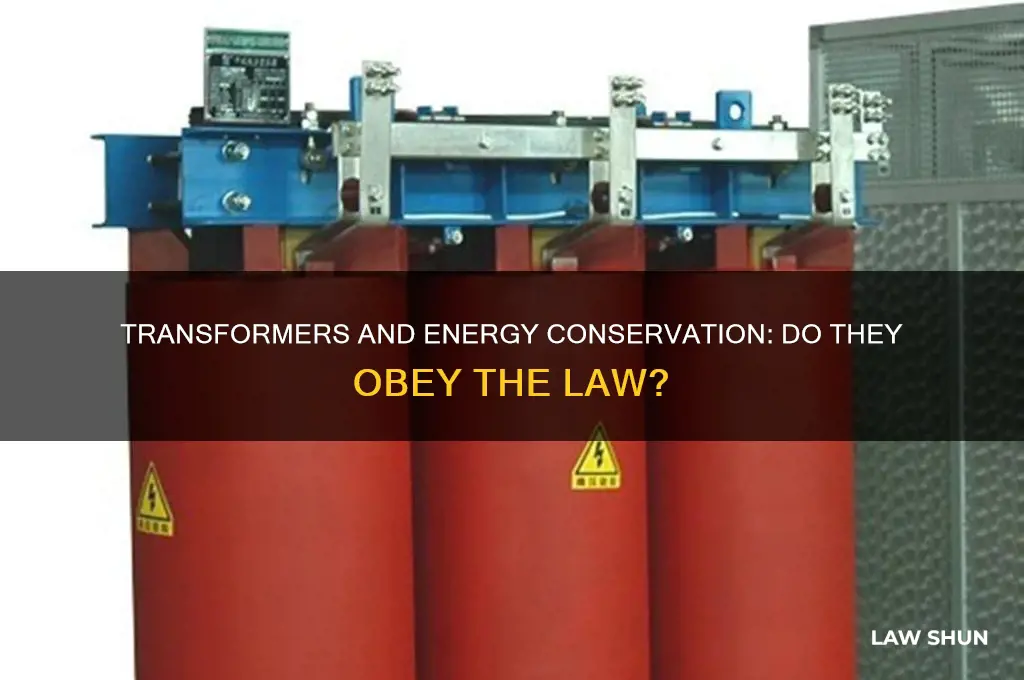

The question of whether a transformer obeys the law of conservation of energy is a fundamental one in electrical engineering and physics. Transformers are devices that transfer electrical energy between different voltage levels through electromagnetic induction, and their operation is governed by the principles of energy conservation. According to the law of conservation of energy, energy cannot be created or destroyed, only converted from one form to another. In the case of transformers, electrical energy input to the primary coil is converted into magnetic energy in the core, which is then reconverted into electrical energy in the secondary coil. While transformers are highly efficient, with minimal energy loss due to factors like resistance and hysteresis, the total energy input and output must balance, adhering to the law of conservation of energy. Thus, transformers inherently operate within this principle, ensuring that the energy entering the system equals the energy leaving it, minus any losses.
| Characteristics | Values |
|---|---|
| Energy Conservation | Transformers obey the law of conservation of energy. The input electrical energy (primary side) is equal to the output electrical energy (secondary side), minus any losses. |
| Efficiency | Typically 90-99%, depending on design, size, and load conditions. Losses occur due to core (hysteresis, eddy currents) and copper (resistive heating in windings). |
| Energy Transformation | Electrical energy is transformed from one voltage level to another with minimal loss, adhering to energy conservation principles. |
| Power Balance | Input power (primary) ≈ Output power (secondary) + Losses (core, copper, stray). Mathematically: ( P_ = P_ + P_ ). |
| Ideal Transformer | In an ideal transformer (no losses), input power equals output power, perfectly obeying conservation of energy: ( V_p I_p = V_s I_s ). |
| Real-World Deviations | Small deviations from ideal behavior due to core saturation, leakage flux, and resistive heating, but energy is still conserved in the overall system. |
| Applications | Widely used in power distribution, electronics, and industrial systems, where energy conservation is critical for efficiency and cost-effectiveness. |
Explore related products
What You'll Learn
Transformer Efficiency and Energy Losses
Transformers are fundamental components in electrical power systems, designed to transfer electrical energy between different voltage levels while maintaining the principle of energy conservation. According to the law of conservation of energy, energy cannot be created or destroyed, only converted from one form to another. In the context of transformers, this means that the electrical energy input to the primary winding should theoretically equal the energy output from the secondary winding. However, in practical scenarios, transformers experience energy losses, which reduce their overall efficiency. Understanding these losses is crucial for optimizing transformer performance and minimizing energy wastage.
The efficiency of a transformer is defined as the ratio of output power to input power, expressed as a percentage. An ideal transformer would have 100% efficiency, but real-world transformers always have some degree of energy loss. These losses can be categorized into two main types: core losses and copper losses. Core losses, also known as iron losses, occur in the transformer's magnetic core and are primarily due to hysteresis and eddy currents. Hysteresis losses result from the reversal of magnetization in the core material, while eddy currents are induced circulating currents that dissipate energy as heat. Core losses are dependent on the frequency of operation and the properties of the core material, such as its hysteresis loop and electrical resistivity.
Copper losses, on the other hand, occur in the transformer's windings due to the resistance of the copper wire. As current flows through the windings, it encounters resistance, leading to energy dissipation in the form of heat. These losses are proportional to the square of the current and the resistance of the windings. Copper losses can be minimized by using thicker wires or materials with lower resistivity, but this often comes at the expense of increased size and cost. Additionally, transformers experience stray losses, which include minor energy dissipations due to leakage flux, dielectric losses in insulating materials, and mechanical vibrations.
Despite these losses, transformers still obey the law of conservation of energy. The total energy input to the transformer is accounted for in the sum of the output energy and the energy lost as heat. For example, if a transformer has an input power of 1000 watts and an output power of 950 watts, the remaining 50 watts are dissipated as losses. This demonstrates that energy is conserved, even though the transformer's efficiency is less than 100%. Engineers aim to design transformers with minimal losses to maximize efficiency, typically achieving values between 95% and 99% for well-designed units.
To improve transformer efficiency, several strategies can be employed. Using high-quality core materials with low hysteresis and eddy current losses, such as silicon steel, can reduce core losses. Employing larger conductors or materials with lower resistivity can minimize copper losses. Additionally, optimizing the transformer's design, such as reducing leakage flux and improving cooling mechanisms, can further enhance efficiency. Regular maintenance and monitoring of transformers are also essential to ensure they operate at their highest possible efficiency, thereby conserving energy and reducing operational costs.
In conclusion, while transformers do not achieve 100% efficiency due to inherent energy losses, they strictly adhere to the law of conservation of energy. By understanding and mitigating core losses, copper losses, and stray losses, engineers can design transformers that operate with high efficiency, ensuring minimal energy wastage. This not only aligns with the principles of physics but also contributes to more sustainable and cost-effective electrical power systems.
